3. Head Gasket

The thickness of the standard parts is 0.60mm.

These parts are used to adjust the squish height. In normal cases, use the one with -76

(0.45mm). After processing the cylinder (upper case), make sure to check the squish height

and use the gasket so that the squish height becomes 0.60mm or above.

TIP

Squish height means the gap between the flat portion of the piston and the head

cylinder.

Parts List

No. PART No. PART NAME Q'TY REMARKS

1 2C0-11181-71 GASKET, CYLINDER HEAD 1 t=0.40mm

2 2C0-11181-76 GASKET, CYLINDER HEAD 1 t=0.45mm

3 2C0-11181-81 GASKET, CYLINDER HEAD 1 t=0.50mm

4 2C0-11181-86 GASKET, CYLINDER HEAD 1 t=0.55mm

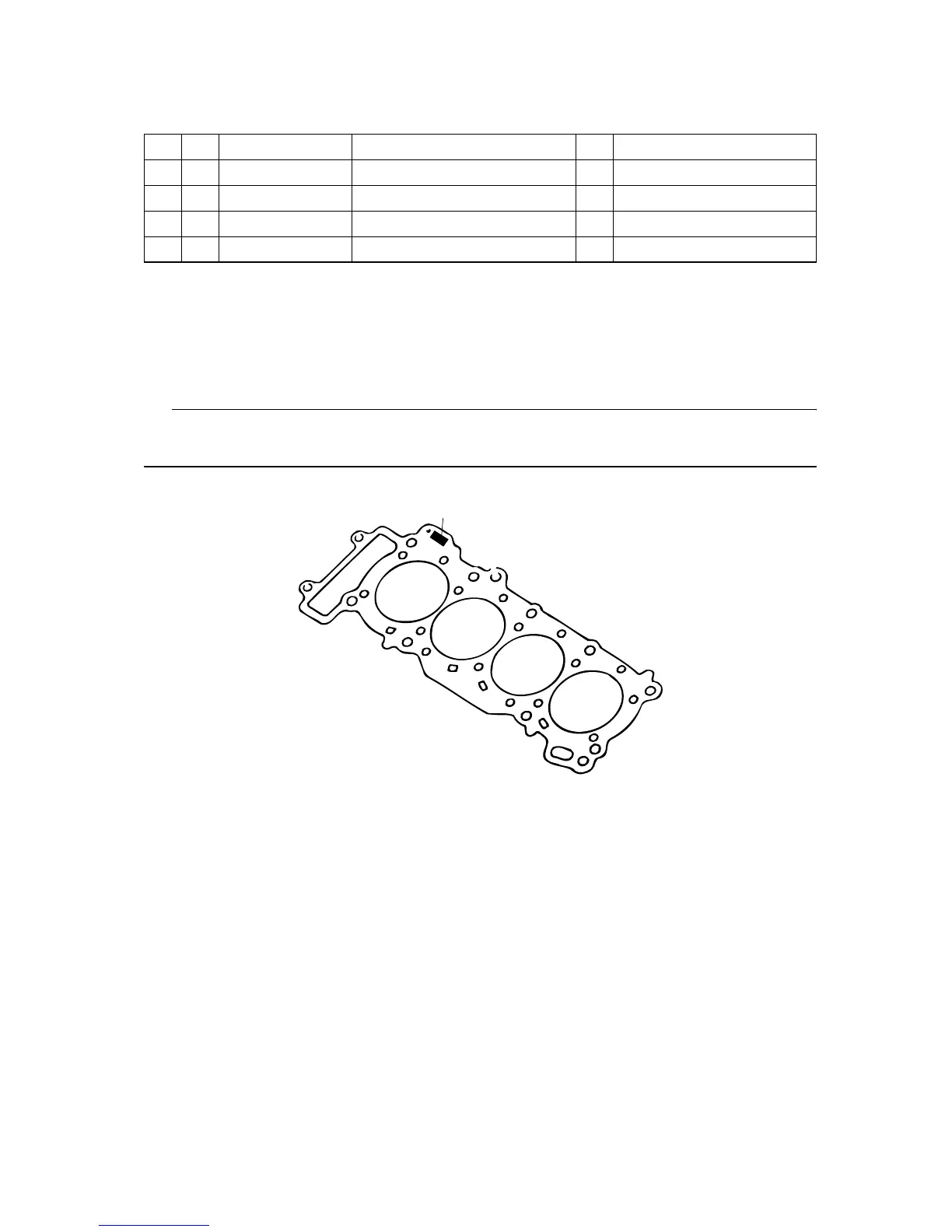

Stamping location
