Yamaha 2010 YZF-R6 User Manual

– 43 –
27. Rear Suspension
Rear Suspension Performance Adjustment Method
Low-speed compression damping, high-speed compression damping, rebound damping and
preload can be adjusted.
Preload Adjustment Method
Turn the adjustor clockwise to increase the preload
and anticlockwise to reduce the preload.
The adjustment range is 8mm (in steps of 1mm)
Shipping position: Tightened 4 steps from the
preload minimum position (fifth
step)
Parts List
No. PART No. PART NAME Q'TY REMARKS

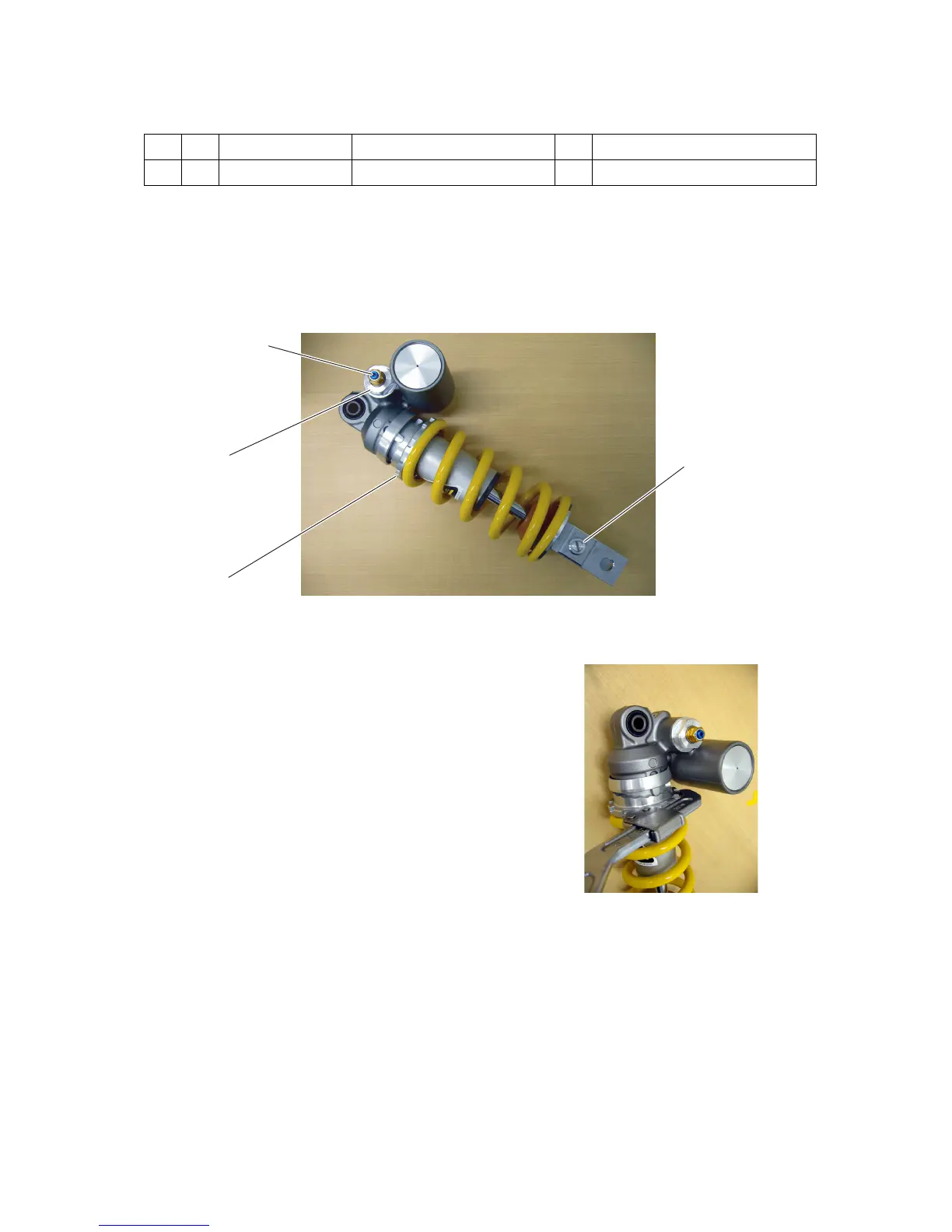

1 13S-22210-71 SHOCK ABSORBER, Rr. 1 98 N/mm
Low-speed
compression
damping adjustor
(bolt width 4mm,
hexagonal hole)
High-speed
compression
damping adjustor
(bolt width 12mm,
hexagonal)
Rebound damping
adjustor
Preload adjustor

Yamaha 2010 YZF-R6 Specifications

General

Bore x Stroke	67.0mm x 42.5mm
Compression Ratio	13.1:1
Fuel Delivery	Fuel Injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Length	80.3 in
Width	27.8 in
Height	43.1 in
Seat Height	33.5 in
Wheelbase	54.1 in
Fuel Capacity	4.5 gal
Wet Weight	417 lb
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41 mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm disc; radial-mount 4-piston calipers
