10. Air Funnel Set (MGC-A300908-10)
• This set is capable of higher intake efficiency than the STD counterpart.
Fitting Method

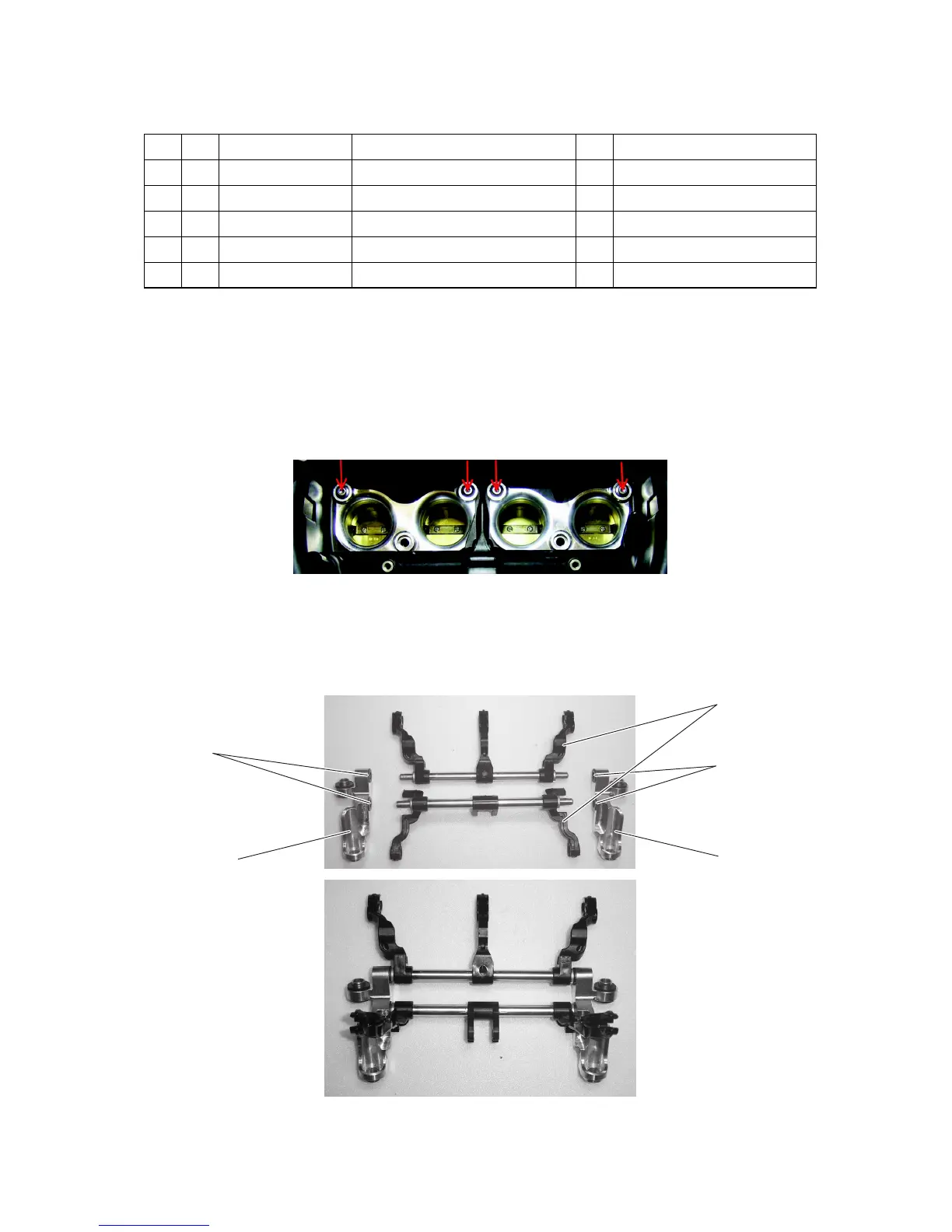

1. Installing the Primary Funnel
Screw on the plates on the throttle body. Put only the 2 lower screw like on the schema. Use
standard screw.
2. Assemble Support and Axle
The axles are the standards ones; don’t forget to put the small ring into the hole.
*Use the lever and bushing intended for a STD machine.
Parts List
No. PART No. PART NAME Q'TY REMARKS
1 PRIMARY FUNNEL 2 L=15.9mm
2 SUPPORT L 1
3 SUPPORT R 1
4 EXTENSION FUNNEL R 2
5 EXTENSION FUNNEL L 2
Bush*
Bush*
Lever*
Support R Support L
Lever assembly

Yamaha 2010 YZF-R6 Specifications

General

Bore x Stroke	67.0mm x 42.5mm
Compression Ratio	13.1:1
Fuel Delivery	Fuel Injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Length	80.3 in
Width	27.8 in
Height	43.1 in
Seat Height	33.5 in
Wheelbase	54.1 in
Fuel Capacity	4.5 gal
Wet Weight	417 lb
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41 mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm disc; radial-mount 4-piston calipers
