Yamaha 2010 YZF-R6 User Manual

– 10 –

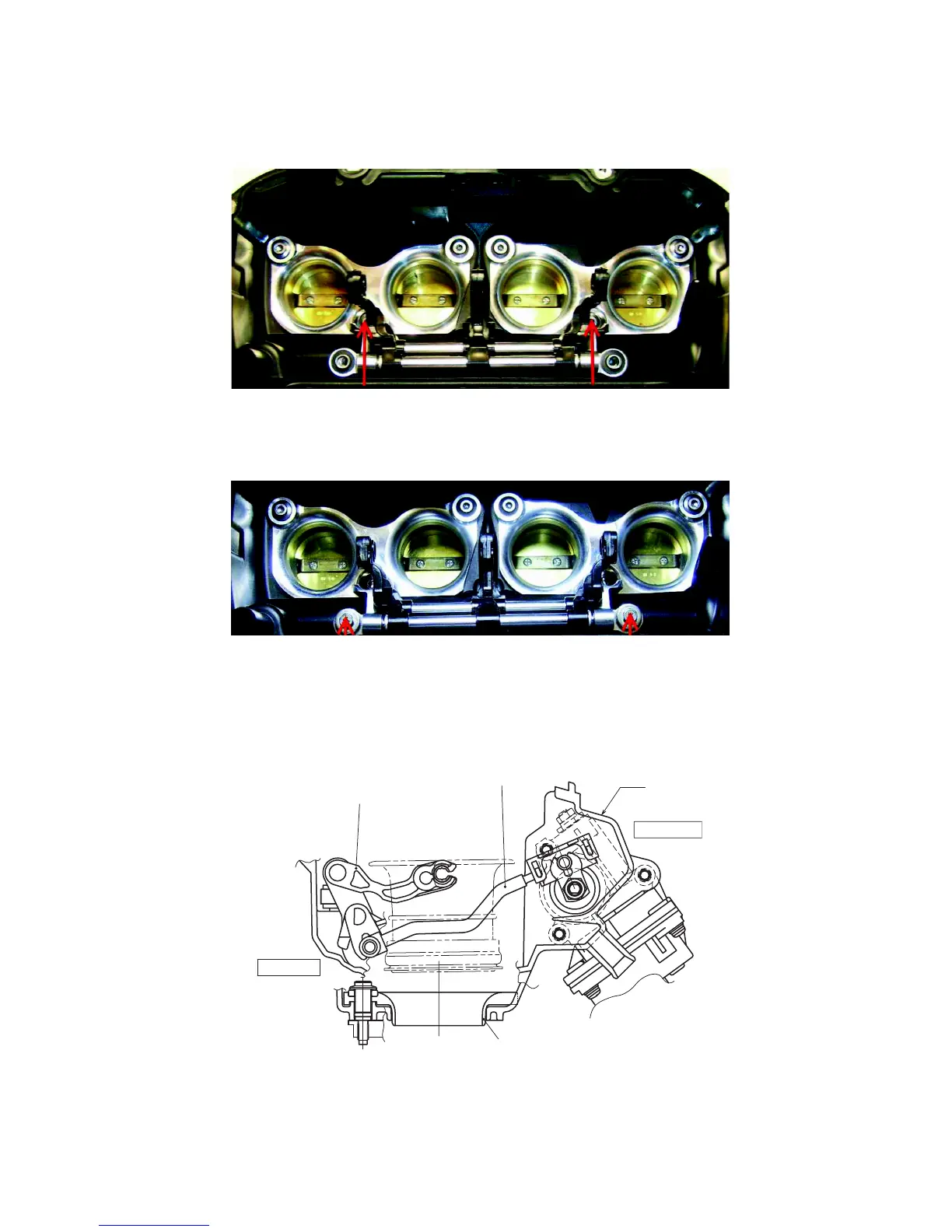

3. Mount the Assembly
Secure the lever assembly to the primary funnel.
Secure using standard screws in the places illustrated.
Then put the screw on the superior part of the supports (shown by a red arrow on the photo
Below). Make sure that the axle can easily turn without friction.
4. Connecting Rod
Use standard connecting rod. Begin by clipping white prismatic side to the motor axle, then clip
other side to the tong of the inferior axle.
PRIMARY FUNNEL
LEVER ASSY.
Motor side
A/C
SHAFT ASSY.
Lever side

Yamaha 2010 YZF-R6 Specifications

General

Bore x Stroke	67.0mm x 42.5mm
Compression Ratio	13.1:1
Fuel Delivery	Fuel Injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Length	80.3 in
Width	27.8 in
Height	43.1 in
Seat Height	33.5 in
Wheelbase	54.1 in
Fuel Capacity	4.5 gal
Wet Weight	417 lb
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41 mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm disc; radial-mount 4-piston calipers
