Yamaha 2010 YZF-R6 User Manual

– 26 –

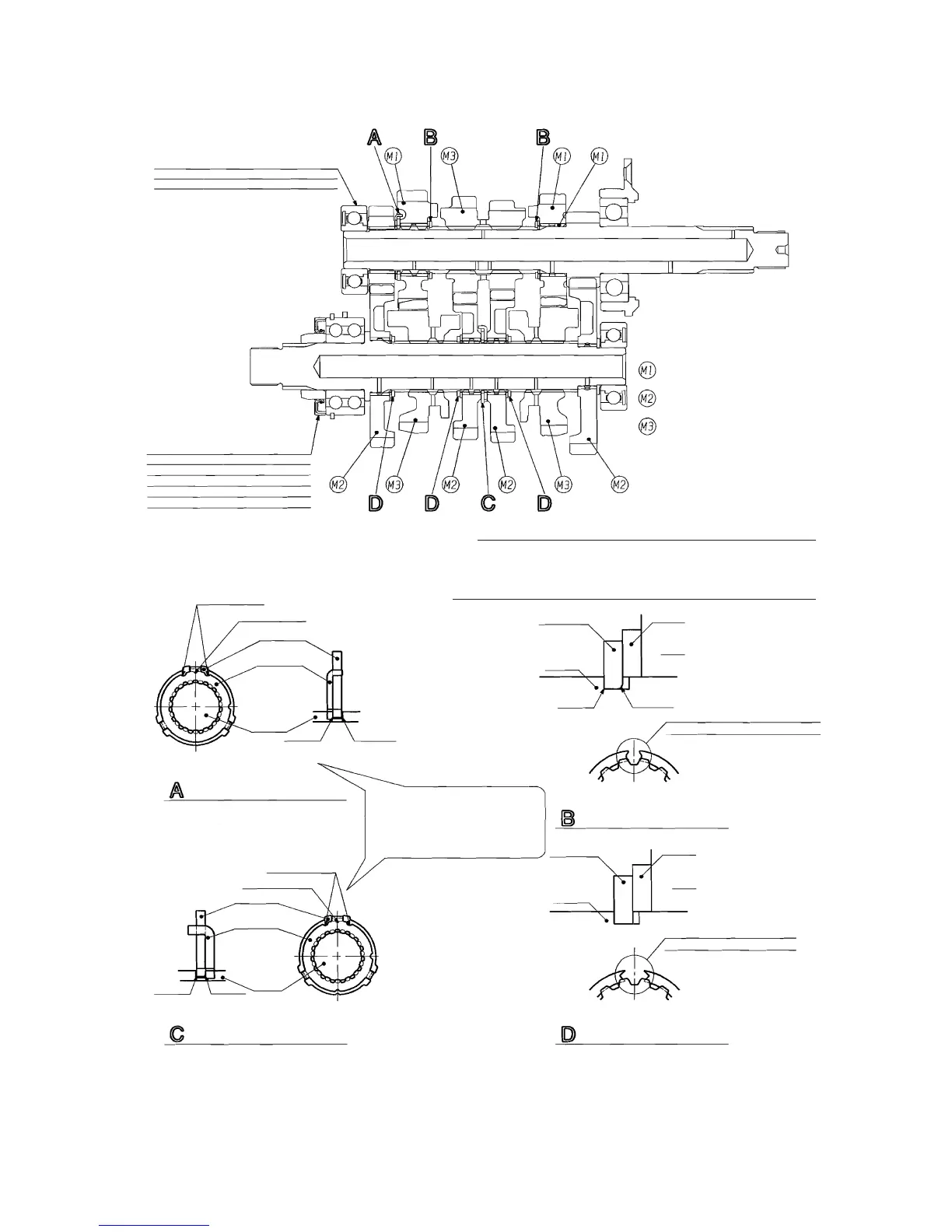

Transmission Assembly
Position the abutment joint of the circlip
right between the splines.
Circlip
Shaft
Edge Portion R
Edge
Detail of installation of washer
Detail of installation of washer
Shaft
Washer
Washer
Matching mark
Matching mark
Portion R
Washer
Gear
The seal side should face outward (one side
seal bearing) and press in the bearing cup all
the way into the case until it touches bottom.
Points to be careful of the oil seal assembly
The convex part on the oil seal should be
put into the case groove vertically so that
the oil seal does not fall over and is tightly
fit into the bearing cup of the bearing.
(Apply grease to the lip.)
Detail of installation of circlip
Detail of installation of circlip
Edge
Shaft
Washer
Washer
Matching mark
Matching mark
Portion R
Circlip
(Direction
not applicable)
Shaft
Washer
Gear
Position the abutment joint of the
circlip right between the splines.
Apply molybdenum oil to inside of diameter.
After assembly, it should rotate smoothly.
Apply molybdenum oil to the inside diameter
and end. After assembly, it should rotate
smoothly.
Apply molybdenum oil to teeth of spline.
After assembly, it should slide smoothly.
TIP
• Always use a new circlip.
• Do not mistake the washer and circlip directions.
(See drawing below.)
Rotate washer so that its teeth meet axle-
spline teeth on the axle, and then lock with
washers claw.
Assemble washer with putting together
their matching mark.

Yamaha 2010 YZF-R6 Specifications

General

Bore x Stroke	67.0mm x 42.5mm
Compression Ratio	13.1:1
Fuel Delivery	Fuel Injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Length	80.3 in
Width	27.8 in
Height	43.1 in
Seat Height	33.5 in
Wheelbase	54.1 in
Fuel Capacity	4.5 gal
Wet Weight	417 lb
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41 mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm disc; radial-mount 4-piston calipers
