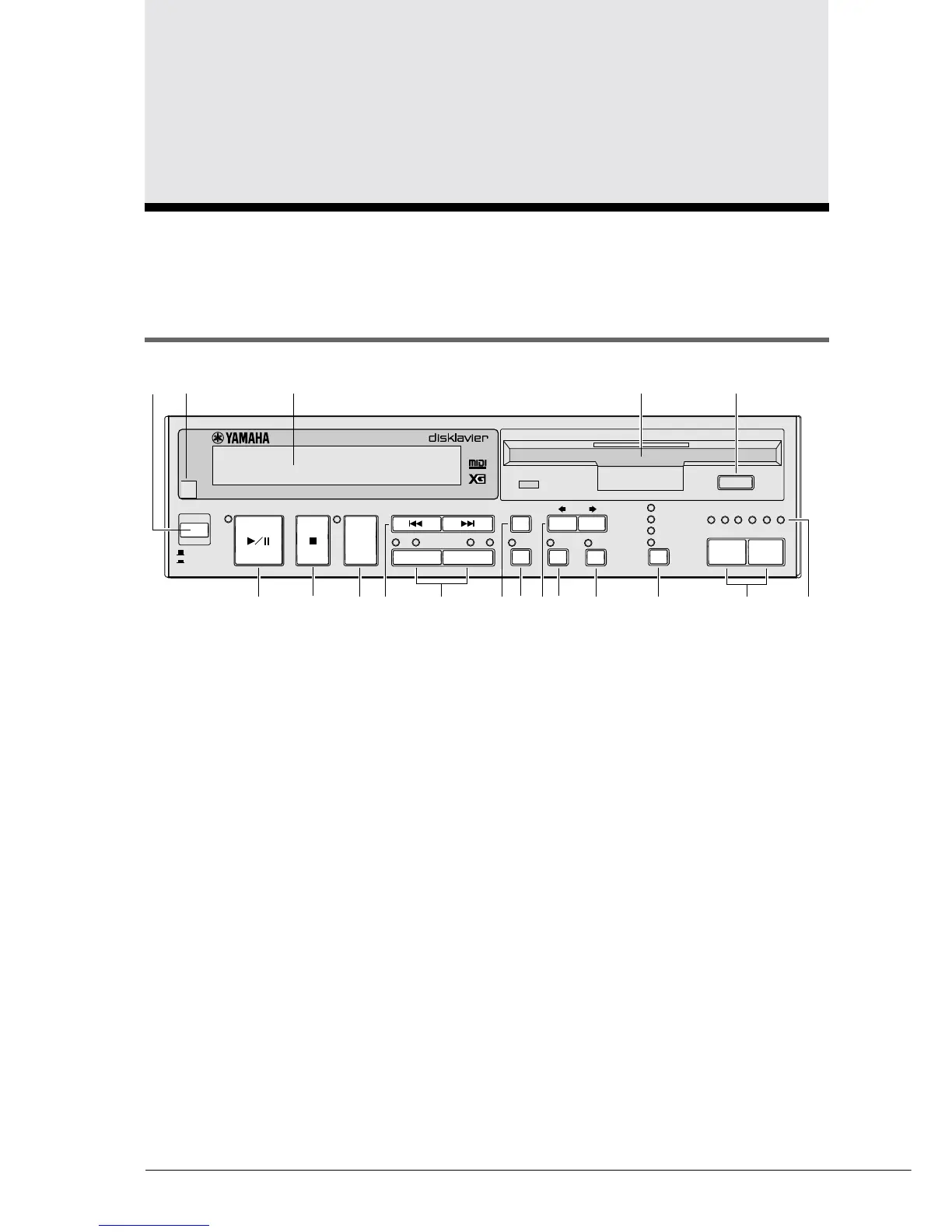

Control Unit — Front Panel
1 [STANDBY / ON] button
Turns on the Disklavier or puts it in Standby
mode. Press once to turn it on, and once again to
put it in Standby mode.
Note: In Standby mode, the Control Unit is in effect
turned off. However, electrically it is in a state
in which a very small quantity of power is
being consumed, as the MAINS switch is still
on and the Disklavier is still connected to the
AC power receptacle.
2 Remote control sensor
When using the remote control, point it toward
this sensor.
3 Display (LCD)
Shows various information.
4 Floppy disk drive
Insert a floppy disk such as a PianoSoft or
PianoSoft
.
Plus song disk here.
5 Floppy disk eject button
Used to eject the disk from the floppy disk drive.
6 [PLAY/PAUSE] button
Used to start and pause playback.
7 [STOP] button
Used to stop playback.
8 [DRIVE] button
Used to select a disk. Toggles the floppy disk and
Memory Disks (0 ~ 9 and A ~ F).
9 [SONG SELECT/REV
•
FWD] buttons
In Stop mode: Used to select songs.
In Play mode: Used to fast preview and review.
In Pause mode: Used to fast forward and reverse.
0 PART [L] [R] buttons
For L/R and Ensemble songs, these buttons allow
you to choose which part to play back: L (left-
hand) part, R (right-hand) part, or both.
Press both buttons together to turn pedal playback
on or off so that you can play the pedals yourself.
