Yamaha Disklavier - Amplifier, Speakers & Foot Controller

6
Amplifier, Speakers & Foot Controller
6 BASS knob
Used to adjust the bass sound of the built-in
speakers.
7 TREBLE knob
Used to adjust the treble sound of the built-in
speakers.
8 Foot Controller connector
Connect the optional YAMAHA FC-4, FC-5 or
FC-7 foot controller here.
9 Amplified speakers
Amplified speakers are mounted to the underside
of the piano.
1 AC LINE INLET
Connect the AC power cable here.
2 MAINS (ON/OFF) switch
Press to switch on/off the Disklavier.
3 AUX OUT L/L+R, R
Used to connect external audio equipment.
4 AUX IN L/L+R, R
Used to connect external audio equipment.
5 VOLUME knob
Used to adjust the volume of the on-board
speakers and the sound output from the AUX
OUT connectors.

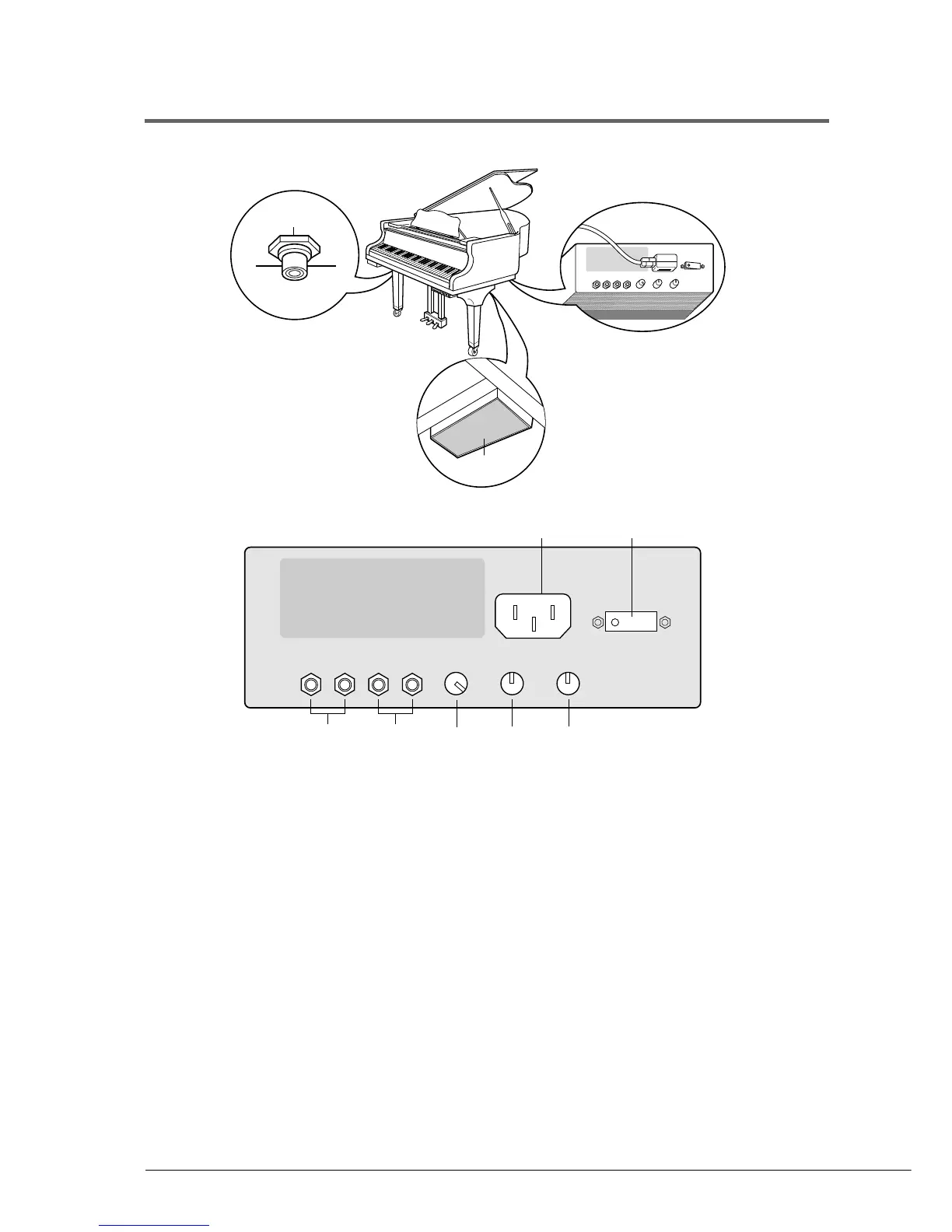

Amplifier Panel
8
Foot Controller connector
Mounted underneath
Mounted underneath
Mounted underneath
Amplifier
(see illustration below)
VOLUMEAUX OUT
L/L+R R RL/L+R
AUX IN BASS TREBLE
MAINS
9
VOLUMEAUX OUT
L/L+R R RL/L+R
AUX IN BASS TREBLE
MAINS
1
2
3
4
56
7
