5-34
E
POWR

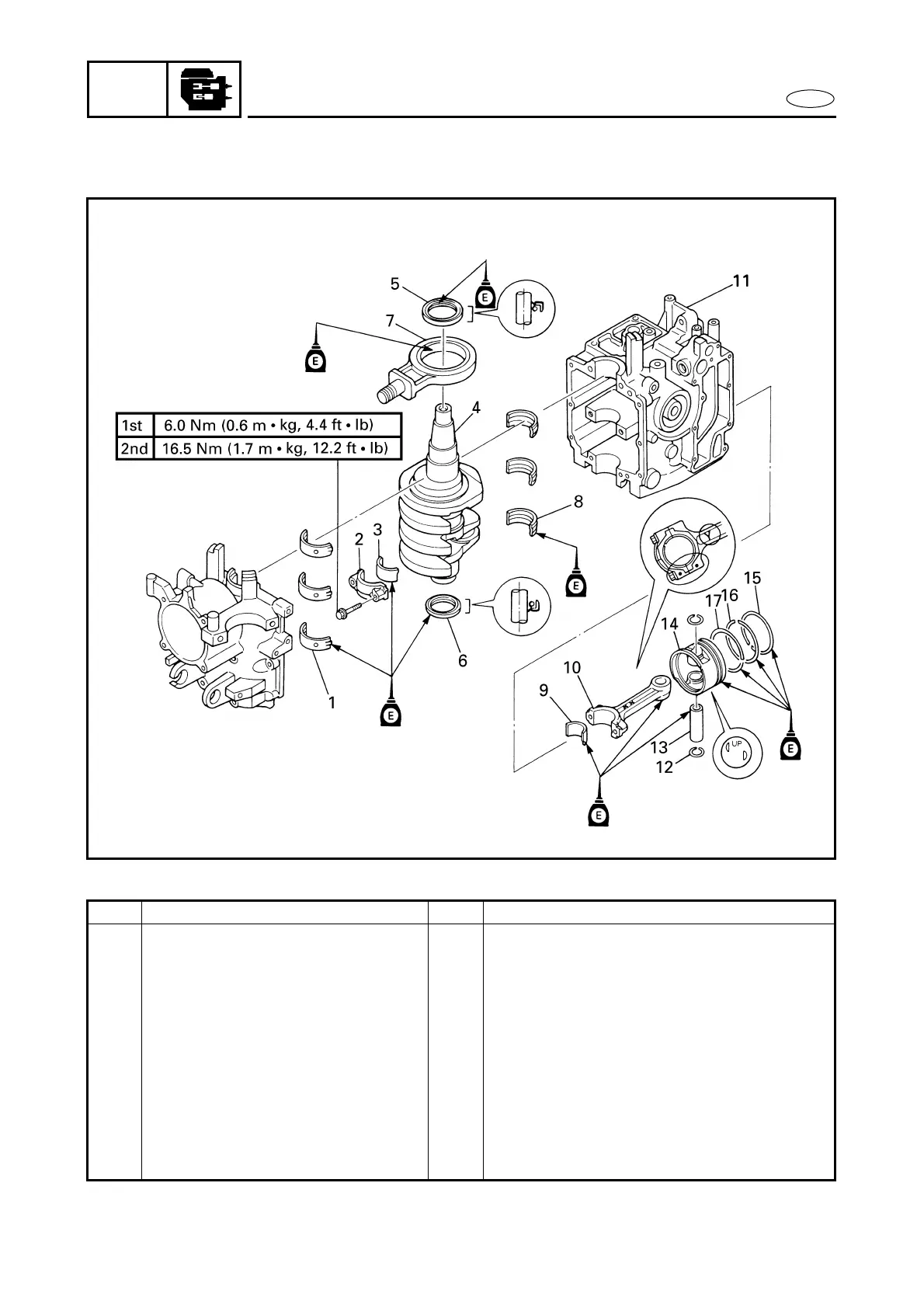

CRANKCASE, CRANKSHAFT ASSY., AND
CYLINDER BODY
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
CRANKSHAFT ASSY. REMOVAL
Follow the left “Step” for removal.
1
Main bearing
3
2
Connecting rod cap
2
3
Big end bearing
2
4
Crankshaft
1
5
Oil seal
1
6
Oil seal
1
7
Balancer rod
1
8
Main bearing
3
9
Big end bearing
2
10
Connecting rod
2
183
185
