Periodic maintenance and adjustment
8-27
8
EAU23098
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Damage to the
outer housing of cables may result
in internal rusting and cause inter-
ference with cable movement. Re-
place damaged cables as soon as
possible to prevent unsafe condi-
tions.
[EWA10712]
EAU23115
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from wa-
ter entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
EAU23173
Lubricating the front and rear
brake levers

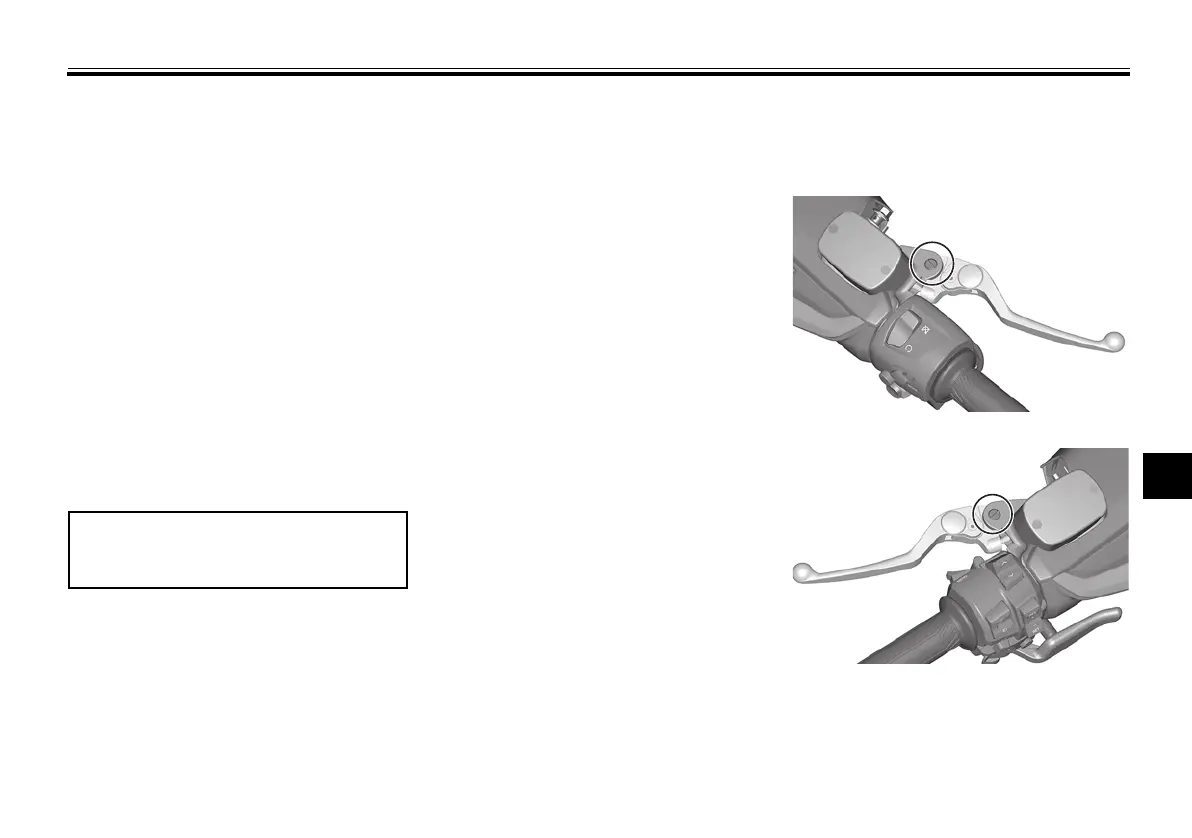

Front brake lever
Rear brake lever
The pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main-
tenance and lubrication chart.
Recommended lubricant:
Yamaha cable lubricant or other
suitable cable lubricant
UB3TE0E0.book Page 27 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
