Yamaha TMAX TECH MAX User Manual

Smart key system
3-5
3
TIP
 You can register up to six smart
keys for the same vehicle. See a
Yamaha dealer regarding spare
smart keys.
 If a smart key is lost, contact a
Yamaha dealer immediately to
prevent the vehicle from being
stolen.
EAU77223
Smart key
When the smart key is turned on and
brought within range, the smart key
system allows you to operate the vehi-
cle without inserting a mechanical key.
If the smart key is turned off, the vehi-
cle cannot be operated even if the
smart key is within operating range of
the vehicle.
The current status of the key can be
checked by briefly pressing the
“ON/OFF” switch.
 Short flash: the key is on
 Long flash: the key is off
To turn the smart key on or off
To turn the smart key on or off, press
the “ON/OFF” switch for one second.
The smart key indicator light will flash.
If the key does a short flash, the key is
on. If the key does a long flash, the key
is off.
TIP
To preserve the vehicle battery power,
the smart key system will turn off auto-
matically about a week after the vehicle
is last used. In this case, press the
“ON/ ” switch once to turn on the
smart key system, and then once more
to turn on the vehicle power.
To use the mechanical key
Pull out the mechanical key from the
smart key body. After using the me-
chanical key, insert it back into the
smart key.

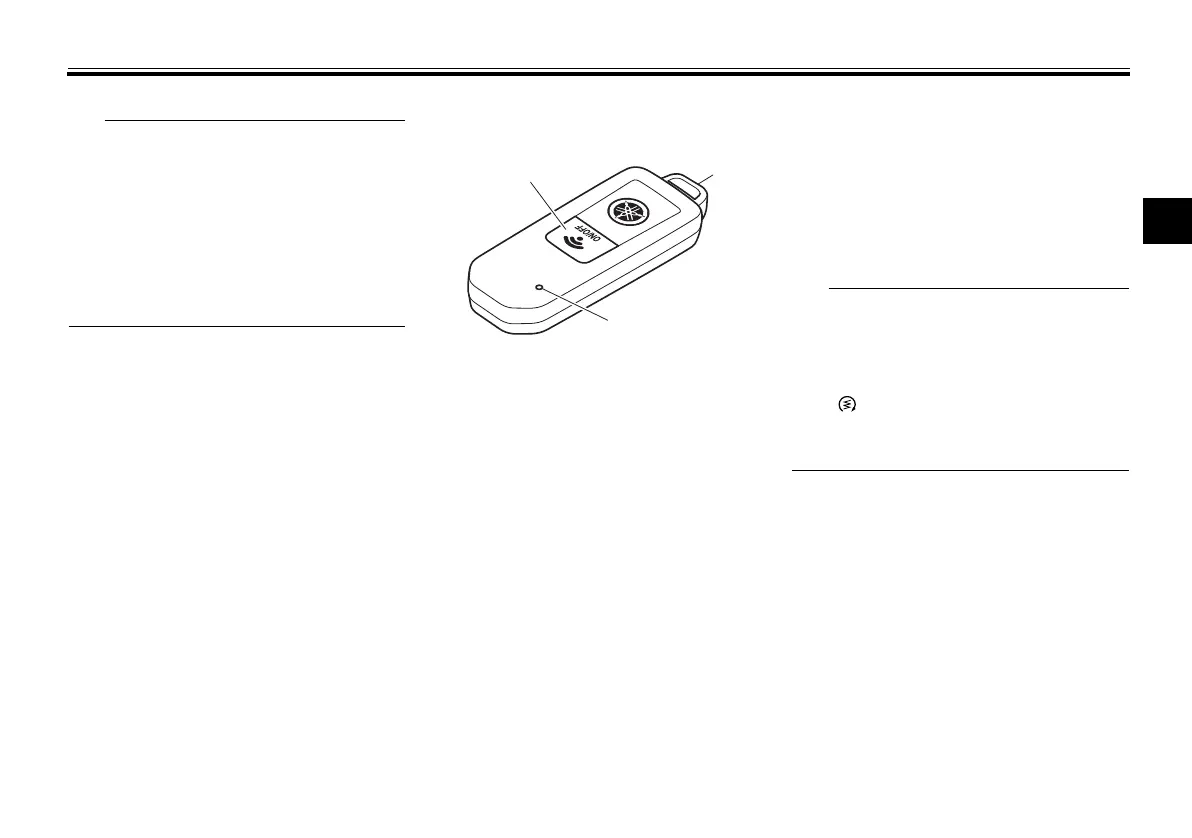

1. “ON/OFF” switch
2. Smart key indicator light
3. Mechanical key
1
2
3
UB3TE0E0.book Page 5 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
