Periodic maintenance and adjustment
8-30
8
EAU23292
Checking the wheel bearings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
EAU77780
Battery
The battery is located under panel B.
(See page 8-9.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to
be checked and, if necessary, tight-
ened.
WARNING
EWA10761
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the

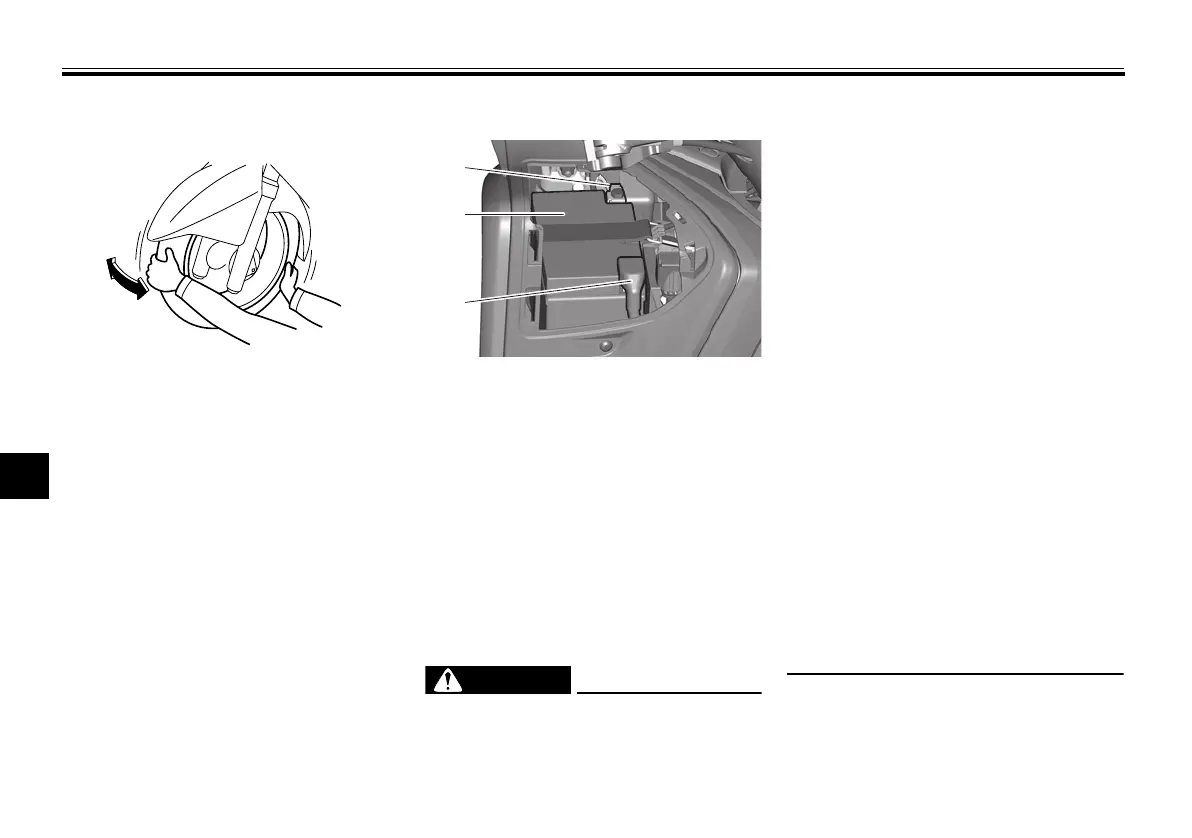

1. Negative battery lead (black)
2. Battery
3. Positive battery lead (red)
UB3TE0E0.book Page 30 Tuesday, September 17, 2019 9:35 AM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha TMAX TECH MAX and is the answer not in the manual?

Yamaha TMAX TECH MAX Specifications

General IconGeneral
Engine TypeLiquid-cooled, 4-stroke, DOHC, 4-valves
Displacement562cc
Bore x Stroke70.0 mm x 73.0 mm
Compression Ratio10.9:1
Fuel SystemFuel Injection
TransmissionV-Belt Automatic
Front SuspensionTelescopic forks
Rear SuspensionSwingarm
Front BrakeHydraulic dual disc, Ø267 mm
Rear BrakeHydraulic single disc, Ø282 mm
Overall Length2, 200 mm
Overall Width765 mm
Seat Height800 mm
Wheelbase1, 575 mm
Wet Weight220 kg
Fuel Tank Capacity15 litres
Lubrication SystemWet sump
Ignition SystemTCI
Starter SystemElectric
Front Suspension Travel120 mm
Rear Suspension Travel117 mm
Minimum Ground Clearance135 mm
Maximum Torque55.7 Nm @ 5, 250 rpm
Front Tyre120/70R15
Rear Tyre160/60R15
Overall Height1, 420 mm - 1, 555 mm (adjustable windscreen)
