Periodic maintenance and adjustment
8-34
8
EAU80380
Vehicle lights
Except for the license plate light bulb,
this model’s lights are all LED.
If an LED light does not come on,
check the fuses and then have a
Yamaha dealer check the vehicle. If the
license plate light does not come on,
check and replace the bulb. (See page
8-34.)
NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.
EAU81491
Replacing the license plate
light bulb
1. Remove the nuts securing the li-
cense plate light unit.
2. Pull the license plate light unit sep-
arate from the rear fender. (Rein-
stall the collars if they fall out.)
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket,
and push the socket in place.
5. Install the license plate unit onto
the rear fender.
6. Install the nuts and tighten to the
specified torque.

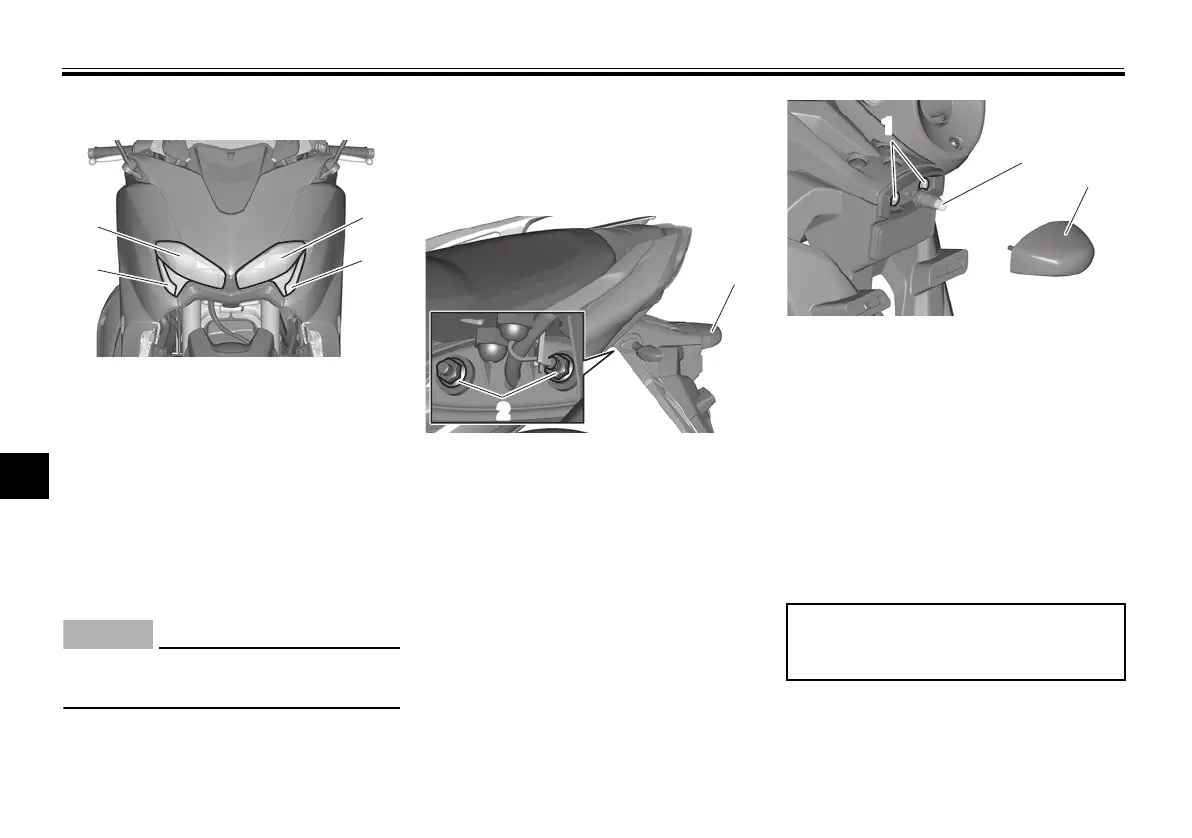

1. Headlight
2. Auxiliary light
1. License plate light unit
2. Nut
1. Collar
2. License plate light bulb
3. License plate light unit
Tightening torque:
License plate light unit nut:
3.8 N·m (0.38 kgf·m, 2.8 lb·ft)
