Periodic maintenance and adjustment
8-22
8
EAU50861

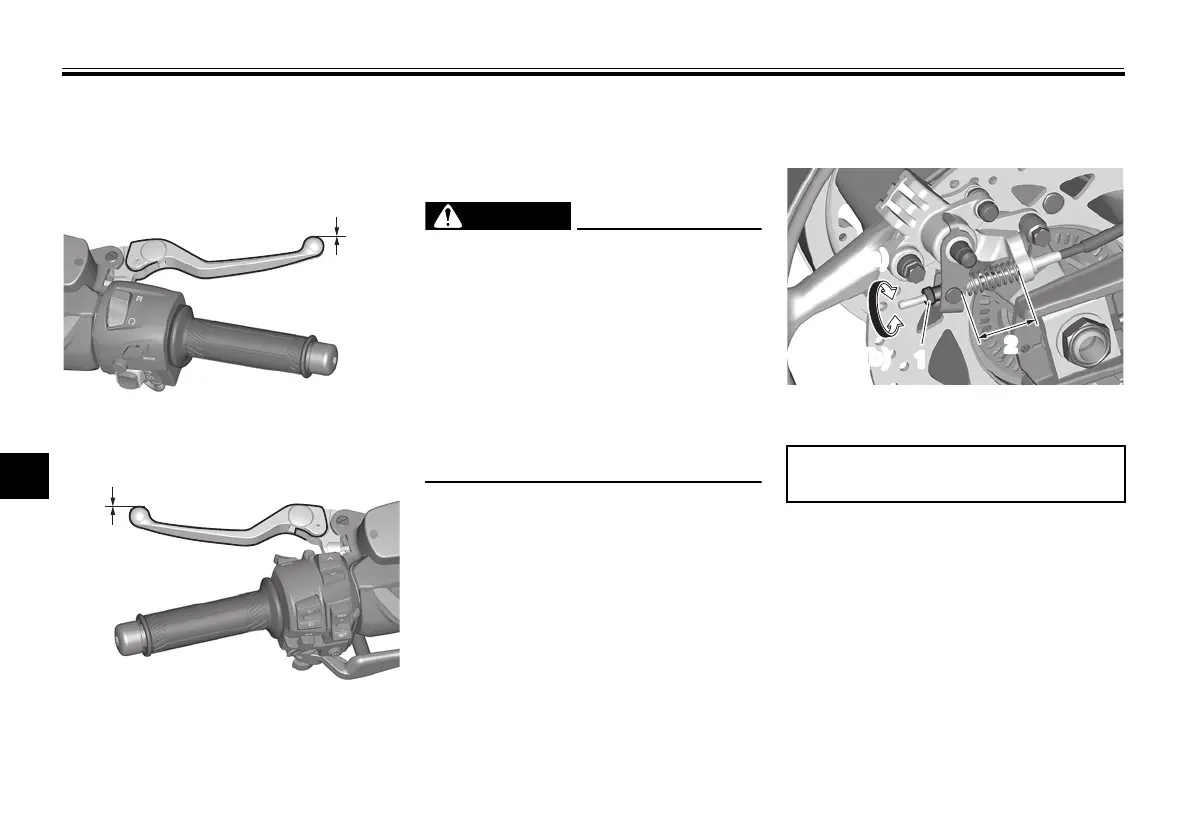

Checking the front and rear
brake lever free play
Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of
air in the hydraulic system. If there is
air in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
dent.
EAU53033
Adjusting the rear brake lock
cable
Periodically check the rear brake lock
cable length and adjust if necessary.
1. Release the rear brake lock lever.
2. To increase the rear brake lock ca-
ble length, turn the adjusting nut at
the rear brake caliper in direction
(a). To decrease the rear brake
lock cable length, turn the adjust-
ing nut in direction (b).
1. No brake lever free play
1. No brake lever free play
1. Adjusting nut
2. Rear brake lock cable length
Rear brake lock cable length:
43–45 mm (1.69–1.77 in)
UB3TE0E0.book Page 22 Tuesday, September 17, 2019 9:35 AM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha TMAX TECH MAX and is the answer not in the manual?

Yamaha TMAX TECH MAX Specifications

General IconGeneral
Engine TypeLiquid-cooled, 4-stroke, DOHC, 4-valves
Displacement562cc
Bore x Stroke70.0 mm x 73.0 mm
Compression Ratio10.9:1
Fuel SystemFuel Injection
TransmissionV-Belt Automatic
Front SuspensionTelescopic forks
Rear SuspensionSwingarm
Front BrakeHydraulic dual disc, Ø267 mm
Rear BrakeHydraulic single disc, Ø282 mm
Overall Length2, 200 mm
Overall Width765 mm
Seat Height800 mm
Wheelbase1, 575 mm
Wet Weight220 kg
Fuel Tank Capacity15 litres
Lubrication SystemWet sump
Ignition SystemTCI
Starter SystemElectric
Front Suspension Travel120 mm
Rear Suspension Travel117 mm
Minimum Ground Clearance135 mm
Maximum Torque55.7 Nm @ 5, 250 rpm
Front Tyre120/70R15
Rear Tyre160/60R15
Overall Height1, 420 mm - 1, 555 mm (adjustable windscreen)
