Instrument and control functions
5-1
5
EAU77490

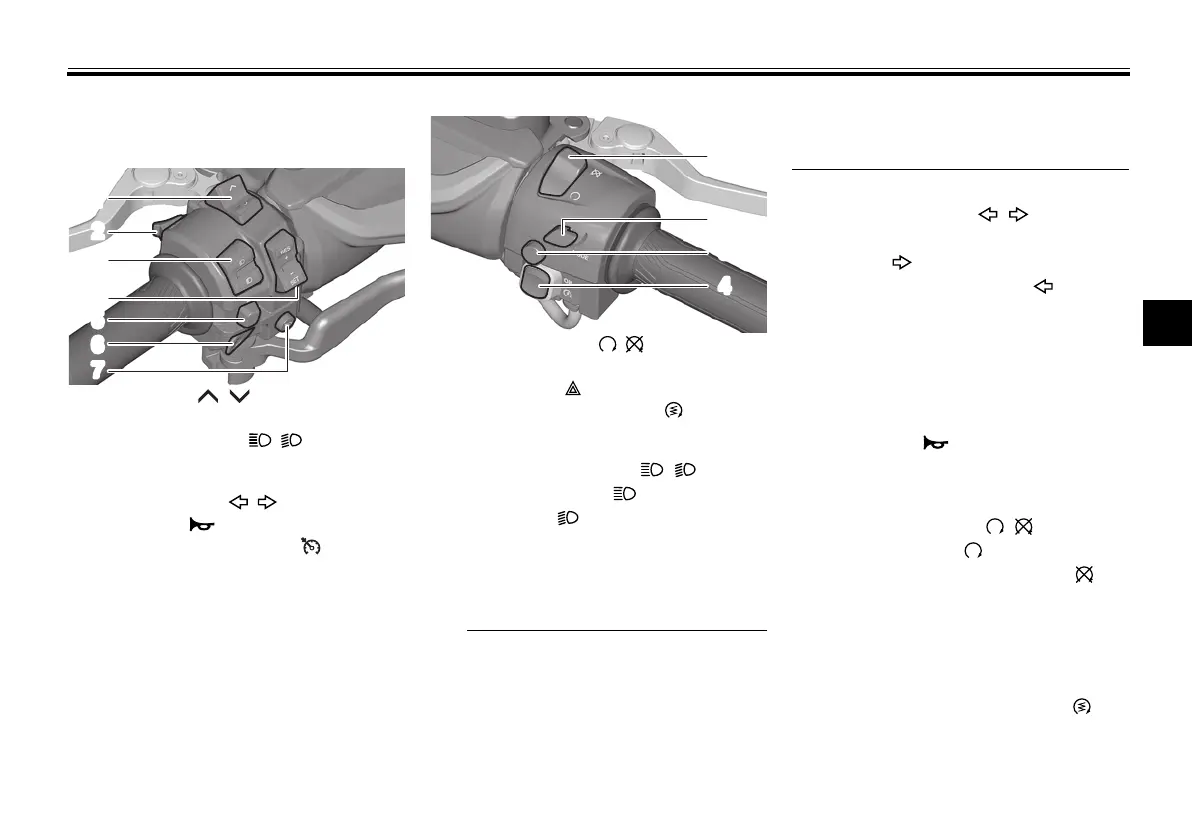

Handlebar switches
Left
Right
EAU88260
Dimmer/Pass switch / /PASS”
Set this switch to ” for the high
beam and to ” for the low beam.
To flash the high beam, press the
switch down to “PASS” while the
headlights are on low beam.
TIP
When the switch is set to low
beam, the inner two headlights
come on.
When the switch is set to high
beam, the outer two headlights
come on.
EAU66040
Turn signal switch /
To signal a right-hand turn, push this
switch to ”. To signal a left-hand
turn, push this switch to ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU66030
Horn switch
Press this switch to sound the horn.
EAU77450
Engine stop switch /
Set this switch to ” before starting
the engine. Set this switch to ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU77291
Power on/Starter switch “ON/
With the smart key turned on and with-
in range, press this switch to turn on
the power to the vehicle. Then with the
1. Select switch /
2. Menu switch “MENU”
3. Dimmer/Pass switch / /PASS
4. Cruise control setting switch “RES+/SET–
(XP560D)
5. Turn signal switch /
6. Horn switch
7. Cruise control power switch ” (XP560D)
1. Engine stop switch /
2. Drive mode switch “MODE”
3. Hazard switch
4. Power on/Starter switch “ON/
UB3TE0E0.book Page 1 Tuesday, September 17, 2019 9:35 AM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha TMAX TECH MAX and is the answer not in the manual?

Yamaha TMAX TECH MAX Specifications

General IconGeneral
Engine TypeLiquid-cooled, 4-stroke, DOHC, 4-valves
Displacement562cc
Bore x Stroke70.0 mm x 73.0 mm
Compression Ratio10.9:1
Fuel SystemFuel Injection
TransmissionV-Belt Automatic
Front SuspensionTelescopic forks
Rear SuspensionSwingarm
Front BrakeHydraulic dual disc, Ø267 mm
Rear BrakeHydraulic single disc, Ø282 mm
Overall Length2, 200 mm
Overall Width765 mm
Seat Height800 mm
Wheelbase1, 575 mm
Wet Weight220 kg
Fuel Tank Capacity15 litres
Lubrication SystemWet sump
Ignition SystemTCI
Starter SystemElectric
Front Suspension Travel120 mm
Rear Suspension Travel117 mm
Minimum Ground Clearance135 mm
Maximum Torque55.7 Nm @ 5, 250 rpm
Front Tyre120/70R15
Rear Tyre160/60R15
Overall Height1, 420 mm - 1, 555 mm (adjustable windscreen)
