Yamaha TMAX TECH MAX User Manual

Periodic maintenance and adjustment
8-17
8
8. Install the coolant reservoir cap.
9. Install the coolant reservoir cover.
10. Install the floorboard mat.
EAU33032
Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic main-
tenance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10382]
EAU88800
Replacing the engine air filter
element and cleaning the
check hose
The engine air filter element should be
replaced at the intervals specified in
the periodic maintenance chart. Re-
place the air filter element more fre-
quently if you often ride in wet or dusty
conditions.
In addition, the air filter check hose
must be checked and cleaned by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To replace the air filter element
1. Remove panel C. (See page 8-9.)
2. Remove the air filter case cover by
removing the screws.
3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never

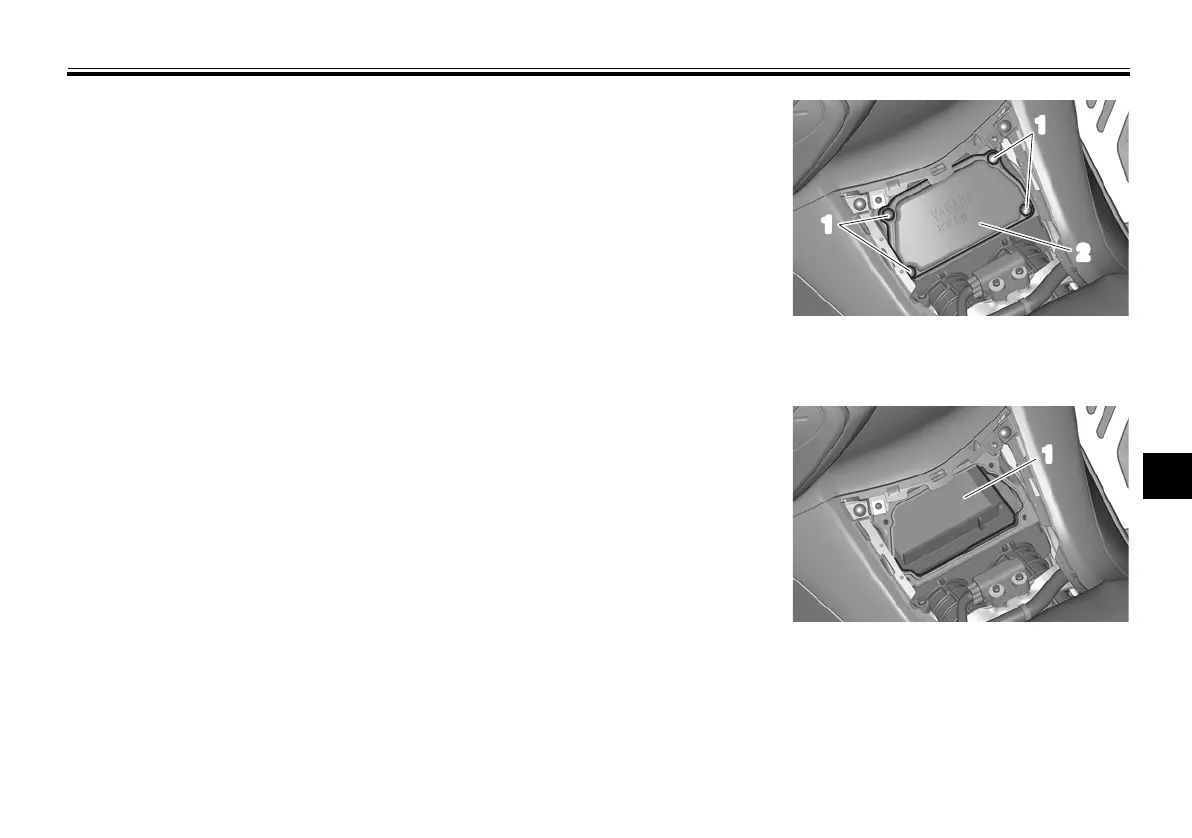

1. Screw
2. Air filter case cover
1. Air filter element
1
1
2
1
UB3TE0E0.book Page 17 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
