Smart key system
3-11
3
EAU81291
Storage compartment and
fuel tank access

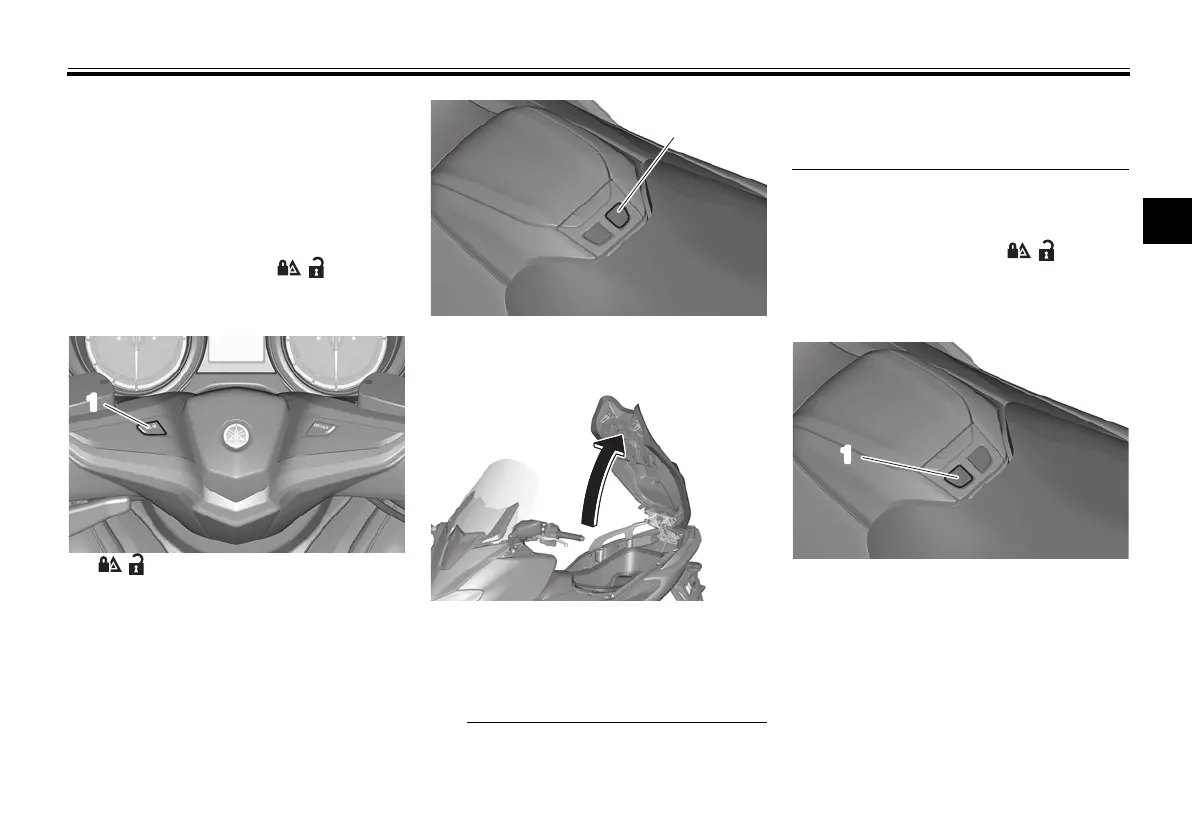

To open the seat
1. Place the vehicle on the center-
stand.
2. Briefly press the / ” switch.
Upon authentication of the smart
key, the beeper will sound twice.
3. Press the “SEAT” button and the
seat lock will release.
4. Fold the seat up.
To close the seat
Fold the seat down, and then push it to
lock it in place.
TIP
Make sure the seat is properly
closed before starting off.
In case of an emergency, the seat
can be opened with a mechanical
key. (See page 8-38.)
To open the fuel tank cap lid
With the smart key on and in operating
range, briefly press the / ” switch.
Upon authentication of the smart key,
the beeper will sound twice.
1. Press the “FUEL” button.
2. Open the lid as shown.
1. / ” switch
1. “SEAT” button
1. “FUEL” button
