Yamaha TMAX TECH MAX User Manual

Consumer information
11-2
11
The model label is affixed to the inside
of the rear storage compartment. (See
page 5-23.) Record the information on
this label in the space provided. This
information will be needed when order-
ing spare parts from a Yamaha dealer.
EAU69910

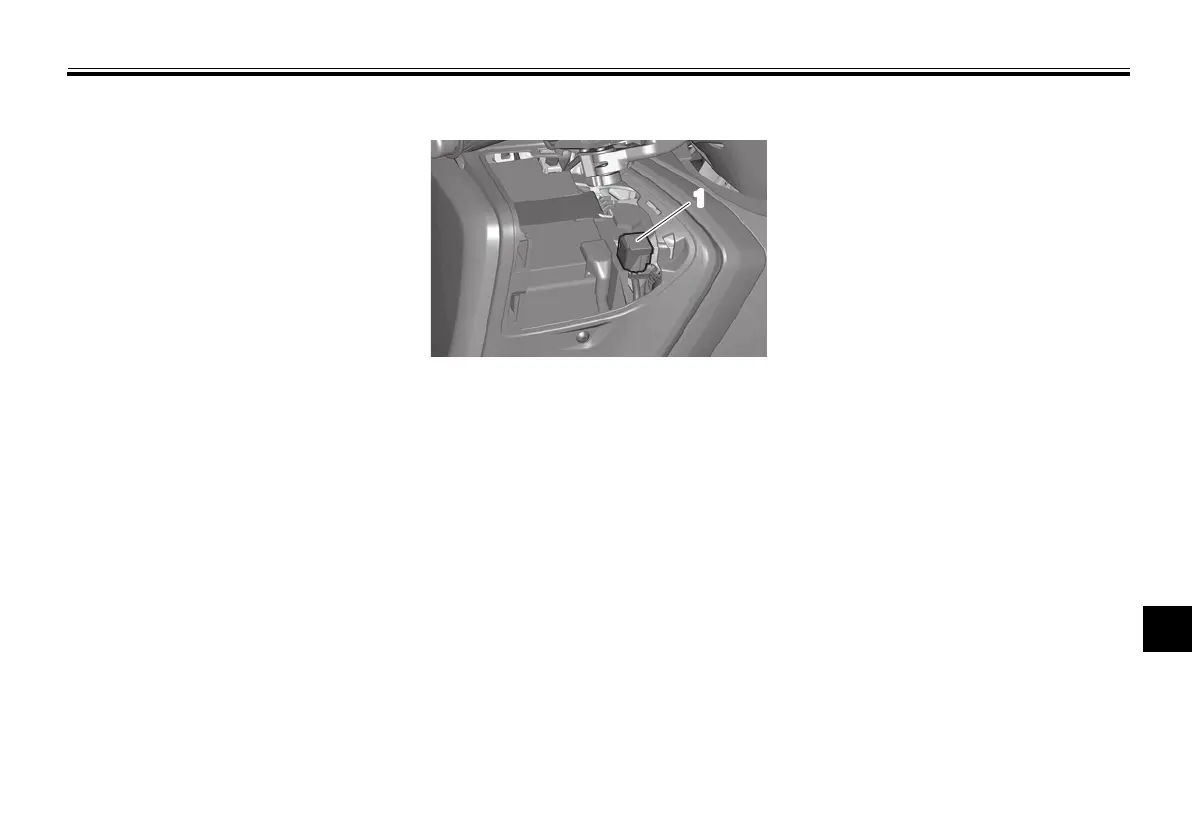

Diagnostic connector
The diagnostic connector is located as
shown.
EAU85300
Vehicle data recording
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research, statisti-
cal analysis and development purpos-
es.
Although the sensors and recorded
data will vary by model, the main data
points are:
 Vehicle status and engine perfor-
mance data
 Fuel-injection and emission-relat-
ed data
This data will be uploaded only when a
special Yamaha diagnostic tool is at-
tached to the vehicle, such as when
maintenance checks or service proce-
dures are performed.
Vehicle data uploaded will be handled
appropriately according to the follow-
ing Privacy Policy.
Privacy Policy
1. Diagnostic connector
1
https://www.yamaha-motor.eu/eu/
privacy/privacy-policy.aspx
UB3TE0E0.book Page 2 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
