Instrument and control functions
5-25
5
EAU81442

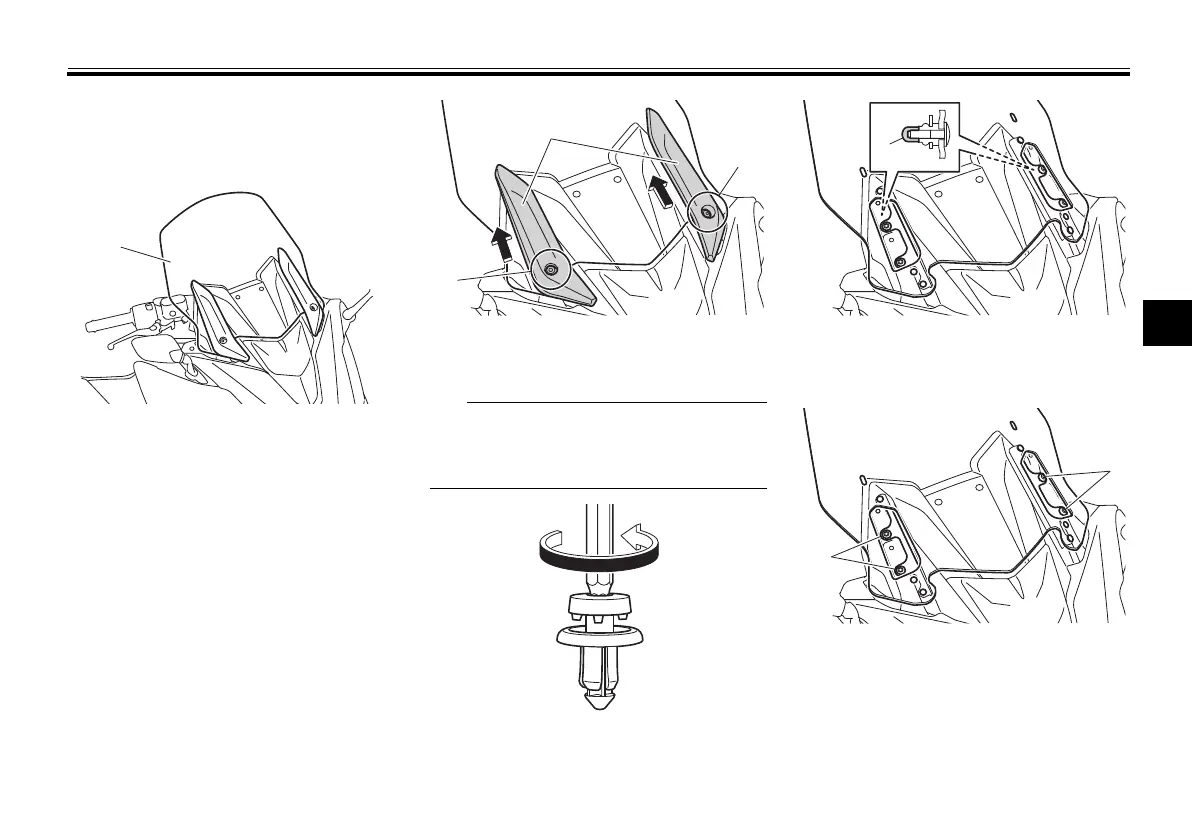

Windshield (XP560E)
The windshield height can be changed
to one of two positions.
To adjust the windshield height
1. Remove the screw access covers
by removing the quick fasteners.
TIP
To remove the quick fastener, rotate its
screwed portion counterclockwise
with a hexagon wrench.
2. Remove the caps.
3. Remove the windshield by remov-
ing the screws.
4. Install the windshield to the de-
sired position by installing the
screws.
1. Windshield
1
1. Quick fastener
2. Screw access cover
1
2
1
1. Cap
1. Screw
1
1
1
UB3TE0E0.book Page 25 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
