Yamaha TMAX TECH MAX User Manual

Instrument and control functions
5-24
5
TIP
 Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.
 Do not leave the vehicle unattend-
ed with the seat open.
 Do not place the smart key inside
a storage compartment. It may get
locked inside and the smart key
system not operate normally.
NOTICE
ECA15964
 Do not leave the seat open for
an extended period of time, oth-
erwise the light may cause the
battery to discharge.
 Since the storage compartment
may get wet when washing the
vehicle, wrap any articles stored
in the compartment in a plastic
bag.
 To avoid humidity from spread-
ing through the storage com-
partment and to discourage
possible mold growth, wrap wet
articles in a plastic bag before
storing them in the compart-
ment.
 Do not keep anything valuable
or breakable in the storage
compartment.
 Since the storage compartment
accumulates heat from the en-
gine and from direct sunlight, do
not store anything su
sceptible
to heat, such as food or flamma-
ble items, inside the compart-
ment.
WARNING
EWA20960
 Do not exceed the load limit of
1.0 kg (2 lb) for the front storage
compartment.
 Do not exceed the load limit of
5.0 kg (11 lb) for the rear storage
compartment.
 Do not exceed the maximum
load of 195 kg (430 lb) (XP560D)
197 kg (434 lb) (XP560E) for the
vehicle.

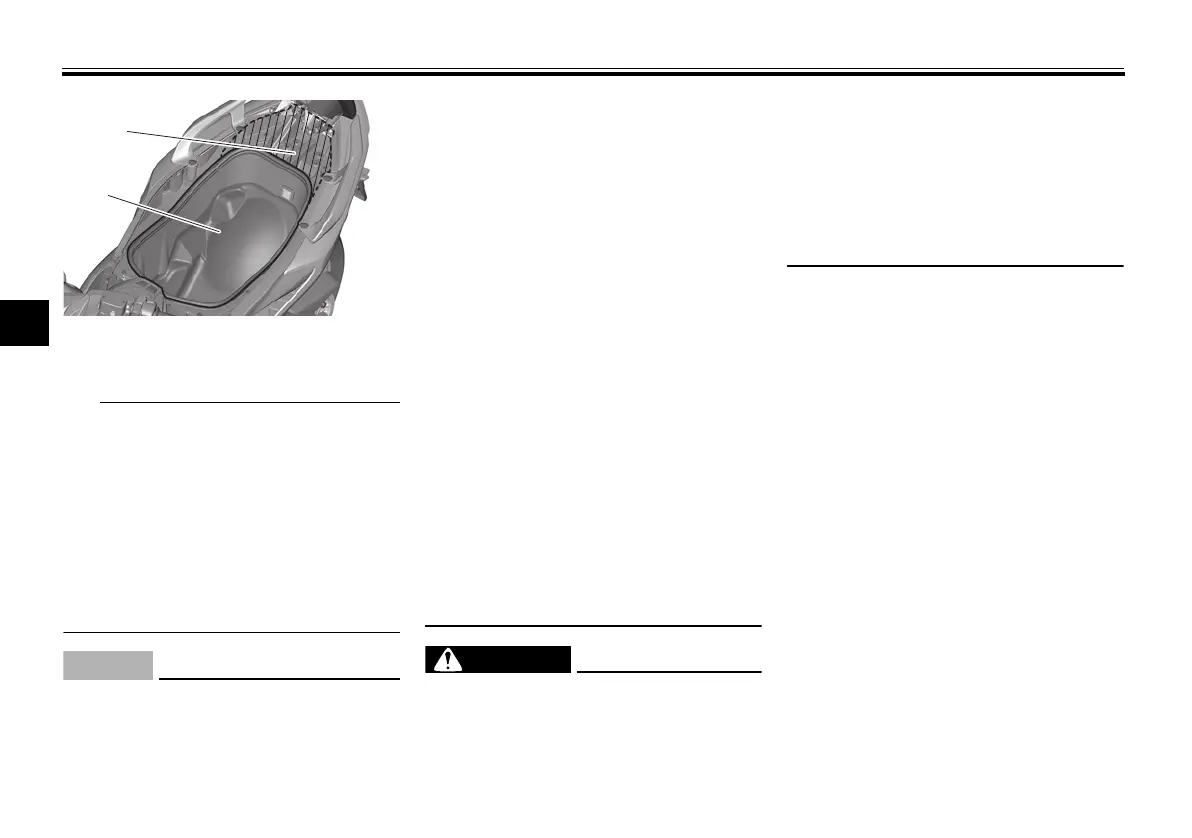

1. Rear storage compartment
2. Shaded area
1
2
UB3TE0E0.book Page 24 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
