Instrument and control functions
5-28
5
TIP
When turning the damping force ad-
juster in direction (b), it may turn be-
yond the stated specifications,
however such adjustments are ineffec-
tive and may damage the suspension.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
EAU77352
Auxiliary DC jack
This model is equipped with a 12 V
auxiliary DC jack. The DC jack is locat-
ed inside the front storage compart-
ment.
NOTICE
ECA15432
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 24 W (2 A),
otherwise the fuse may blow or the
battery may discharge.
To use the auxiliary DC jack
1. Open the front storage compart-
ment.

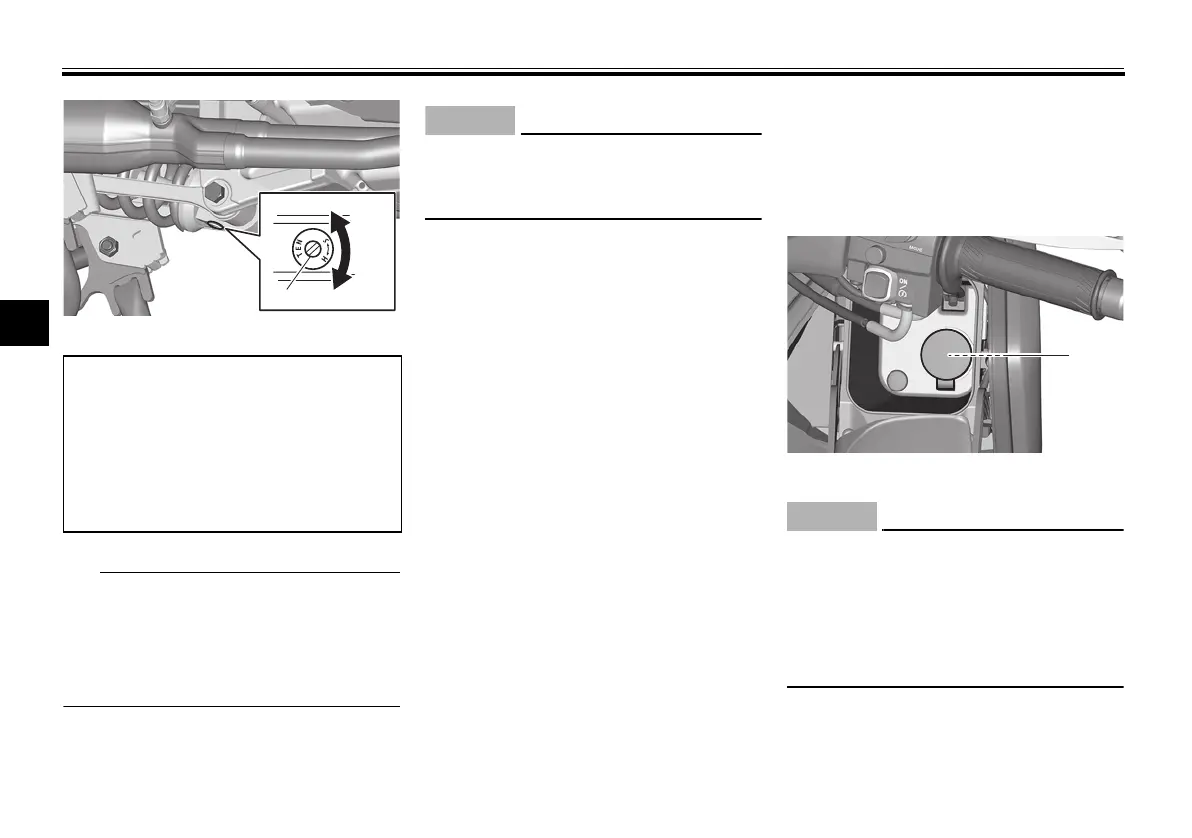

1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
3 (XP560D) turn(s) in direction (b)
Standard:
1.25 (XP560D) turn(s) in direction
(b)
Maximum (hard):
0 (XP560D) turn(s) in direction (b)
1. Auxiliary DC jack
UB3TE0E0.book Page 28 Tuesday, September 17, 2019 9:35 AM
