Yamaha TMAX TECH MAX User Manual

Instrument and control functions
5-26
5

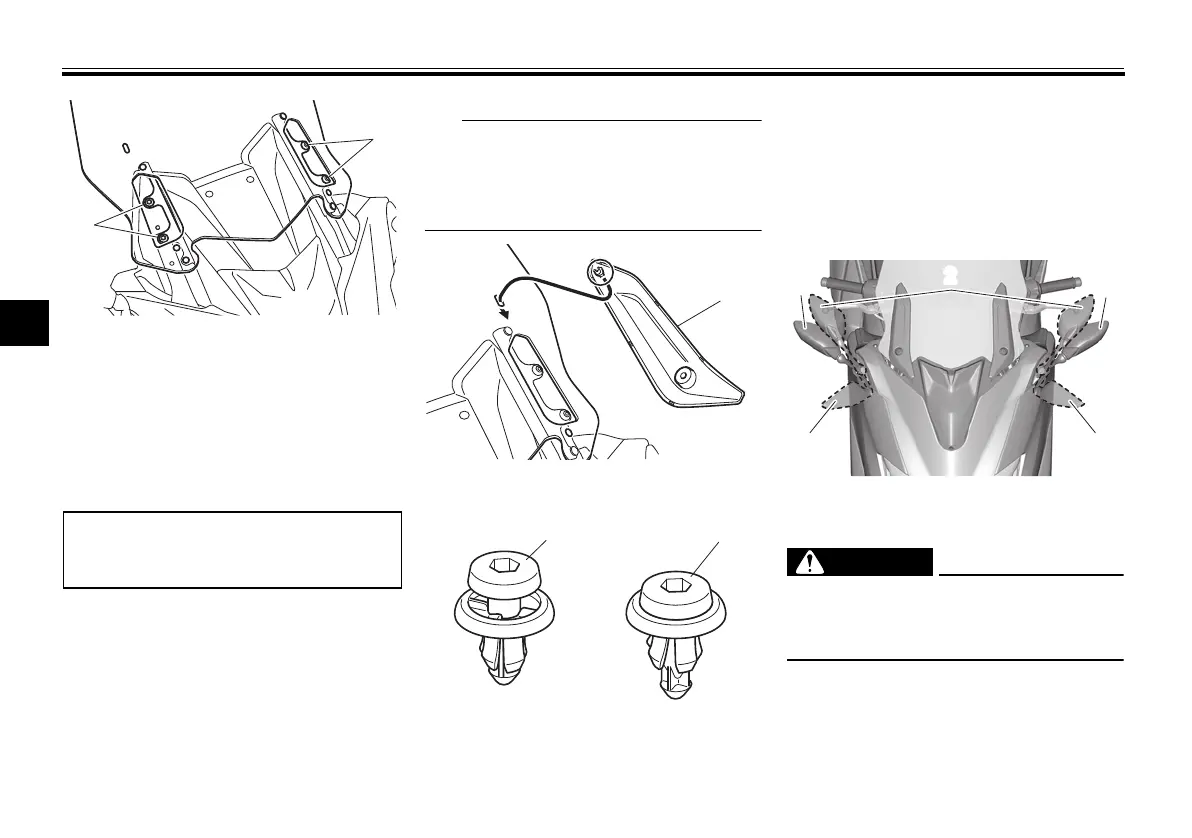

5. Tighten the screws to the speci-
fied torque. WARNING! A loose
windshield could cause an acci-
dent. Be sure to tighten the
screws to the specified torque.
[EWA15511]
6. Install the caps.
7. Place the screw access covers,
and then install the quick fasten-
ers.
TIP
To install the quick fastener, set it with
its screwed portion pulled out from the
surface of the quick fastener, and then
push it down to the surface.
EAU39672
Rear view mirrors
The rear view mirrors of this vehicle
can be folded forward or backward for
parking in narrow spaces. Fold the mir-
rors back to their original position be-
fore riding.
WARNING
EWA14372
Be sure to fold the rear view mirrors
back to their original position before
riding.
1. Screw
Tightening torque:
Windshield screw:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
1
1. Screw access cover
1. Quick fastener (before installation)
2. Quick fastener (after installation)
1
12
1. Riding position
2. Parking position
11
2
22
UB3TE0E0.book Page 26 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
