Periodic maintenance and adjustment
8-23
8
3. Confirm that the rear brake lock
lever (page 5-18) functions prop-
erly and that the rear wheel rotates
freely when unlocked.
WARNING
EWA20290
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU52293
Checking the rear brake lock
The rear brake lock must be checked
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Adjust the rear brake lock cable.
2. Apply the rear brake lock, and
then try to push the vehicle to con-
firm that the rear brake lock func-
tions properly.
3. The rear brake lock caliper is pro-
vided with a wear indicator, which
allows you to check the rear brake
lock pads. To check the rear brake
lock pads, check the position of
the indicator when the rear brake
lock lever is applied. If the indica-
tor has passed the wear indicator
groove, have a Yamaha dealer
check the rear brake lock.
4. Make sure that there are no tears
or cracks on the rubber boot.

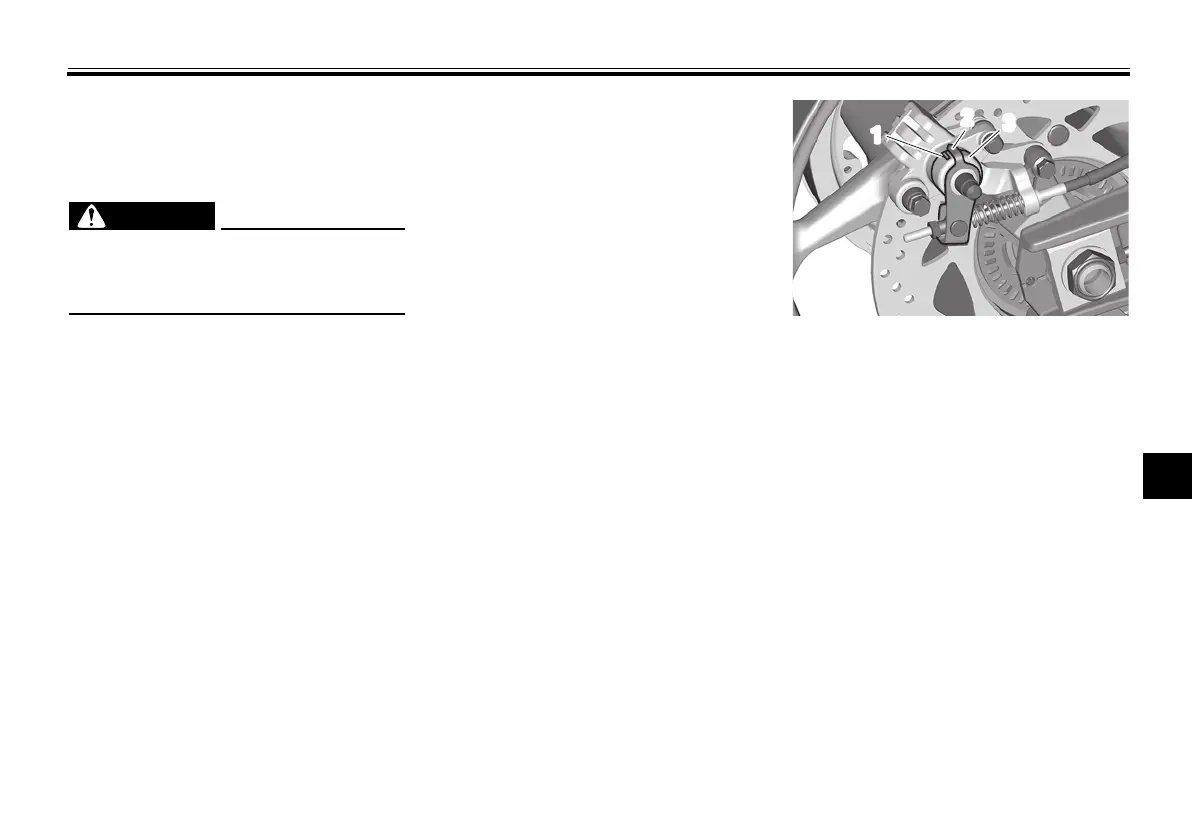

1. Wear indicator groove
2. Wear indicator
3. Rubber boot
1
2
3
UB3TE0E0.book Page 23 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
