Smart key system
3-1
3
EAU77202
Smart key system
The smart key system enables the ve-
hicle to be operated without using a
mechanical key.
WARNING
EWA14704
 Keep implanted pacemakers or
cardiac defibrillators, as well as
other electric medical devices
away from the vehicle mounted
antenna (see illustration).
 Radio waves transmitted by the
antenna may affect the opera-
tion of such devices when close
by.
 If you have an electric medical
device, consult a doctor or the
device manufacturer before us-
ing this vehicle.
In addition to the vehicle mounted an-
tenna, the smart key system consists
of the smart key, smart key system in-
dicator light, “ON/ ” switch, and the
“OFF/LOCK” and “ / ” switches.

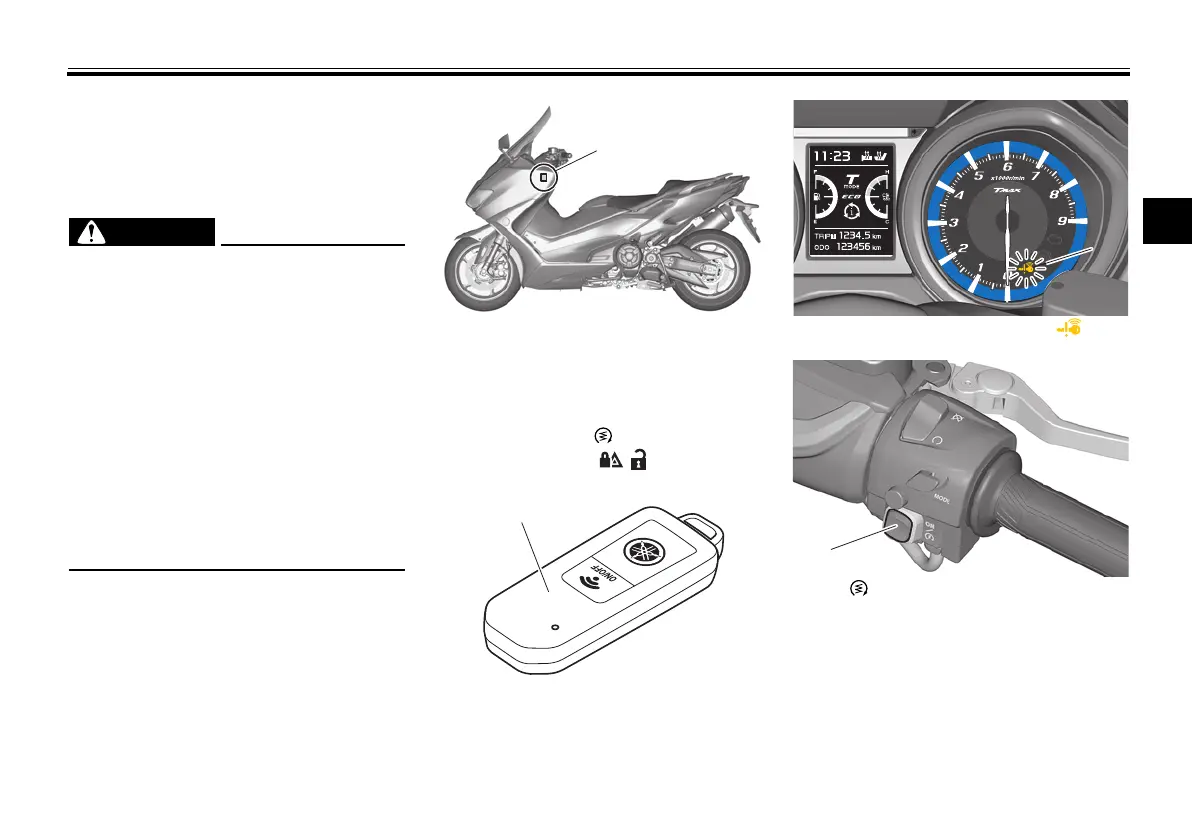

1. Vehicle mounted antenna
1. Smart key
1
1
1. Smart key system indicator light “ ”
1. “ON/ ” switch
11
1
UB3TE0E0.book Page 1 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
