Yamaha TMAX TECH MAX User Manual

Instrument and control functions
5-23
5
EAU13435
Catalytic converter
The exhaust system contains catalytic
converter(s) to reduce harmful exhaust
emissions.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
 Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
 Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has cooled down before
doing any maintenance work.
 Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
EAU88751
Storage compartments
Front storage compartment

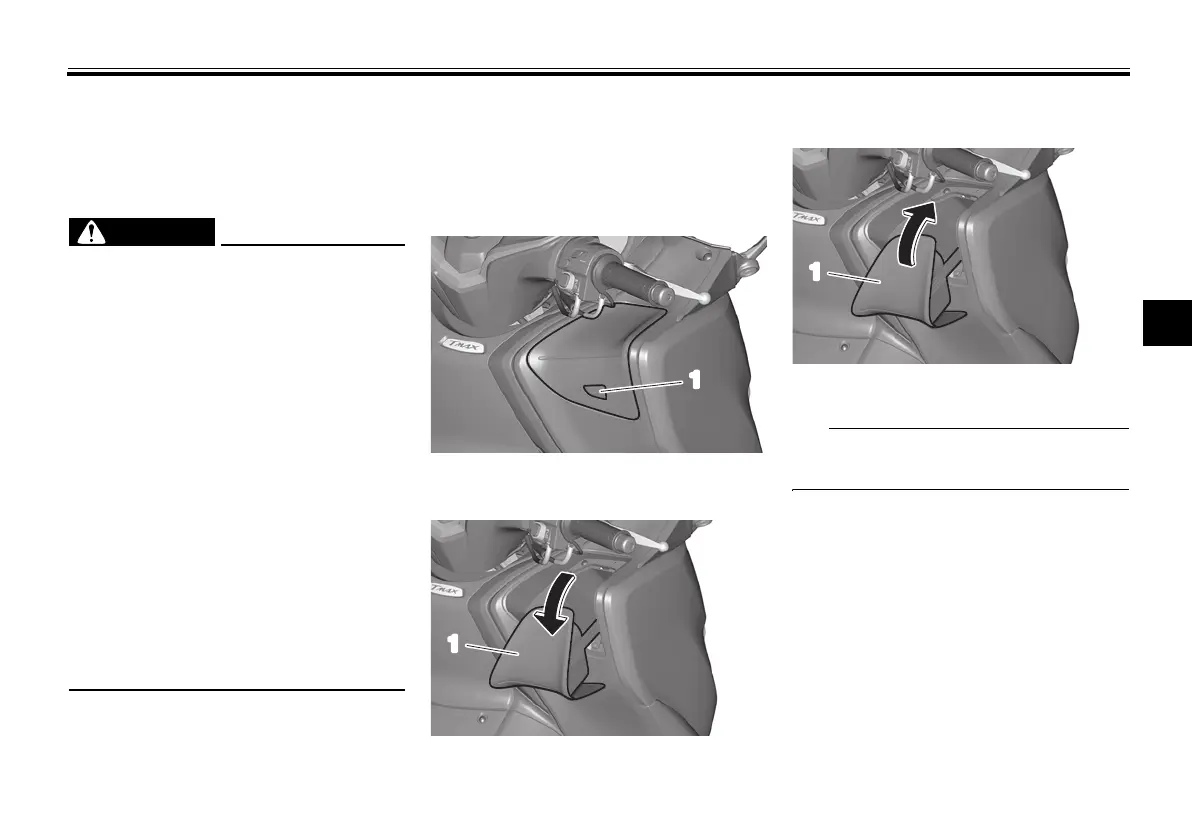

To open the storage compartment,
press the button.
Open the lid as shown.
To close the storage compartment,
push the lid into the original position.
TIP
For XP560D: this compartment has an
electronic lock. (See page 3-12.)
Rear storage compartment
This storage compartment was de-
signed to hold one full-faced helmet or
two 3/4-faced helmets. NOTICE: The
shaded area is not a storage com-
partment. To prevent damaging the
seat hinges, do not place any items
in this area.
[ECA16092]
1. Button
1. Lid
1
1
1. Lid
1
UB3TE0E0.book Page 23 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
