Instrument and control functions
5-2
5
sidestand up and while applying the
front or rear brake, push this switch to
crank the engine with the starter. See
page 7-2 for starting instructions prior
to starting the engine.
EAU79601
Hazard switch
With the vehicle power is on or in park-
ing mode, use this switch to turn on the
hazard lights (simultaneous flashing of
all turn signal lights).
The hazard lights are used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
NOTICE
ECA10062
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU73951
Cruise control switches
See page 4-1 for an explanation of the
cruise control system.
EAU77301
Menu switch “MENU”
This switch is used to make setting
changes within the multi-function dis-
play. (See page 5-5.)
EAU77311
Select switch /
This switch is used to make setting
changes within the multi-function dis-
play. (See page 5-5.)
EAU73931
Drive mode switch “MODE”
See page 4-3 for an explanation of the
drive mode.
EAU77122

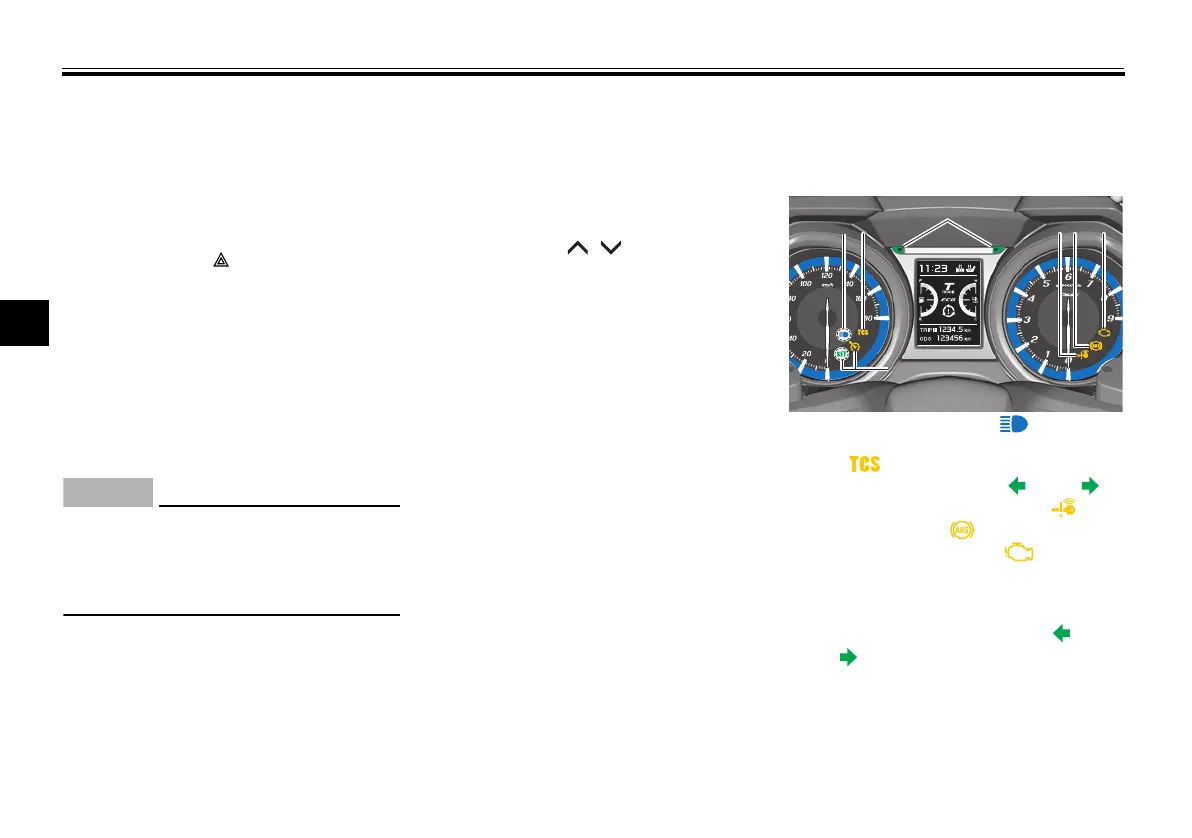

Indicator lights and warning
lights
EAU88680
Turn signal indicator lights
and “”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
1. High beam indicator light
2. Traction control system indicator
light
3. Turn signal indicator lights ” and
4. Smart key system indicator light
5. ABS warning light
6. Malfunction indicator light
7. Cruise control indicator lights (XP560D)
1 2 4 5 6
3
7
12 45 6
3
7
UB3TE0E0.book Page 2 Tuesday, September 17, 2019 9:35 AM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha TMAX TECH MAX and is the answer not in the manual?

Yamaha TMAX TECH MAX Specifications

General IconGeneral
Engine TypeLiquid-cooled, 4-stroke, DOHC, 4-valves
Displacement562cc
Bore x Stroke70.0 mm x 73.0 mm
Compression Ratio10.9:1
Fuel SystemFuel Injection
TransmissionV-Belt Automatic
Front SuspensionTelescopic forks
Rear SuspensionSwingarm
Front BrakeHydraulic dual disc, Ø267 mm
Rear BrakeHydraulic single disc, Ø282 mm
Overall Length2, 200 mm
Overall Width765 mm
Seat Height800 mm
Wheelbase1, 575 mm
Wet Weight220 kg
Fuel Tank Capacity15 litres
Lubrication SystemWet sump
Ignition SystemTCI
Starter SystemElectric
Front Suspension Travel120 mm
Rear Suspension Travel117 mm
Minimum Ground Clearance135 mm
Maximum Torque55.7 Nm @ 5, 250 rpm
Front Tyre120/70R15
Rear Tyre160/60R15
Overall Height1, 420 mm - 1, 555 mm (adjustable windscreen)
