Yamaha TMAX TECH MAX User Manual

Periodic maintenance and adjustment
8-13
8
5. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (and re-
place the oil filter cartridge)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
4. Remove the engine oil filler cap,
and then the engine oil drain bolt
and its gasket.
5. Check the O-ring for damage and
replace it if necessary.
TIP
Skip steps 6–8 if the oil filter cartridge
is not being replaced.
6. Remove the oil filter cartridge with
an oil filter wrench.
TIP
An oil filter wrench is available at a
Yamaha dealer.
7. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.

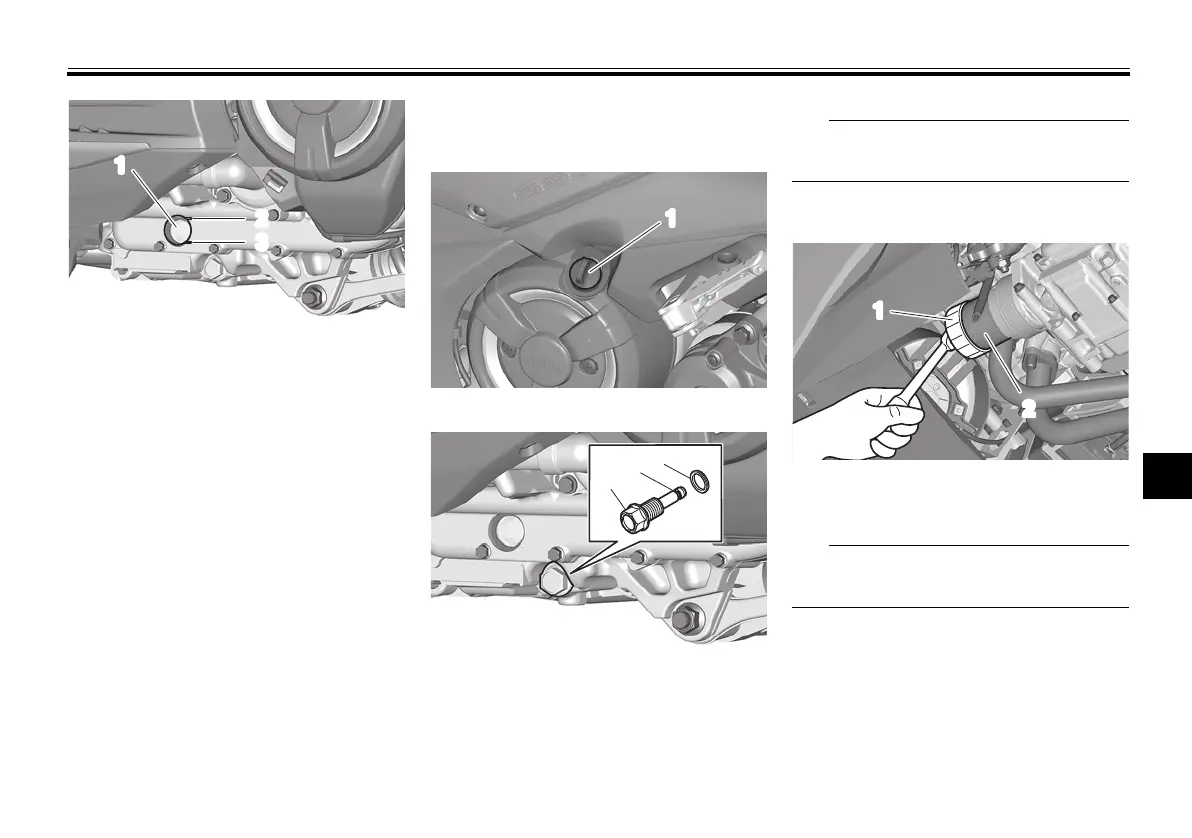

1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1
2
3
1. Engine oil filler cap
1. Engine oil drain bolt
2. O-ring
3. Gasket
1
1
2
3
1. Oil filter wrench
2. Oil filter cartridge
1
2
UB3TE0E0.book Page 13 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
