2 - 28
SPEC

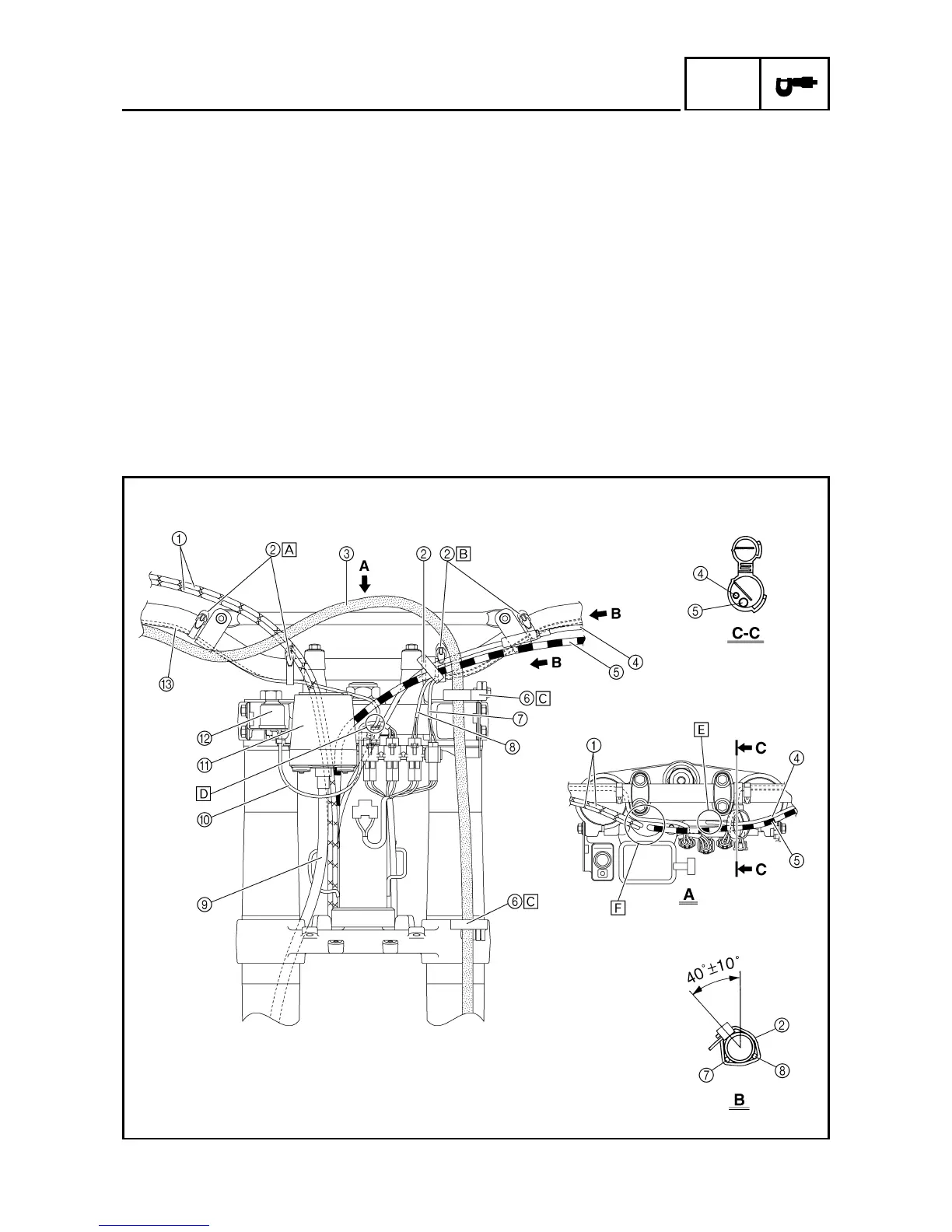

CABLE ROUTING DIAGRAM
1
Throttle cable
2
Clamp
3
Brake hose
4
Hot starter cable
5
Clutch cable
6
Hose guide
7
Clutch switch lead
8
“ENGINE STOP” button lead
9
Trip meter cable
0
Main switch lead
A
Trip meter
B
Main switch
C
Start switch lead
È
Fasten the start switch lead to
the handlebar with the plastic
bands.
É
Fasten the “ENGINE STOP”
button lead and clutch switch
lead to the handlebar with the
plastic bands.
Ê
Pass the brake hose through
the hose guides.
Ë
Pass the start switch lead in
front of the main switch lead.
Ì
Pass the hot starter cable
between the handle crown and
coupler bracket.
Í
Pass the throttle cables and
clutch cable between the han-
dle crown and trip meter.
To Next Page
