Cylinder Head
General Guidelines
IMPORTANT
Mark all valve train components so they can
be installed in their original locations.
Note: Record all measurements taken during
disassembly and inspection.
Remove and Install Cylinder Head
Cover

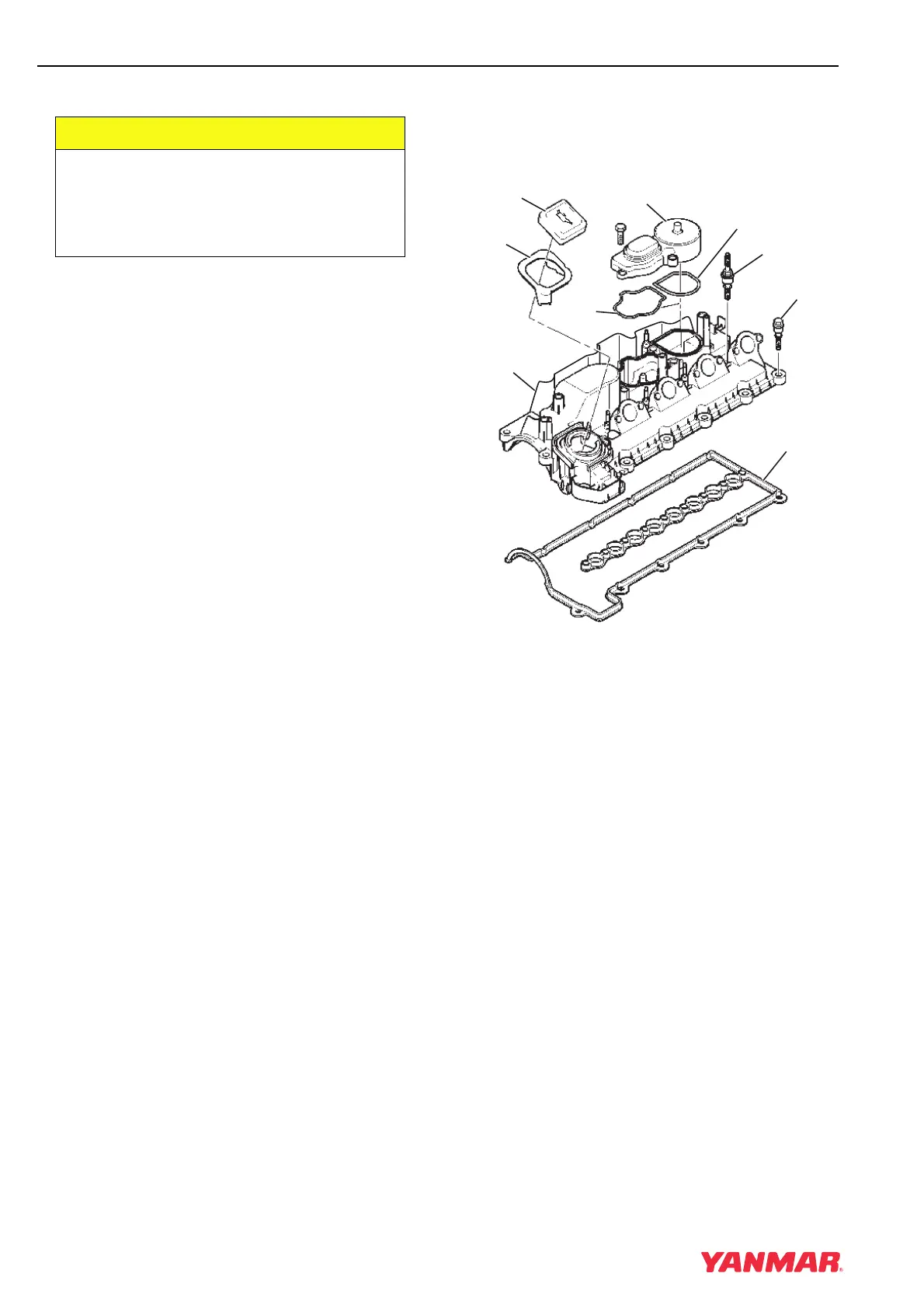

Cylinder Head Cover Components
Figure 5-3
1 – Cylinder Head Cover
2 – Rubber Gasket
3 – Oil Fill Cap
4 – Seal
5 – Crankcase Ventilation Diaphragm Housing
6 – Seal
7 – Double-Ended Bolt
8–Bolt
9 – Profile Gasket
IMPORTANT
When working on the oil, coolant or fuel
circuits you must protect the alternator from
contamination. Cover alternator with
suitable materials.
Failure to comply may result in an alternator
failure.
CAUTION
Identify all parts and their location using
an appropriate method. It is important
that all parts are returned to the same
position during the reassembly process.
0000080en
0003705
(9)
(8)
(7)
(6)
(5)
(3)
(2)
(1)
(4)
