Yardistry YM12978 User Manual

11 support@yardistrystructures.com
1pc.
- Weather Seal -
Ridge Clip (8Pk)
(Y70818-074)
2pc.
Peak Loop
(Y20018-003)
1pc.
(Y70830-103)
- Corner Cap Set (4Pk)
1pc.
- Roof Panel Set
(Y70837-138)
2pc. Long Beam Insert
- (Y00429-124)
2pc.
Peak Post
(Y01000-094)
2pc.
Carriage Bolt
(Y07428-260)
2pc.
1/4" Nut
(Y08490-200)
2pc.
Spring Clip
(Y09490-001)
2pc.
- 50mm
Hook
(Y00418-050)
1pc.
- Gazebo ID Plaque
(Y70800-104)
4pc.
- Long Panel Right
(Y01037-129)
4pc.
- Short Panel Right
(Y01037-128)
2pc.
- Middle Panel
(Y01037-130)
4pc.
- Long Panel Left
(Y01037-127)
4pc.
- Short Panel Left
(Y01037-126)
4pc.
Ridge Cap Long 81.5
(Y01030-131)
4pc.
Ridge Cap Short 25.2
(Y01030-132)
4pc.
Roof Peak Bracket
(Y00429-125)
2pc.
Roof Edge Right 72.2 - (Y01030-135)
8pc.
Ridge Clip 102.5 - (Y01030-133)
1pc.
Peak Cap Long
(Y01030-137)
4pc.
Roof Edge Left 72.2 - (Y01030-134)
1pc.
- Roof To Beam
Bracket Set (14Pk)
(Y70829-123)
2pc.
Roof Edge Right 96.2 - (Y01030-136)
2pc.
Contoured Washer
(Y05918-211)
1pc.
1/4" Eye Lag
(Y00218-001)
1pc.
- Post
Mount Set (8Pk)
(Y70819-109)
1pc. (2 Pk)
45º Twist Bracket RT
(Y70829-192)
1pc.
- Rafter To Post
Bracket Set (4Pk)
(Y70829-350)
1pc.
Tie Wrap Bracket (4Pk)
(Y70829-106)
1pc. (2 Pk)
45º Twist Bracket LT
(Y70829-191)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.

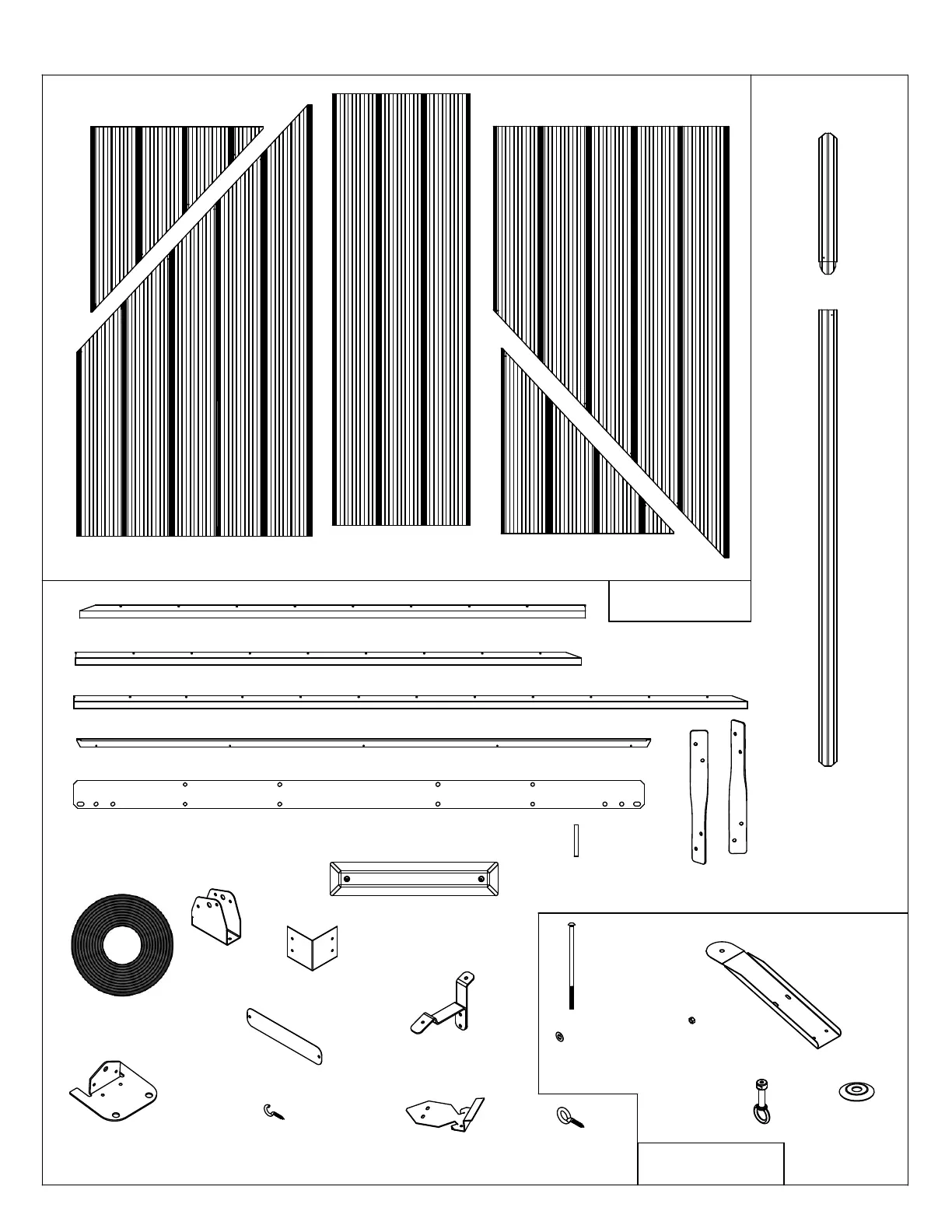

Hardware Identification ( )
1pc.
- Roof Peak Set
(Y70829-125)

Yardistry YM12978 Specifications

General

Brand	Yardistry
Model	YM12978
Category	Outdoor Furnishing
Language	English
