Step 15: Attach Ridge Clips and Roof Edges - Large Roof
Hardware
F15.1
40 x #8 x 1” Roong Screw
20 x #7 x 3/4” Wood Screw

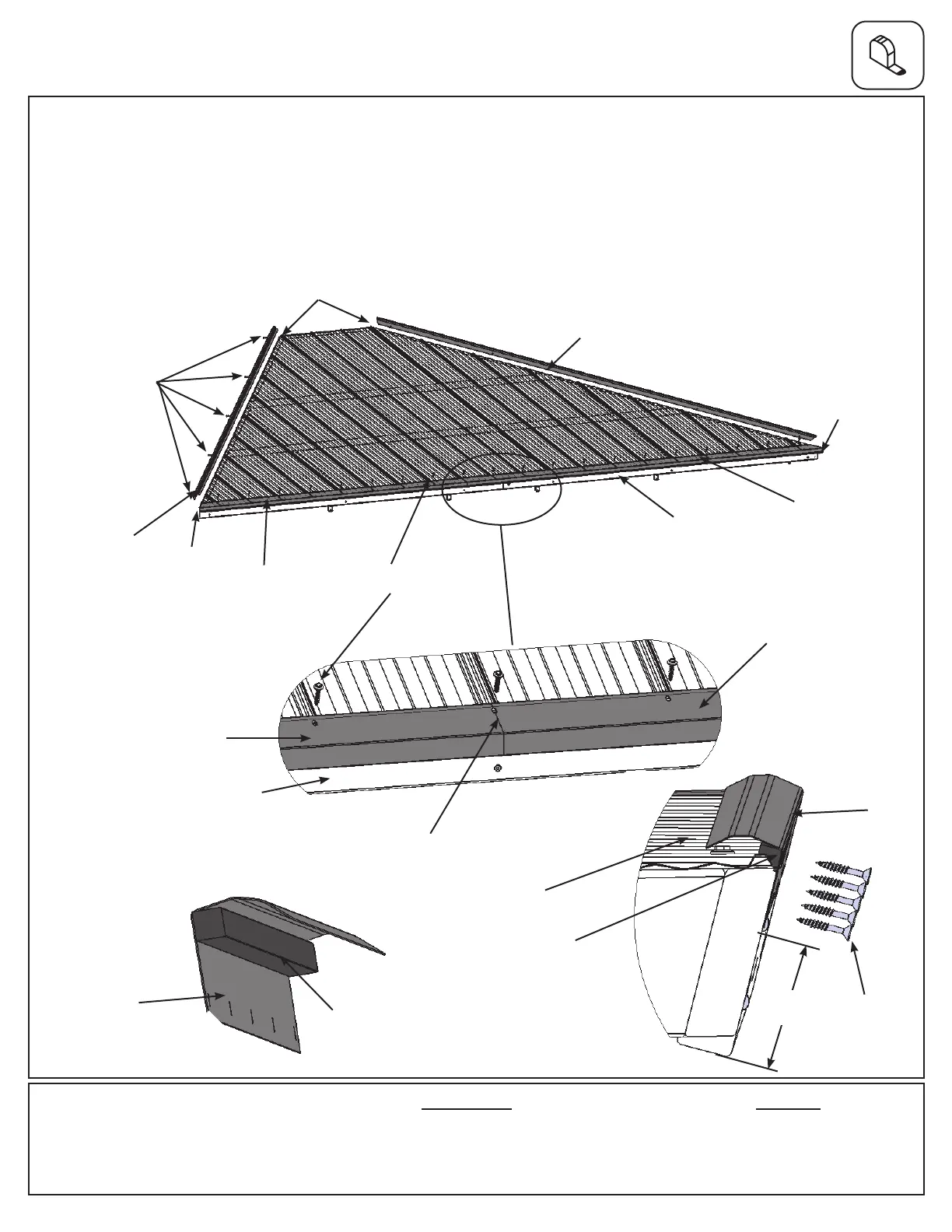

A: Place one Roof Edge Left 72.2 and one Roof Edge Right 96.2 on the bottom of each Large Roof Rafter
Assembly so the ends are ush with the outside ends of the Large Fascia Beam Assembly and meet tight in the
centre. Attach both Roof Edges with 20 #8 x 1” Roong Screws per Large Roof Rafter assembly. (F15.1 and
F15.2)
B: Place one Weather Seal on the inside of each Ridge Clip 102.5 then place one Ridge Clip 102.5 on each side
of each Large Roof Rafter Assembly so they cover the panels and bottom edge is 2-3/4” (6.99 cm) up from the
bottom of the Corner Rafters then attach with ve #7 x 3/4” Wood Screws per Ridge Clip 102.5. (F15.1, F15.3
and F15.4)
Weather
Seal
F15.2
Panels
Components:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 96.2
4 x Ridge Clip 102.5
4 x Weather Seal
Roof Edge
Left 72.2
Roof Edge
Right 96.2
Large Fascia
Beam Assembly
Flush
Flush
#8x 1” Roong
Screws (x 20)
Large Fascia
Beam Assembly
F15.3
Weather
Seal
Underneath,
Side View
Ridge Clip
102.5
F15.4
Side View
Flush
Roof Edge
Left 72.2
Roof Edge
Right 96.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
#7 x 18 mm (3/4”)
Wood Screws (x 5
per side)
#7 x 3/4”
Wood Screws
(x 5 per side)
2-3/4”
6.99 cm
