Yardistry YM12978 - Attach Roof to Beam Brackets

To Next Page

To Previous Page

32 support@yardistrystructures.com

Note: Position the

Rafter/Beam bracket at a

dist. of 1-1/2" from the

fascia

3.81 cm

1-1/2”

Note: Position the

Rafter/Beam bracket at a

dist. of 1-1/2" from the

fascia

Hardware

#8 x 1” Pan

Screw

Roof to Beam

Bracket

F11.1

F11.2

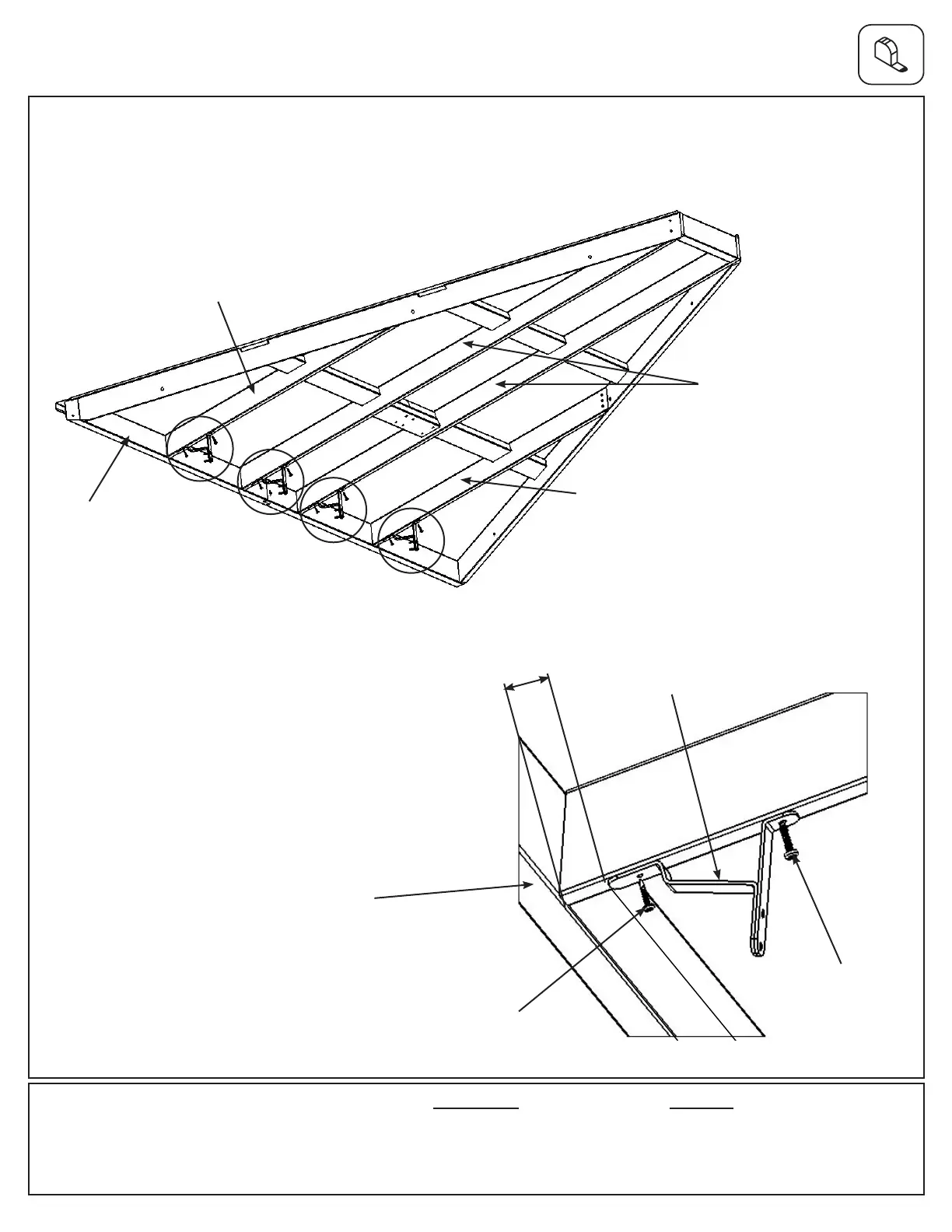

A: On the Back of both Large Roof Rafter Assemblies, centred and 1-1/2” (3.81 cm) from the bottom of (442)

Rafter Short Right, (441) Rafter Short Left and both (440) Rafter attach one Roof to Beam Bracket per board with

one #8 x 1” Pan Screw in the bottom hole and one #12 x 1-1/2” Pan Screw in the top hole per bracket. (F11.1

and F11.2)

Step 11: Attach Roof to Beam Brackets

- Large Roof Rafter Assemblies

8 x #8 x 1” Pan Screw

8 x #12 x 1-1/2” Pan Screw

Back View

(440)

Rafter

(441) Rafter

Short Left

(442) Rafter

Short Right

Large Fascia

Beam Assembly

Large Fascia

Beam Assembly

#12 x 1-1/2”

Pan Screw

8 x Roof to Beam Bracket

Components

Yardistry YM12978 - Attach Roof to Beam Brackets - Large Roof Rafter Assemblies
