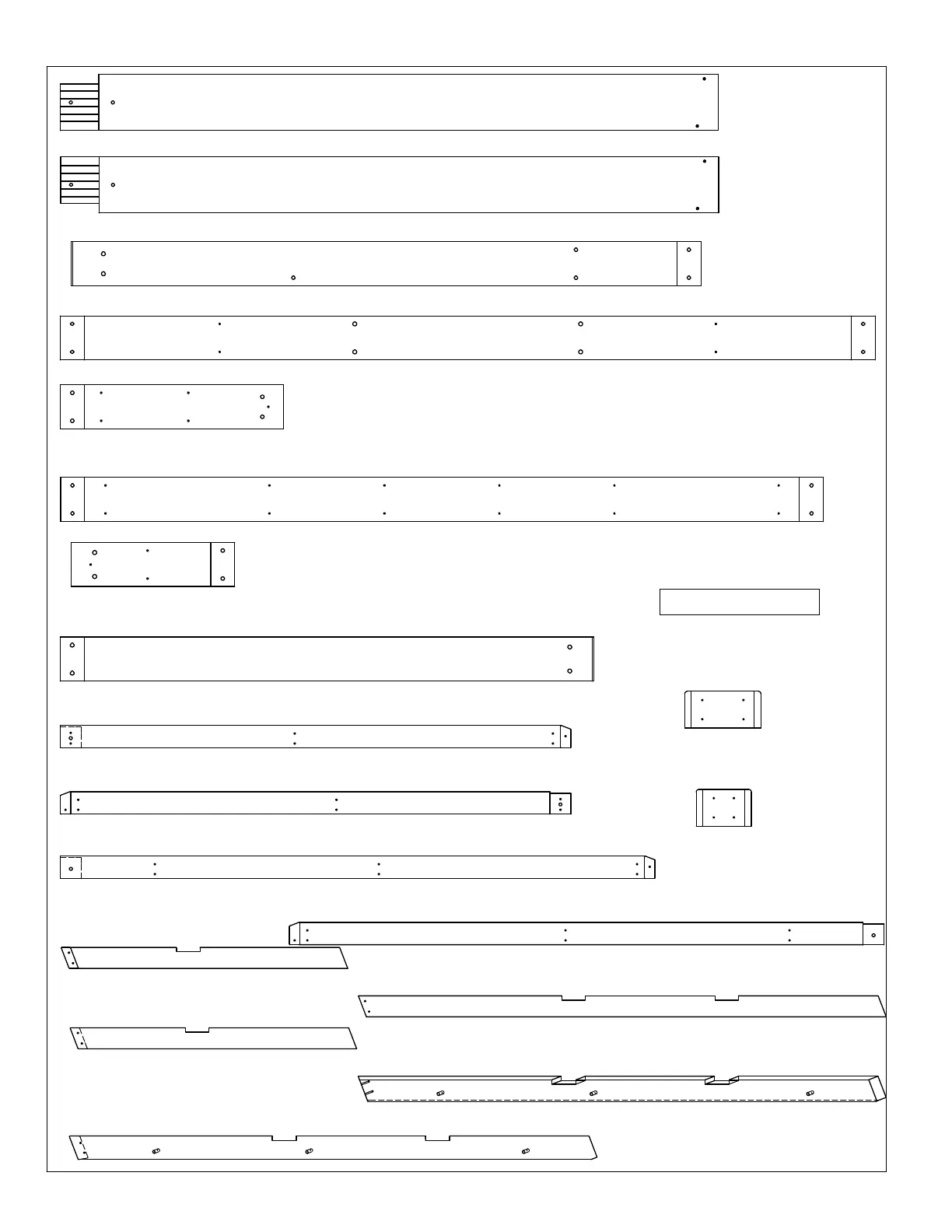

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
8pc. (459) -
Plinth 200mm
(7 7/8")
Y50229-459
8pc. (1048) -
Plinth Long 250.8mm
(9 7/8")
Y50229-1048
2pc. (444) -
Fascia Right 1853mm
(72 -15/16")
Y50229-444
4pc. (439) -
Rafter Corner Right 2601.9mm
(102 7/16")
Y50229-439
2pc. (435) -
Fascia Left - Large Roof 2157.7mm
(84 -15/16")
Y50229-435
4pc. (442) -
Rafter Short Right 1040.2mm
(40 15/16")
Y50229-442
2pc. (436) -
Fascia Right - Large Roof 2157.7mm
(84 -15/16")
Y50229-436
2pc. (443) -
Fascia Left 1853mm
(72 -15/16")
Y50229-443
6pc. (440) -
Rafter 1915.4mm
(75 7/16")
Y50229-440
4pc. (441) -
Rafter Short Left 1040.2mm
(40 15/16")
Y50229-441
4pc. (438) -
Rafter Corner Left 2601.9mm
(102 7/16")
Y50229-438
2pc. (1035) -
6 x 8 Post Left Side 2387.6mm
(94")
Y70229-1035
2pc. (434) -
Top 577.9mm
(22 3/4")
Y50229-434
2pc. (1036) -
6 x 8 Post Right Side 2387.6mm
(94")
Y70229-1036
4pc. (1047) -
Beam Long End
706.5mm (27 13/16")
Y50229-1047
4pc. (1045) -
Beam Long 1998.7mm
(78 11/16")
Y50229-1045
2pc. (1046) -
Long Beam Centre
2587.5mm (101 7/8")
Y50229-1046
2pc. (1042) -
Short Beam Centre
2422.1mm (95 3/8")
Y50229-1042
4pc. (1043) -
Beam Short End
519.4mm (20 7/16")
Y50229-1043
4pc. (1044) -
Beam Short 1693.9mm
(66 11/16")
Y50229-1044
