Yardistry YM12978 - Step 5: Frame Assembly Part 1 - Short Side

19 support@yardistrystructures.com
2- Post Left Side -Y70000-1035
2- Post Right Side -Y70000-1036
2- Short Beam Assemblies
4- Arched Gusset Short -(Y70-1053)
8- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
4- 5/16 x 3" Lag Screw (5/16 Washer)
2- Post Left Side -Y70000-1035
2- Post Right Side -Y70000-1036
2- Short Beam Assemblies
4- Arched Gusset Short -(Y70-1053)
8- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
4- 5/16 x 3" Lag Screw (5/16 Washer)

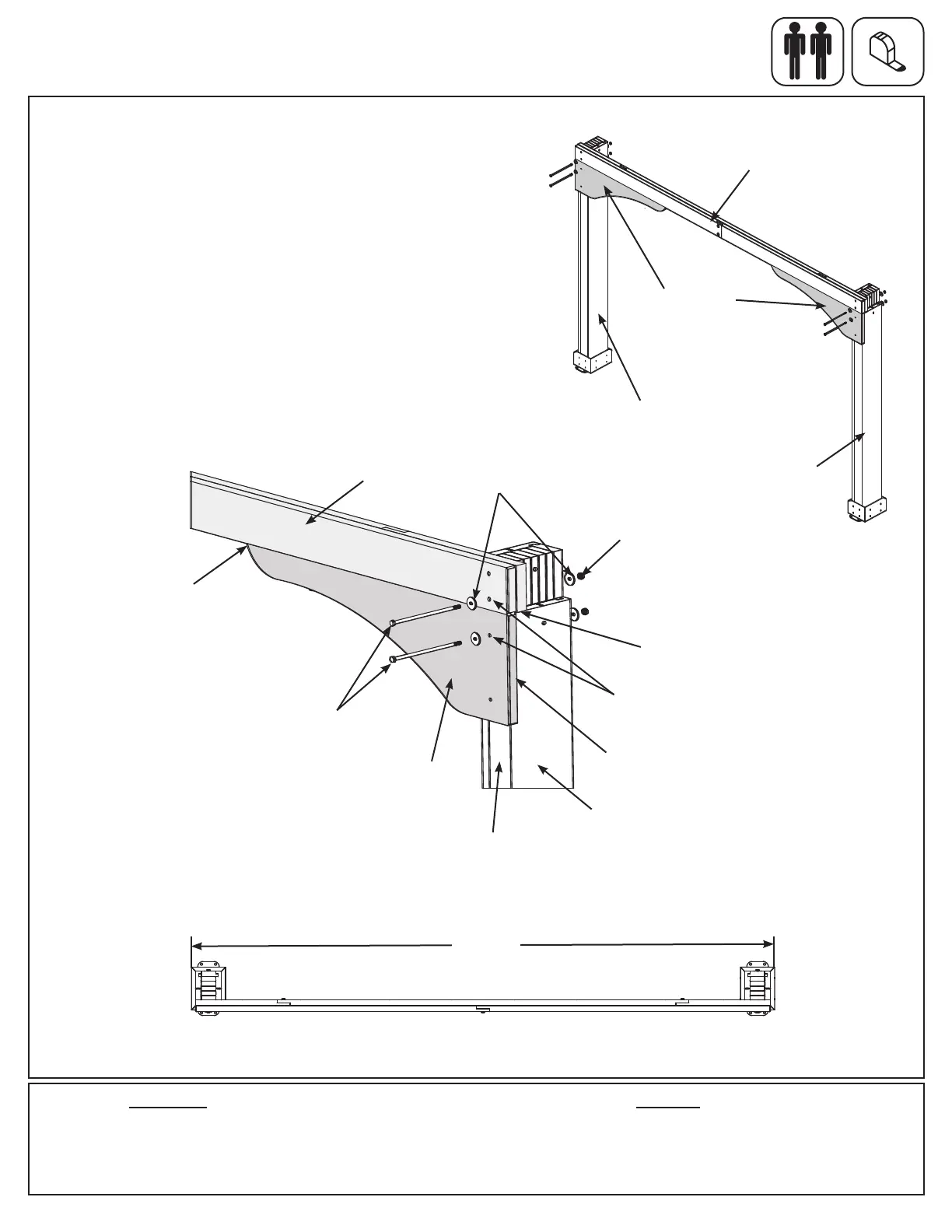

F5.1
A: Against the short sides of one Post Right Assembly and
one Post Left Assembly place one Short Beam Assembly and
loosely attach with one 3/8 x 10” Hex Bolt (with two 3/8” large
washers and one 3/8” lock nut) per post in the bottom holes.
The distance from the outside of one post to the outside of the
second post should be 10’ 10-3/8” (3.312m). (F5.1, F5.2 and
F5.3)
B: On each end of the Short Beam Assembly, tight to the
bottom and ush to the outside edges, place one (1053) Arched
Gusset Short. Loosely attach gussets, in the top holes, with
one 3/8 x 10” Hex Bolt (with two 3/8” large washers and one
3/8” lock nut) per post. (F5.1 and F5.2)
F5.3
Hardware
8 x 3/8 x 10” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
3/8” Lock
Nut
3/8 x 10”
Hex Bolt
(1053) Arched
Gusset Short
Post
Post Right
Assembly
Post Left
Assembly
Short Beam
Assembly
Short Beam
Assembly
Short Side
3/8” Large
Washer
Step 5: Frame Assembly
Part 1 - Short Side
Wood Parts
4 x (1053) Arched Gusset Short
F5.2
(1053) Arched
Gusset Short
Use
these
holes
3.312 m
10’ 10-3/8”
Tight
Flush
Flush
