Hardware
28 x #8 x 2-1/2” Wood Screw
12 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)

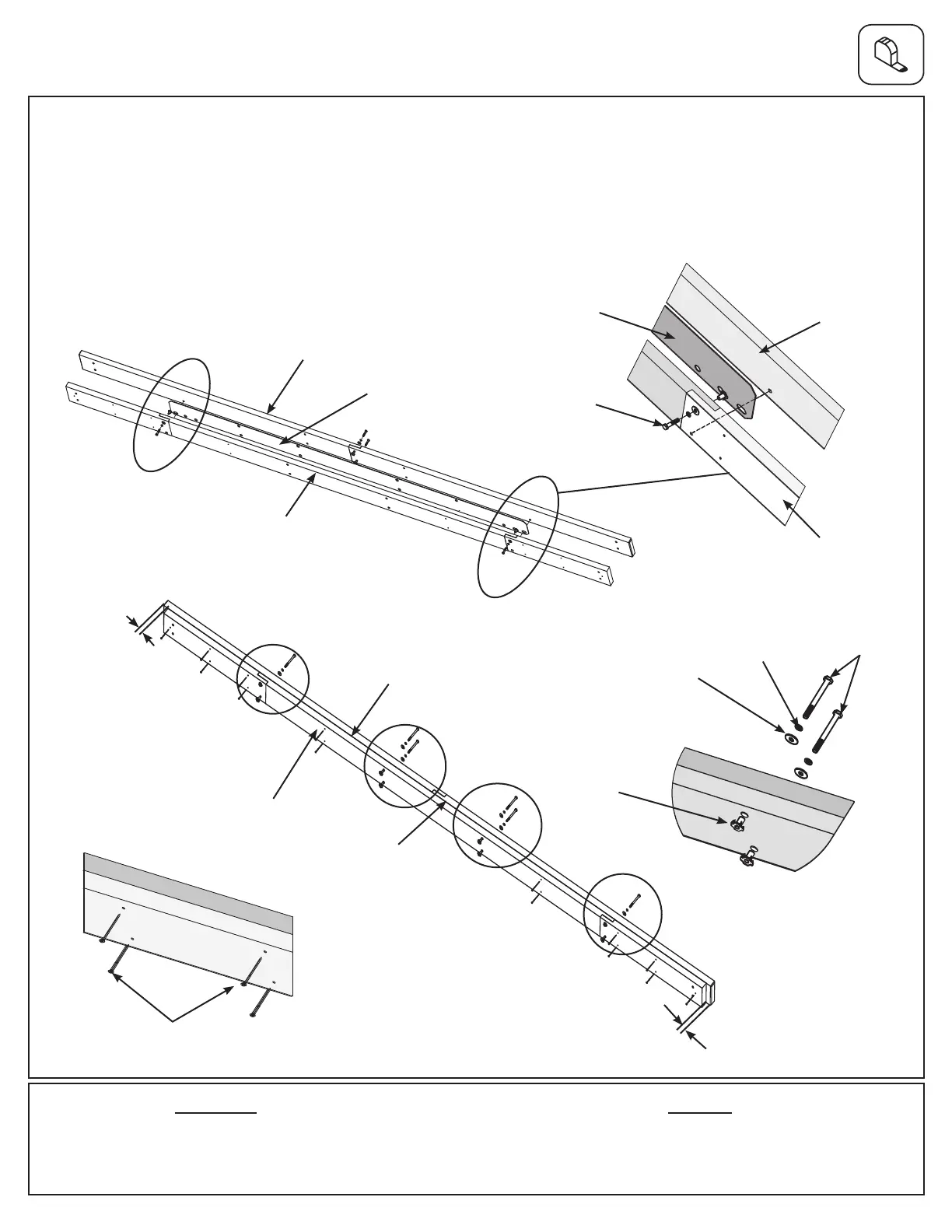

D: Place one Long Beam Insert in between one Beam Long Assembly and one Long Beam End Assembly then
t tight together. Beam Long Assembly overhangs Long Beam End Assembly by 1-3/8” on each end. Match the
bolt holes and wood screw pilot holes in both beam assemblies and Long Beam Insert. (F4.3, F4.4 and F4.5)
E: Attach beam assemblies and Long Beam Insert together with six 5/16 x 3” Hex Bolts (with 5/16” lock washer,
1/4-5/16” large washer and 5/16” t-nut) and 14 #8 x 2-1/2” Wood Screws. (F4.5, F4.6 and F4.7)
F: Repeat Step D-E make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 2
Align holes
in all 3
pieces
Long Beam
End Assembly
Beam Long
Assembly
Long Beam
Insert
Long Beam
End Assembly
Beam Long
Assembly
Long Beam
Insert
F4.4
F4.3
#8 x 2-1/2” Wood Screws
(x 14 per assembly)
Long Beam
End Assembly
Beam Long
Assembly
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt x 6
5/16” Lock
Washer
Long Beam
Insert
F4.5
F4.6
Componets:
2 x Long Beam Insert
This bolt was
previously installed
in Step 4, Part 1B
Notice the side the bolts
and screws are installed in
F4.5, F4.6 and F4.7. Bolts
are on the opposite side of
the screws
F4.7
1-3/8”
1-3/8”
