Yardistry YM12978 - Step 3: Short Beam Assembly Part 1

15 support@yardistrystructures.com
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
5/16”
T-nut
Step 3: Short Beam Assembly
Part 1
HardwareWood Parts

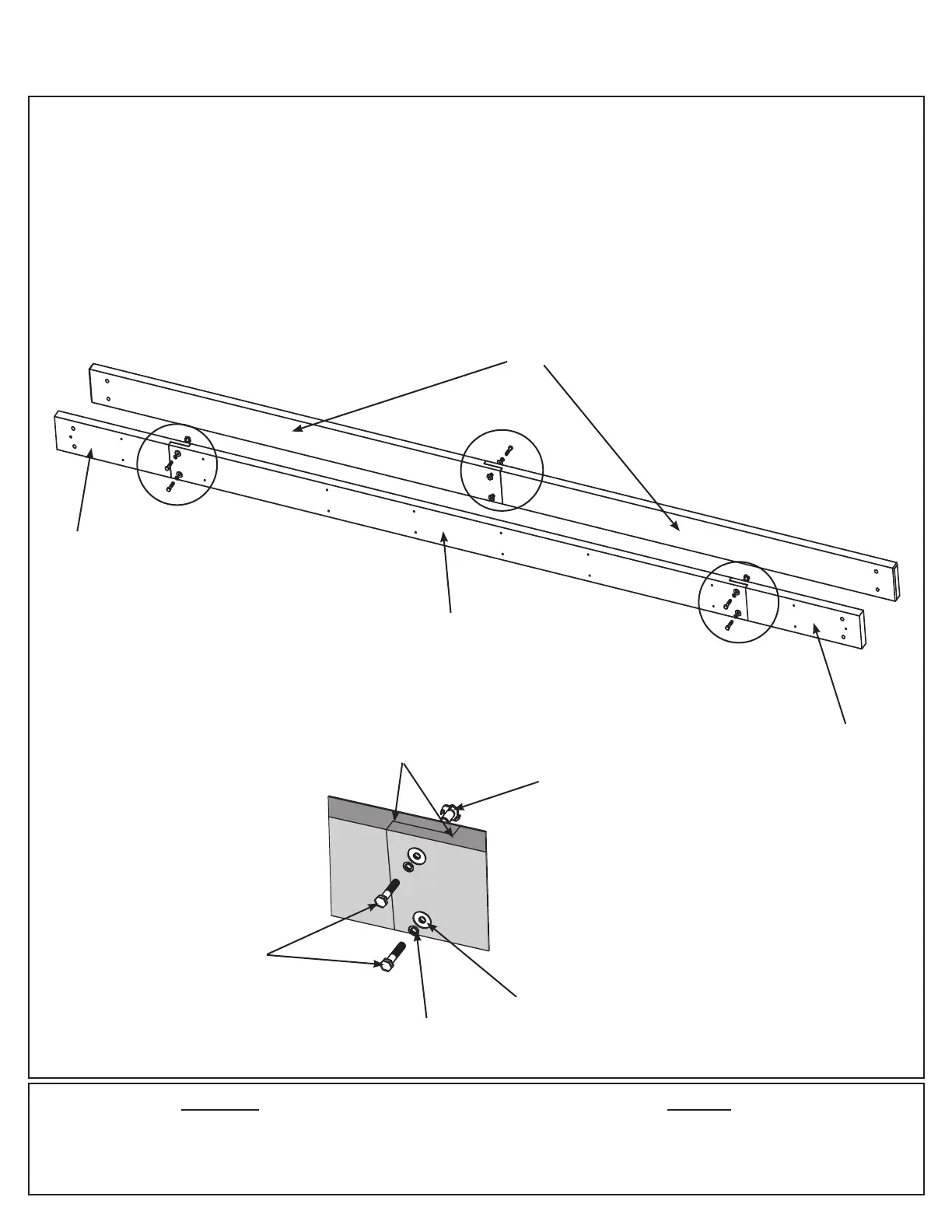

A: Connect two (1044) Beam Shorts using two 5/16 x 1-1/2” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large
washer and 5/16” t-nut) as shown in F3.1 and F3.2.
B: Connect one (1043) Beam Short End to each end of one (1042) Short Beam Centre using two 5/16 x 1-1/2”
Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) per end as shown in g. 3.1 and 3.2.
C: Repeat Steps A and B one more time to make two Beam Short Assemblies and two Short Beam End
Assemblies.
4 x (1043) Beam Short End
2 x (1042) Short Beam Centre
4 x (1044) Beam Short
F3.1
12 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F3.2
1/4-5/16”
Large Washer
5/16 x 1-1/2”
Hex Bolt
Tight
(1044) Beam
Short
(1042) Short
Beam Centre
(1043) Beam
Short End
5/16” Lock
Washer
(1043) Beam
Short End
Make sure bolt heads
are on the outside of
each Beam Assembly
