Yardistry YM12978 - Attach Ridge Clips and Roof Edges - Small Roof

37 support@yardistrystructures.com
Tight at centre

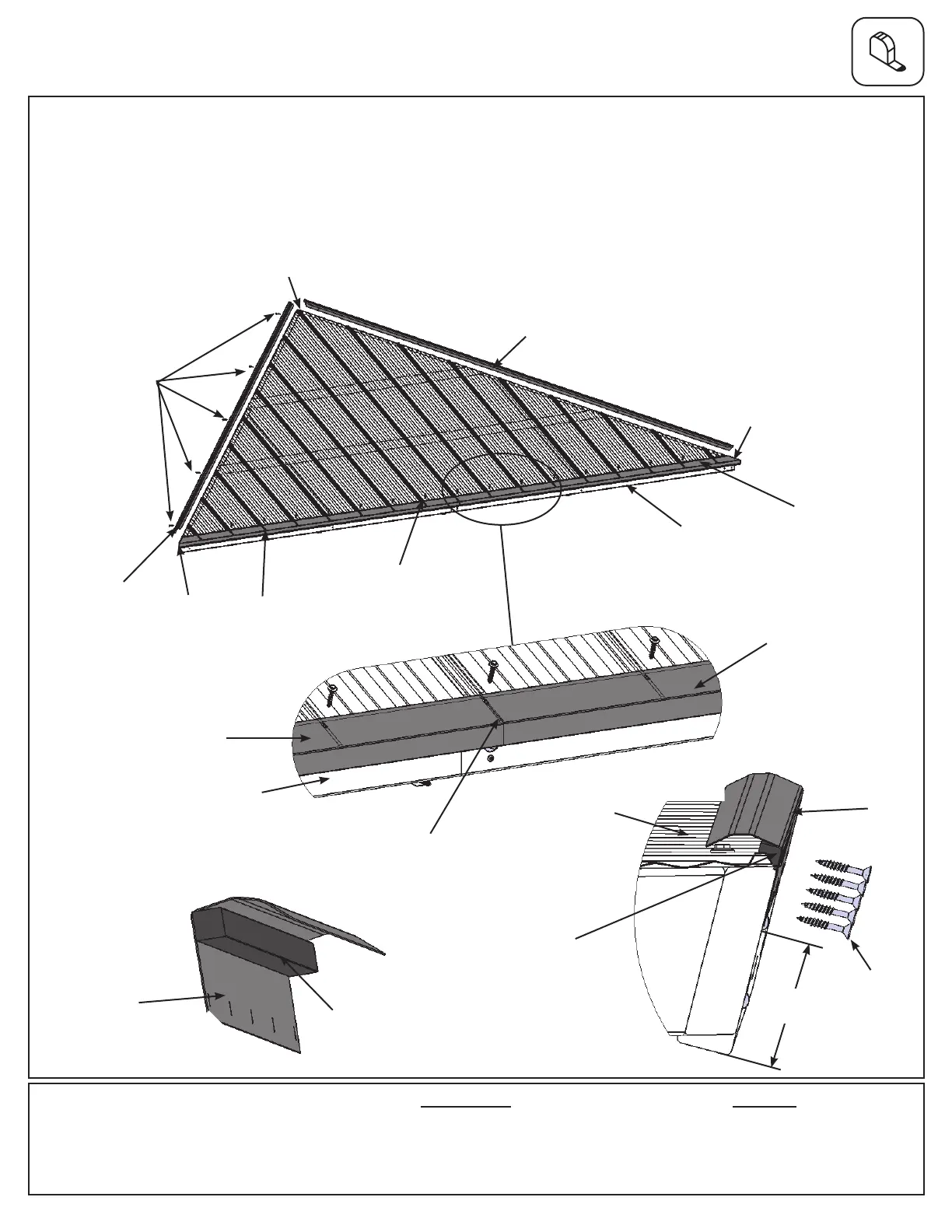

Step 13: Attach Ridge Clips and Roof Edges - Small Roof
Hardware
F13.1
34 x #8 x 1” Roong Screw
20 x #7 x 3/4” Wood Screw
A: Place one Roof Edge Left 72.2 and one Roof Edge Right 72.2 on the bottom of each Small Roof Rafter
Assembly so the ends are ush with the outside ends of the Fascia Beam Assembly and meet tight in the centre.
Attach both Roof Edges with 17 #8 x 1” Roong Screws per Small Roof Rafter assembly. (F13.1 and F13.2)
B: Place one Weather Seal on the inside of each Ridge Clip 102.5 then place one Ridge Clip 102.5 on each side
of each Small Roof Rafter Assembly so they cover the panels and bottom edge is 2-3/4” (6.99 cm) up from the
bottom of the Corner Rafters then attach with ve #7 x 3/4” Wood Screws per Ridge Clip 102.5. (F13.1, F13.3
and F13.4)
Weather
Seal
F13.2
#7 x 18 mm (3/4”)
Wood Screws (x 5
per side)
Panels
Components:
2 x Roof Edge Left 72.2
2 x Roof Edge Right 72.2
4 x Ridge Clip 102.5
4 x Weather Seal
Fascia Beam
Assembly
Flush
Flush
#8x 1” Roong
Screws (x 17)
Fascia Beam
Assembly
F13.3
Weather
Seal
Underneath,
Side View
F13.4
Side View
#7 x 3/4”
Wood Screw
(x 5 per side)
Flush
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Roof Edge
Left 72.2
Roof Edge
Right 72.2
Ridge Clip
102.5
Ridge Clip
102.5
Ridge Clip
102.5
Ridge
Clip
102.5
2-3/4”
6.99 cm
