Yardistry YM12978 - Step 8: Small Roof Rafter Assembly Part 1

25 support@yardistrystructures.com
A: On each side of one (440) Rafter place one (438) Rafter Corner Left and one (439) Rafter Corner Right so
the tops and edges are ush then attach with two #8 x 2-1/4” Wood Screws per side. (F8.1 and F8.2)
B: Place Fascia Beam Assembly from Step 7A on the bottom of (438) Rafter Corner Left, (439) Rafter Corner
Right and (440) Rafter so the sides are ush then attach with two #8 x 2-1/4” Wood Screws at each end and two
in the middle. (F8.1, F8.3 and F8.4)
C: Repeat Steps A and B to make a second Small Roof Rafter Assembly.
Hardware
Wood Parts
#8 x 2-1/4”
Wood Screws
(x 6 per
Fascia Beam
Assembly)
(440)
Rafter
Fascia Beam
Assembly

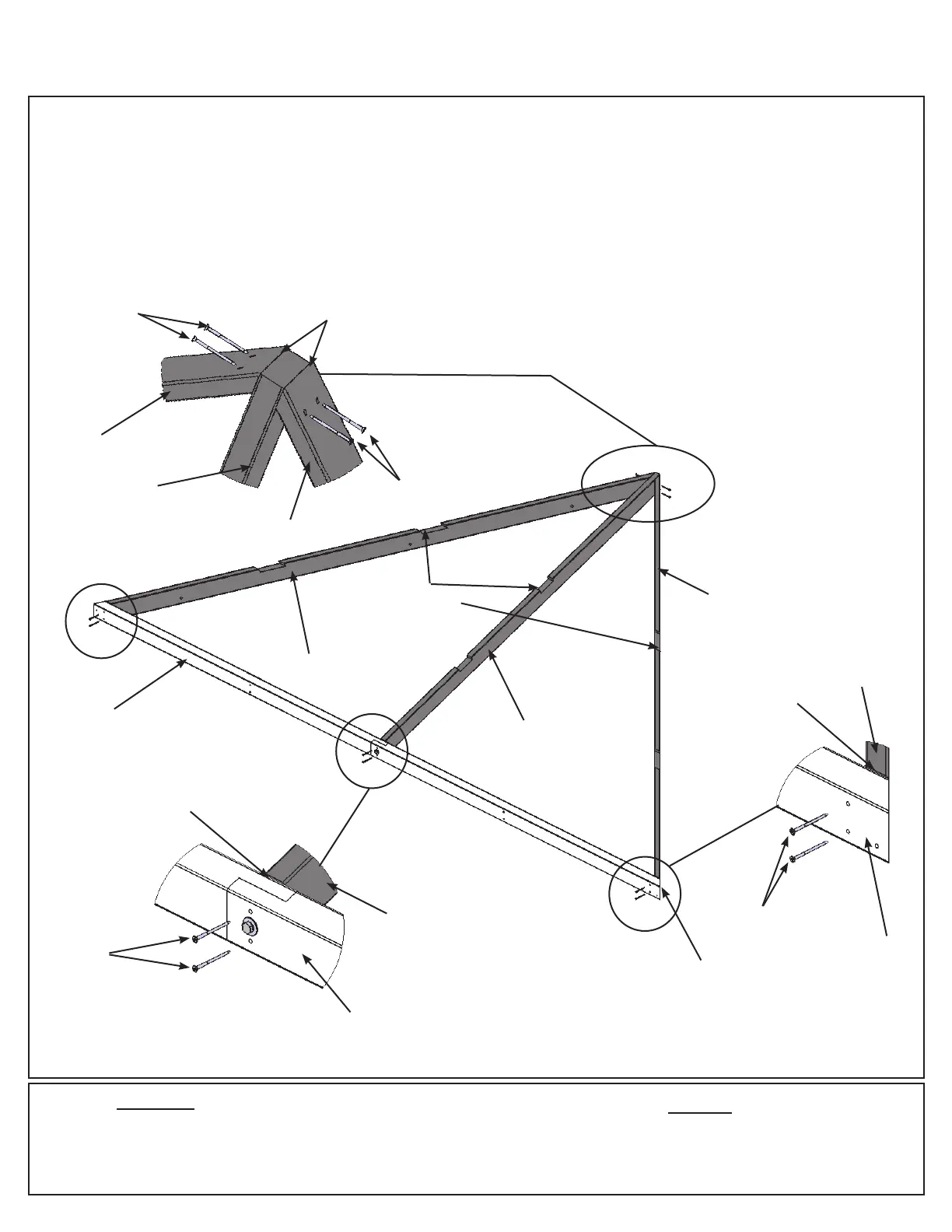

Step 8: Small Roof Rafter Assembly
Part 1
F8.1
20 x #8 x 2-1/4” Wood Screw
2 x (440) Rafter
2 x (438) Rafter Corner Left
2 x (439) Rafter Corner Right
F8.3
F8.4
Note notches
facing up
Flush
Fascia Beam
Assembly
Fascia Beam
Assembly
Flush
(440)
Rafter
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
Flush
F8.2
(438) Rafter
Corner Left
(438) Rafter
Corner Left
(439) Rafter
Corner Right
(439) Rafter
Corner Right
Note angle
side up
(440)
Rafter
(439) Rafter
Corner Right
#8 x 2-1/4”
Wood Screws
