Yardistry YM12978 - Attach Roof Peak to Roof Panels

46 support@yardistrystructures.com
Peak Cap
Long
Carriage Bolt
F18.3
Peak
Loop

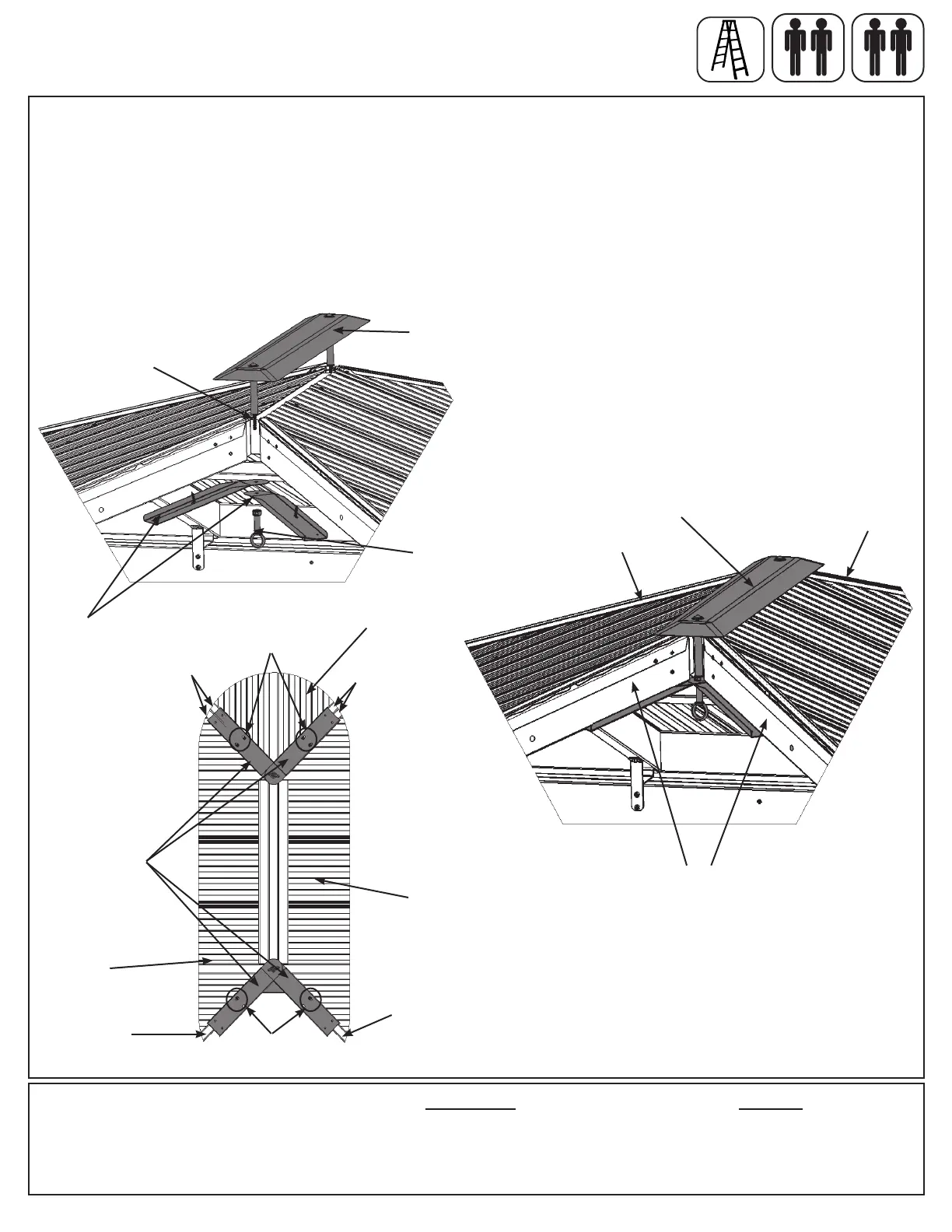

A: Insert Roof Peak Assembly in gap between Large and Small Roof Panels. Peak Cap Long to be lined up with
Rafter Corners. (F18.1 and F18.2)
B: Insert two Roof Peak Brackets through each Carriage Bolt and attach Peak Loop to Carriage Bolts then twist
to tighten loosely.
C: Loosely attach one set of Roof Peak Brackets to the Rafter Corners of the connected Large and Small Roof
Panels in the slotted holes with four #10 x 1-1/4” Pan Screws. On the second set of Roof Peak Brackets loosely
attach to the Rafter Corners of Large Roof Panels with two #10 x 1-1/4” Pan Screws. (F18.3)
F18.1
Roof
Peak
Bracket
Roof Peak
Assembly
Components:
4 x Roof Peak Brackets
Step 18: Attach Roof Peak to Roof Panels
x 3
Rafter
Corners
Rafter
Corners
Rafter
Corners
F18.2
Rafter
Corner
Roof
Peak
Bracket
#10 x 1-1/4” Pan
Screw x 4
Rafter
Corner
Rafter
Corner
Hardware
6 x #10 x 1-1/4” Pan Screw
Rafter
Corner
#10 x 1-1/4” Pan
Screw x 2
Large Roof
Panel Assembly
Small Roof
Panel Assembly
Large Roof
Panel Assembly
