A: From inside the Post Assemblies measure 4’ 11-3/16” (1.503m) to mark the centre of each Short Beam
Assembly. (F16.1)
B: With all four assemblers place Small Roof Panel Assembly with Roof to Beam Brackets just in front of the Posts
then raise it up so it is over Short Beam Assembly, taking care not to drag the panel on the beams. Make sure the
middle Roof to Beam Bracket lines up to the centre mark. (F16.1 and F16.2)

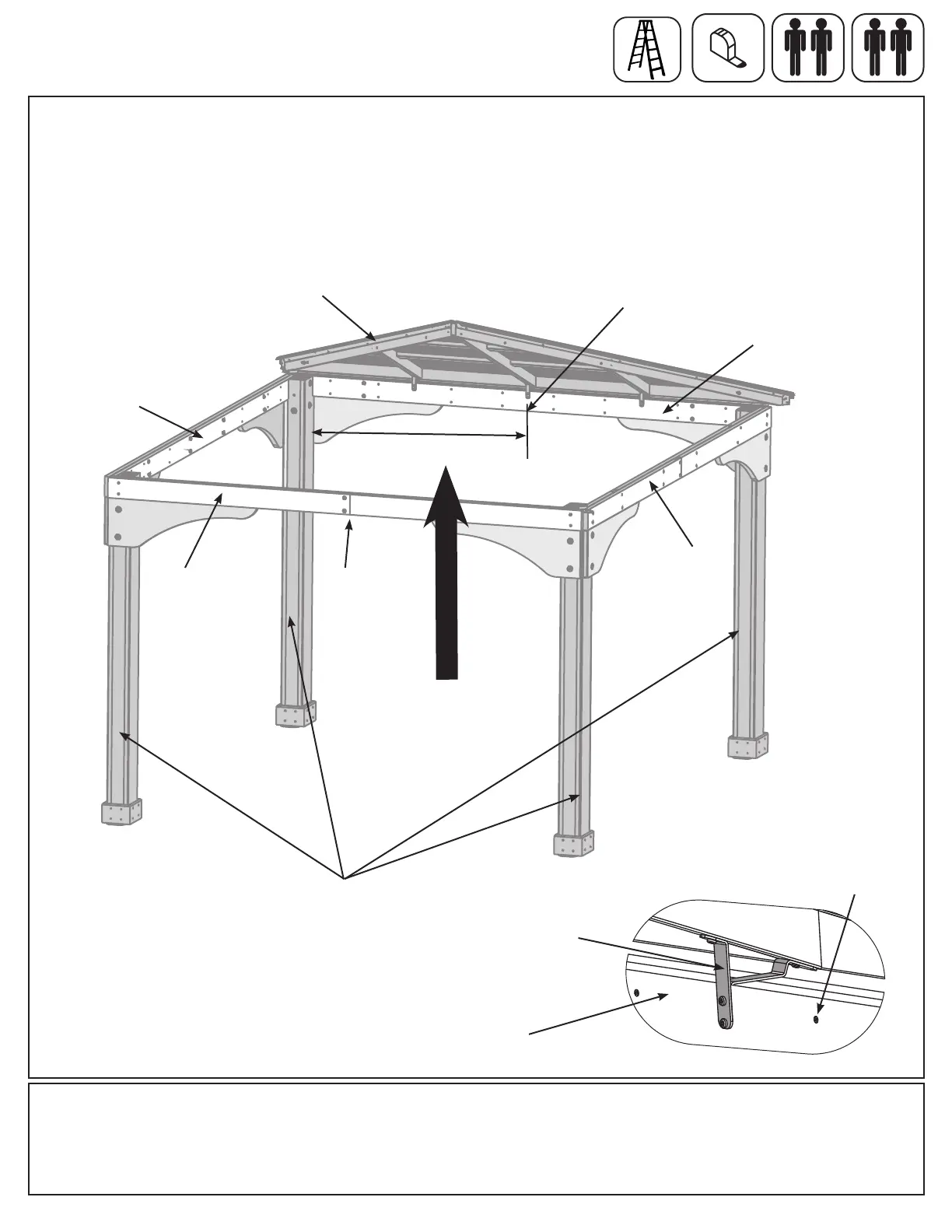

Step 16: Attach Roof Panels to Frame
Part 1
F16.1
In front of
Posts
Long Beam
Assembly
Post
Mark centre
location
Mark centre
location (from
inside the
frame)
x 3
Short Beam
Assembly
One assembler to
support roof panel(s) at
all times until secure
Short Beam
Assembly
Long Beam
Assembly
4’ 11-3/16”
1.503m
Small Roof Panel
Assembly
F16.2
Roof to
Beam
Bracket
Beam
Assembly
Line middle
bracket to
centre mark
To Next Page
