Yardistry YM12978 - Attach Roof to Beam Brackets

27 support@yardistrystructures.com
Note: Position the
Rafter/Beam bracket at a
dist. of 1-1/2" from the
fascia
1
.5
0
Note: Position the
Rafter/Beam bracket at a
dist. of 1-1/2" from the
fascia
1
.5
0
Hardware
#8 x 1” Pan
Screw
Roof to Beam
Bracket
F9.1
F9.2

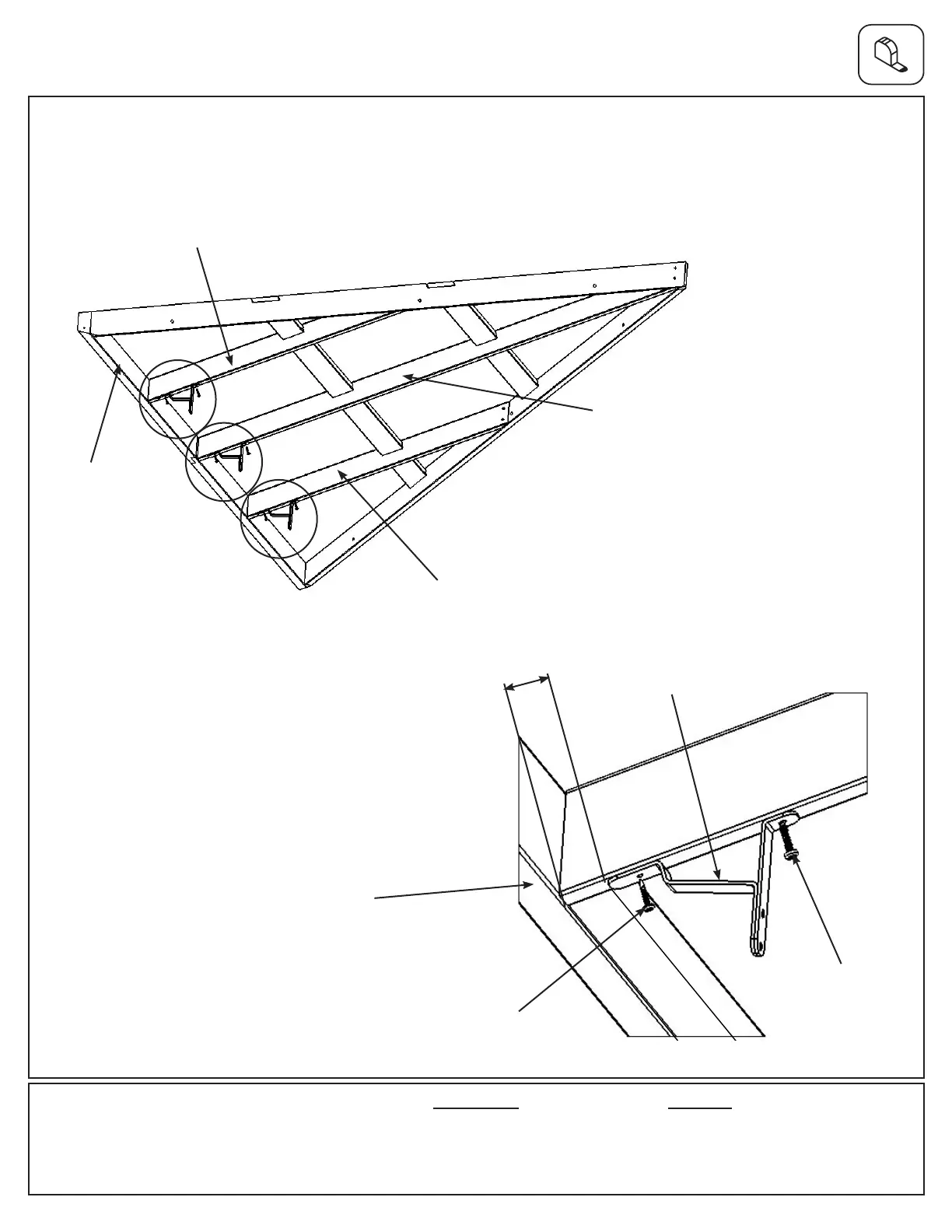

A: On the Back of one Small Roof Rafter Assembly, centred and 1-1/2” (3.81 cm) from the bottom of (442) Rafter
Short Right, (441) Rafter Short Left and (440) Rafter attach one Roof to Beam Bracket per board with one #8 x
1” Pan Screw in the bottom hole and one #12 x 1-1/2” Pan Screw in the top hole per bracket. Make sure to only
install on one Small Roof Rafter Assembly, the second will not have brackets. (F9.1 and F9.2)
Step 9: Attach Roof to Beam Brackets
- Small Roof Rafter Assembly
3 x #8 x 1” Pan Screw
3 x #12 x 1-1/2” Pan Screw
Back View
(440)
Rafter
(441) Rafter
Short Left
(442) Rafter
Short Right
Fascia Beam
Assembly
Fascia Beam
Assembly
#12 x 1-1/2”
Pan Screw
3 x Roof to Beam Bracket
Components
3.81 cm
1-1/2”
