A: Attach one Tie Wrap Bracket to each end
of one (461) Tie with one #10 x 1-1/4” Pan
Screw per bracket using the inside holes.
(461) Tie is tight to end of bracket. (F25.1,
F25.2 and F25.3)
B: With a helper place (461) Tie with
brackets against a (440) Rafter on each
Large Roof Panel so (461) Tie is tight to
(440) Rafters and level. Attach Tie Wrap
Bracket to (440) Rafters with two #10 x
1-1/4” Pan Screws on both sides of each
bracket (F25.1, F25.2 and F25.3)
C: Pre-drill with a 1/8” drill bit and secure
Tie Wrap Brackets to (461) Tie and (440)
Rafter with one #10 x 2-1/2” Pan Screw per
bracket. (F25.1, F25.2 and F25.3)
D: Repeat Steps A to C for a second (461)
Tie.
Components:
4 x Tie Wrap Bracket
Wood Parts
2 x (461) Tie
Hardware
20 x #10 x 1-1/4” Pan Screw
4 x #10 x 2-1/2” Pan Screw

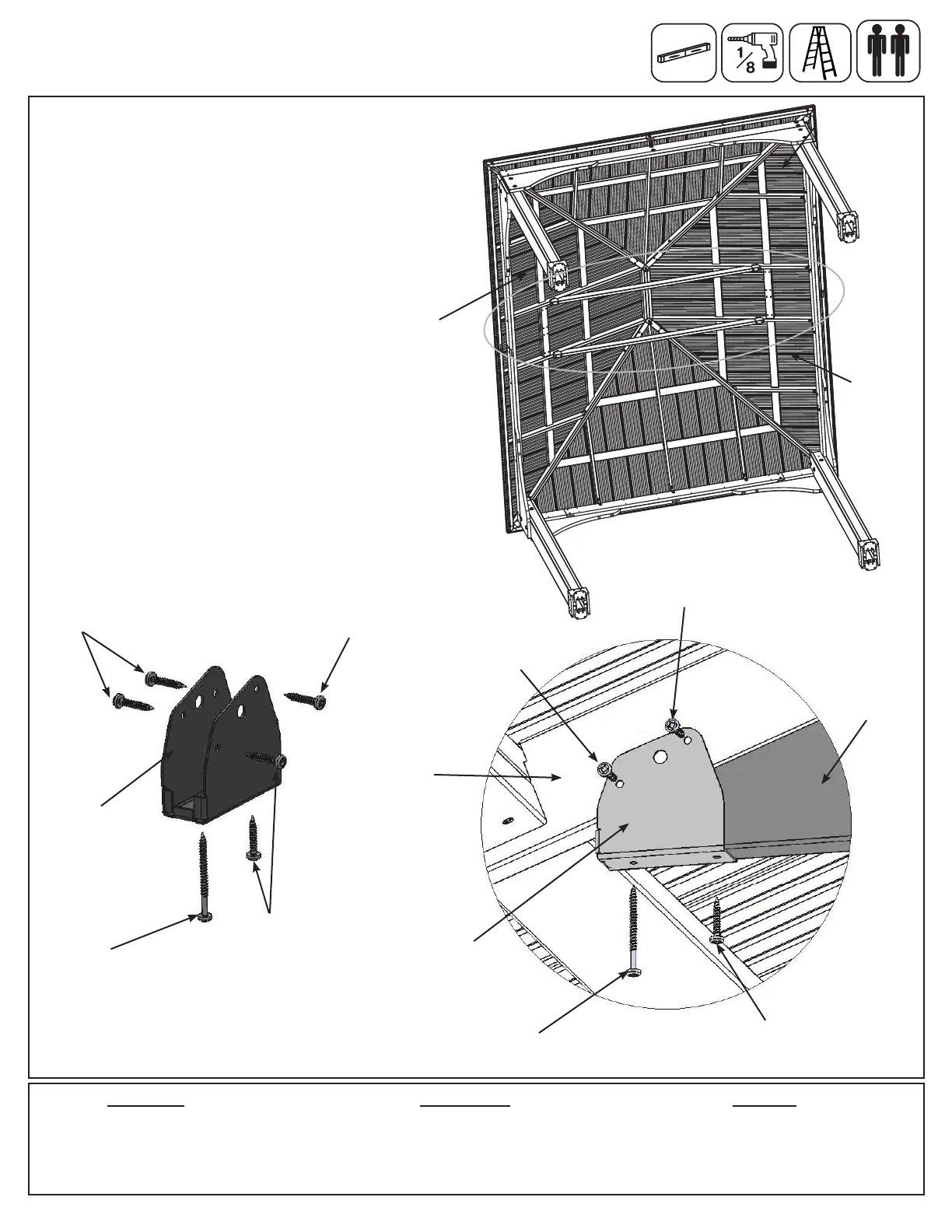

F25.1
#10 x 1-1/4”
Pan Screw
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
(461) Tie
(440)
Rafter
Tie Wrap
Bracket
Step 25: Attach Tie Wrap Brackets and Ties
F25.2
F25.3
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
Tie Wrap
Bracket
#10 x 2-1/2”
Pan Screw
Large Roof
Panel
Large Roof
Panel
