4- Rafter/Post Bracket -
Y00429-350
8- #10 x 1-1/4" Pan Screw
4- Rafter/Post Bracket -
Y00429-350
8- #10 x 1-1/4" Pan Screw

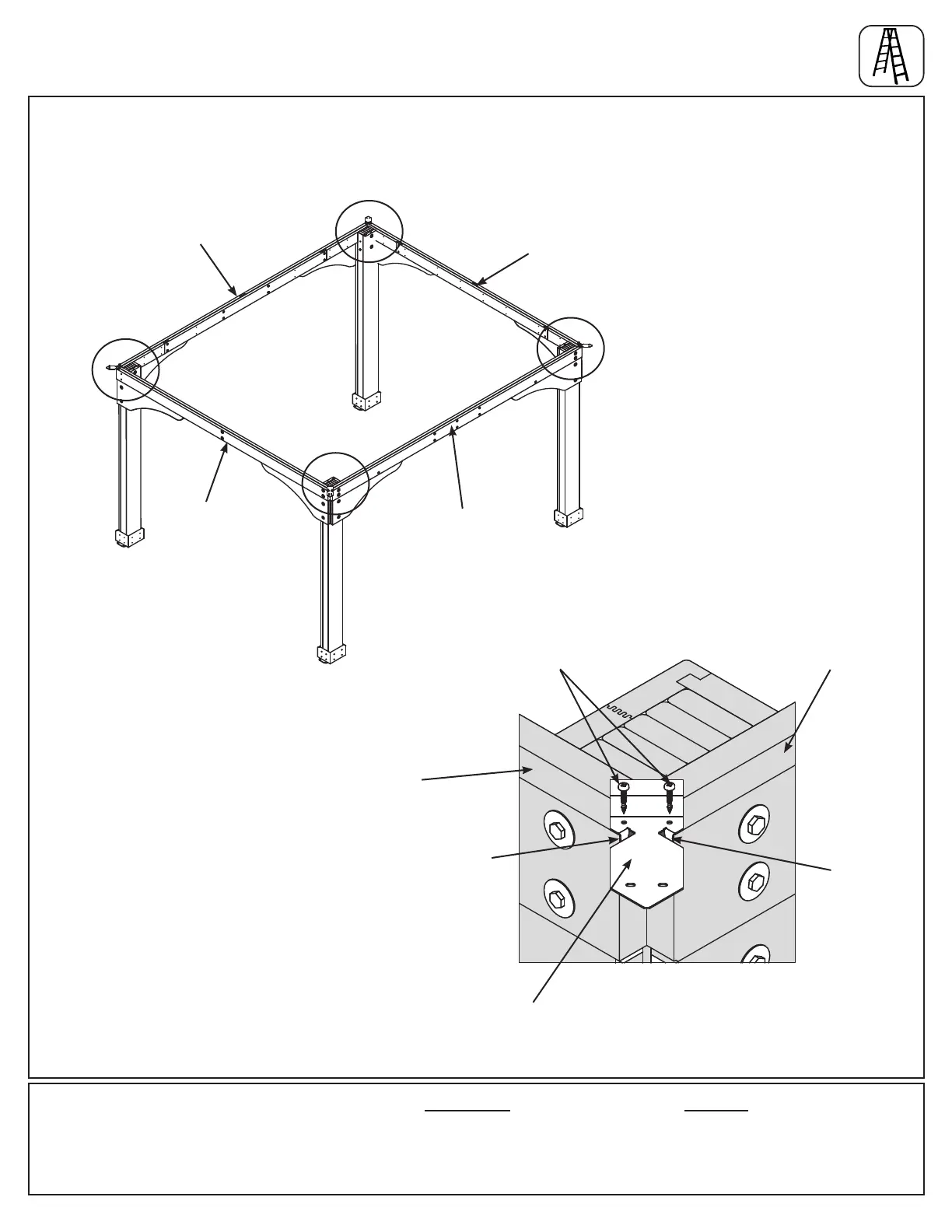

A: At each corner, tight to the outside edges of the joining Beam Assemblies attach one Rafter to Post
Bracket with two #8 x 1” Pan Screws. (F6.1 and F6.2)
Step 6: Attach Roof Brackets
F6.1
Hardware
8 x #8 x 1” Pan Screw
F6.2
Rafter to Post
Bracket
#8 x 1” Pan
Screw
Short Beam
Assembly
Long Beam
Assembly
4 x Rafter to Post Bracket
Components
Short Beam
Assembly
Long Beam
Assembly
Short Beam
Assembly
Long Beam
Assembly
Tight
Tight
