16- 5/16 x 4-3/4" Lag Screw
(5/16 Large Washer)
8- 5/16 x 3" Lag Screw (5/16
Flat Washer)
F5.10

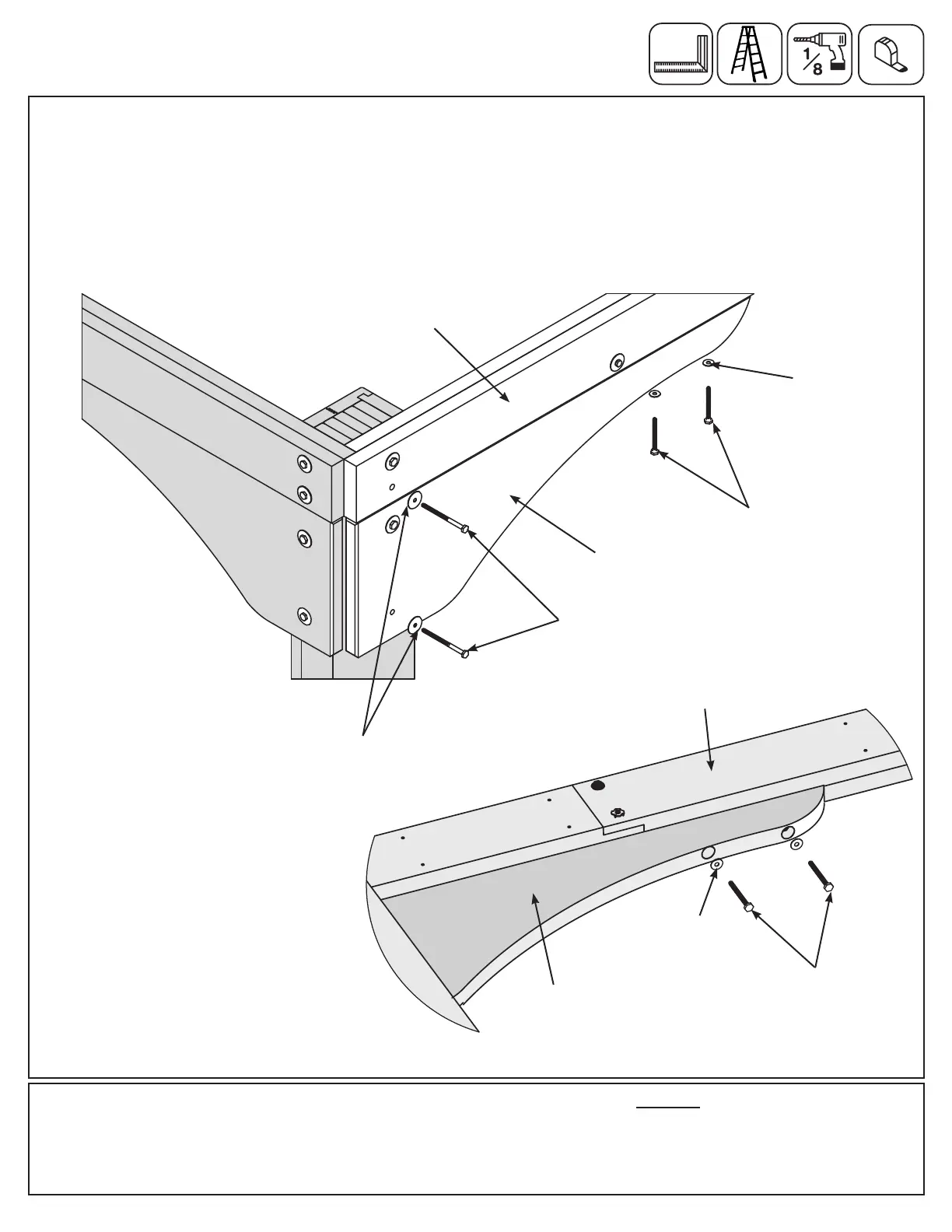

I: Make sure Long Beam Assembly is square to Posts then pre-drill with a 1/8” drill bit in the bottom holes of
each Long Beam Assembly and (1049) Arched Gusset then attach with two 5/16 x 4” Lag Screws (with 1/4-
5/16” large washer) per post. (F5.10)
J: Pre-drill with a 1/8” drill bit then attach each (1049) Arched Gusset to Long Beam Assembly with two 5/16 x
3” Lag Screws (with 5/16” at washer) per gusset. (F5.10 and F5.11)
Hardware
Long Beam
Assembly
8 x 5/16 x 4” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3” Lag Screw (5/16” at washer)
5/16 x 4”
Lag Screw
1/4-5/16”
Large Washer
5/16 x 3”
Lag Screw
5/16” Flat
Washer
(1049)
Arched
Gusset
Long Beam
Assembly
F5.11
(1049)
Arched
Gusset
5/16 x 3”
Lag Screw
5/16” Flat
Washer
Step 5: Frame Assembly
Part 4 - Long Side
