Yardistry YM12978 - Step 5: Frame Assembly Part 3 - Long Side

21 support@yardistrystructures.com
F: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.

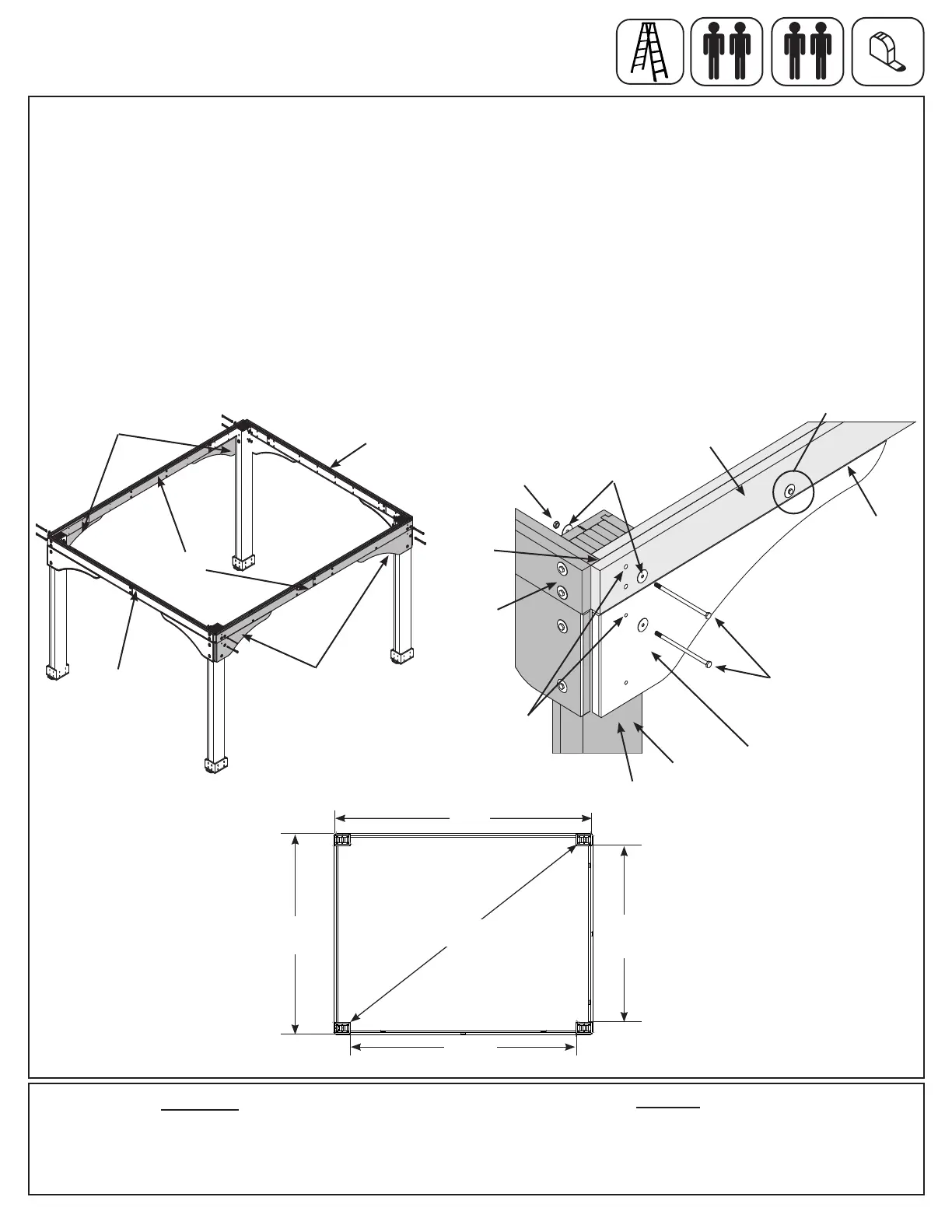

G: Stand each Short Side Assembly then place one Long Beam Assembly against the long sides of each post,
ush to the tops tight to the Short Side Assemblies. Notice bolt heads on the Long Beam Assembly are towards
the bottom. Attach Long Beam Assemblies to each post with one 3/8 x 8” Hex Bolt (with two 3/8” large washers
and one 3/8” lock nut) per post in the top holes. The distance from the outside of one Post to the outside of the
second Post should be 12’ 10-3/8” (3.921m). (F5.7 and F5.8) Check F5.9 for accurate positioning of Posts.
H: At each end of each Long Beam Assembly place one (1049) Arched Gusset, tight to the bottom of the beam.
Attach gussets, in the top holes, with one 3/8 x 8” Hex Bolt (with two 3/8” large washers and one 3/8” lock nut)
per post. (F5.7 and F5.8)
2- Long Beam Assemblies
4- Arched Gusset -(Y70000-1049)
8- 3/8 x 8" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
4- 5/16 x 3" Lag Screw (5/16 Washer)
F5.7
F5.8
Hardware
8 x 3/8 x 8” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
3/8 x 8”
Hex Bolt
Long Beam
Assembly
Short Side
Assembly
Short Side
Assembly
3/8” Large
Washer
3/8” Lock
Nut
Long Side
Note bolt head
orientation (on
bottom)
x 3
Step 5: Frame Assembly
Part 3 - Long Side
Wood Parts
4 x (1049) Arched Gusset
Short Side
Assembly
(1049) Arched
Gusset
(1049) Arched
Gusset
Use
these
holes
Long Beam
Assembly
Post
(1049)
Arched
Gusset
Tight
Tight
F5.9
YM12978 - 12 x 14 Grand
Plinth to Plinth
9'-11
"
13'-1"
1
"
4
Post to Post
1
5'
-
6
"
Post to Post
Plinth to Plinth
11'-7
1
4
11'-1"
Post to Post
10’ 10-3/8”
Post to Post
12’ 10-3/8”
9’ 10-3/8”
Inside Post to
Inside Post
15’ 2-1/8”
Post to Post
11’ 6-3/8”
4.626 m
3.921 m
3.515 m
3.007 m
3.312 m
Inside Post to
Inside Post
Post to Post
