20 support@yardistrystructures.com
F5.4

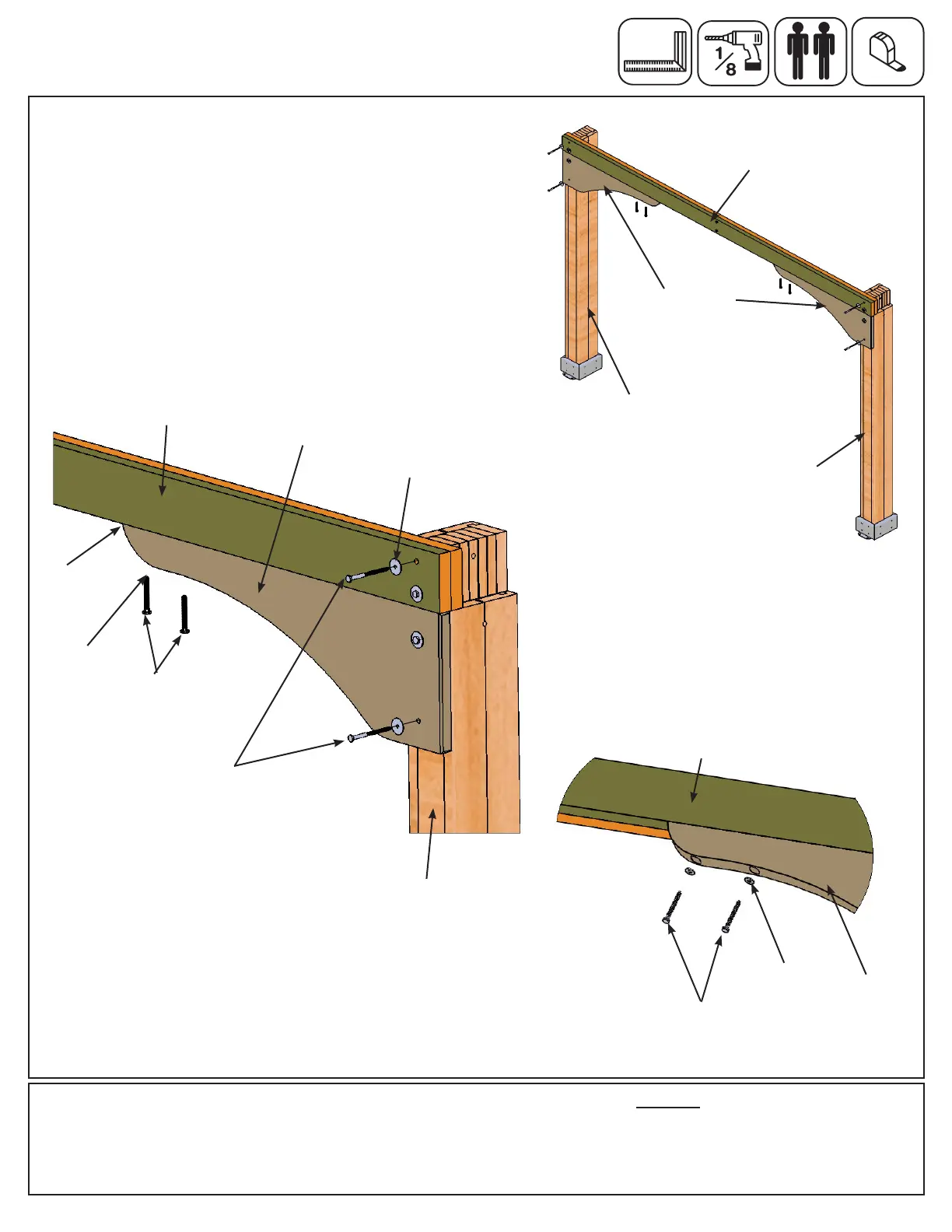

C: Make sure Short Beam Assembly is square to Posts then
pre-drill with a 1/8” drill bit in the top holes of each Short Beam
Assembly and bottom hole of (1053) Arched Gusset Short,
then attach with two 5/16 x 4” Lag Screws (with 1/4-5/16” large
washer) per end. Tighten all bolts. (F5.4 and F5.5)
D: Pre-drill with a 1/8” drill bit then attach each (1053) Arched
Gusset Short to Short Beam Assembly with two 5/16 x 3” Lag
Screws (with 5/16” at washer) per gusset. (F5.4, F5.5 and
F5.6)
E: Repeat Step A-D make a second Short Side Assembly.
F5.6
Hardware
8 x 5/16 x 3” Lag Screw (5/16” at washer)
8 x 5/16 x 4” Lag Screw (1/4-5/16” large washer)
(1053) Arched
Gusset Short
Short Beam
Assembly
Post
Post Right
Assembly
Post Left
Assembly
Short Beam
Assembly
Short Beam
Assembly
Short Side
Step 5: Frame Assembly
Part 2 - Short Side
F5.5
(1053) Arched
Gusset Short
5/16 x 3”
Lag Screw
5/16 x 3”
Lag Screw
(1053) Arched
Gusset Short
Tight
5/16” Flat
Washer
1/4-5/16”
Large Washer
5/16 x 4”
Lag Screw
5/16” Flat
Washer
