Yardistry YM12978 - Fascia Beam Assemblies

24 support@yardistrystructures.com

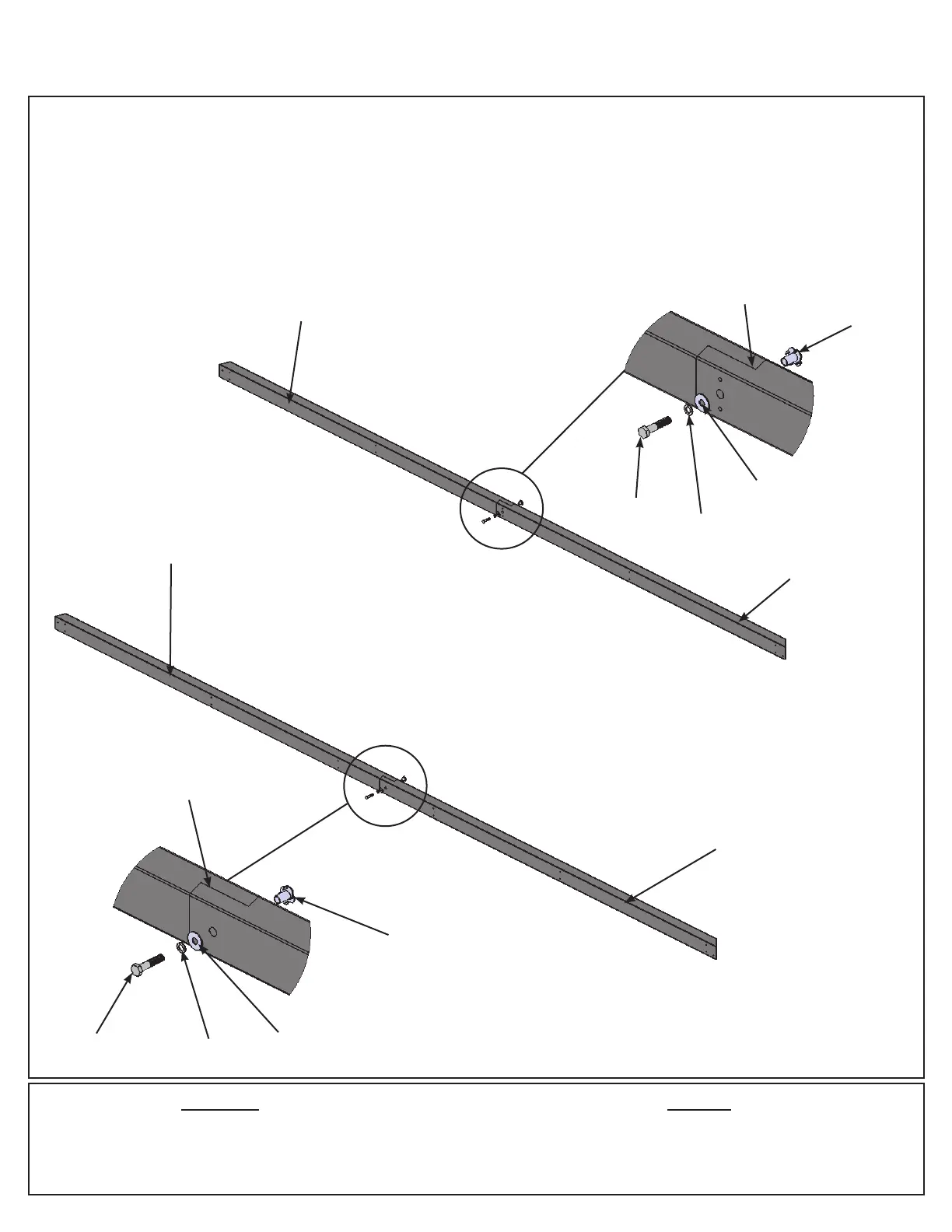

A: Tightly connect one (443) Fascia Left and one (444) Fascia Right using one 5/16 x 1-1/2” Hex Bolt (with
5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F7.1 and F7.2. Repeat to make a second
Fascia Beam Assembly.
B: Tightly connect one (435) Fascia Left - Large Roof and one (436) Fascia Right - Large Roof using one 5/16
x 1-1/2” Hex Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F7.3 and F7.4.
Repeat to make a second Large Fascia Beam Assembly.
Step 7: Fascia Beam Assemblies
F7.1
F7.2
HardwareWood Parts
2 x (443) Fascia Left
2 x (444) Fascia Right
2 x (435) Fascia Left - Large Roof
2 x (436) Fascia Right - Large Roof
4 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(444) Fascia
Right
(443) Fascia
Left
(436) Fascia Right
- Large Roof
5/16”
T-nut
5/16 x 1-1/2”
Hex Bolt
Tight
F7.3
F7.4
5/16” Lock
Washer
(435) Fascia Left
- Large Roof
5/16”
T-nut
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer
