14 support@yardistrystructures.com
8- 6 x 8 Post -(1035)
8- Plinth Long(1048)
8- Plinth (458)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)
8- 6 x 8 Post -(1035)
8- Plinth Long(1048)
8- Plinth (458)
8- 5/16 x 1-1/4" Hex Bolts
16 - #10 x 1-1/4" Pan screws
80 - #8 x 1-1/2" W.S
8- Post Mounts - (190)

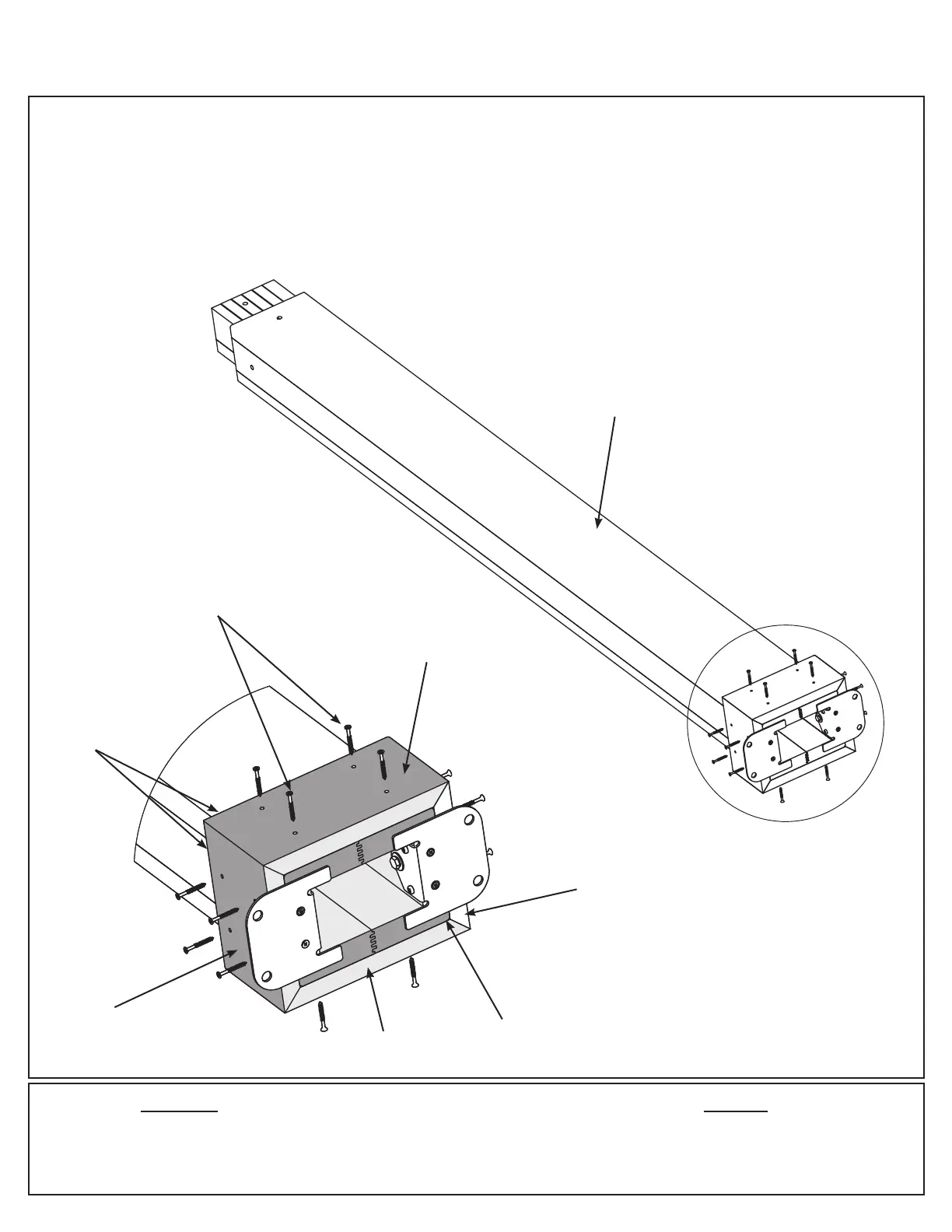

C: Flush to the bottom of (1035) 6 x 8 Post Left Side place one (1048) Plinth Long on each long side and one
(459) Plinth on each short side then attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top.
(F2.3 and F2.4)
D: Repeat Steps A - C one more time to make two Post Left Assemblies.
E: Repeat Steps A - C twice more using (1036) 6 x 8 Post Right Sides to make two Post Right Assemblies.
Wood Parts
8 x (459) Plinth
8 x (1048) Plinth Long
Hardware
64 x #8 x 1-1/2” Wood Screw
Step 2: Post Assemblies
Part 2
F2.3
F2.4
Rounded
Edge on
Top
(459)
Plinth
(459)
Plinth
(1048) Plinth
Long
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
(1048) Plinth
Long
(1035) 6 x 8 Post Left Side /
(1036) 6 x 8 Post Right Side
Flush
