16 support@yardistrystructures.com
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
2- Short Beam Centre -(1042)
4- Beam Short End (1043)
4- Beam Short (1044)
12- 5/16 x 1-1/2" Hex Bolts
(Flat,Lock Washers, T-nuts)
36 - #8 x 2-1/2" W.S
Hardware
36 x #8 x 2-1/2” Wood Screw
F3.3
Short Beam
End Assembly
F3.4
Beam Short
Assembly

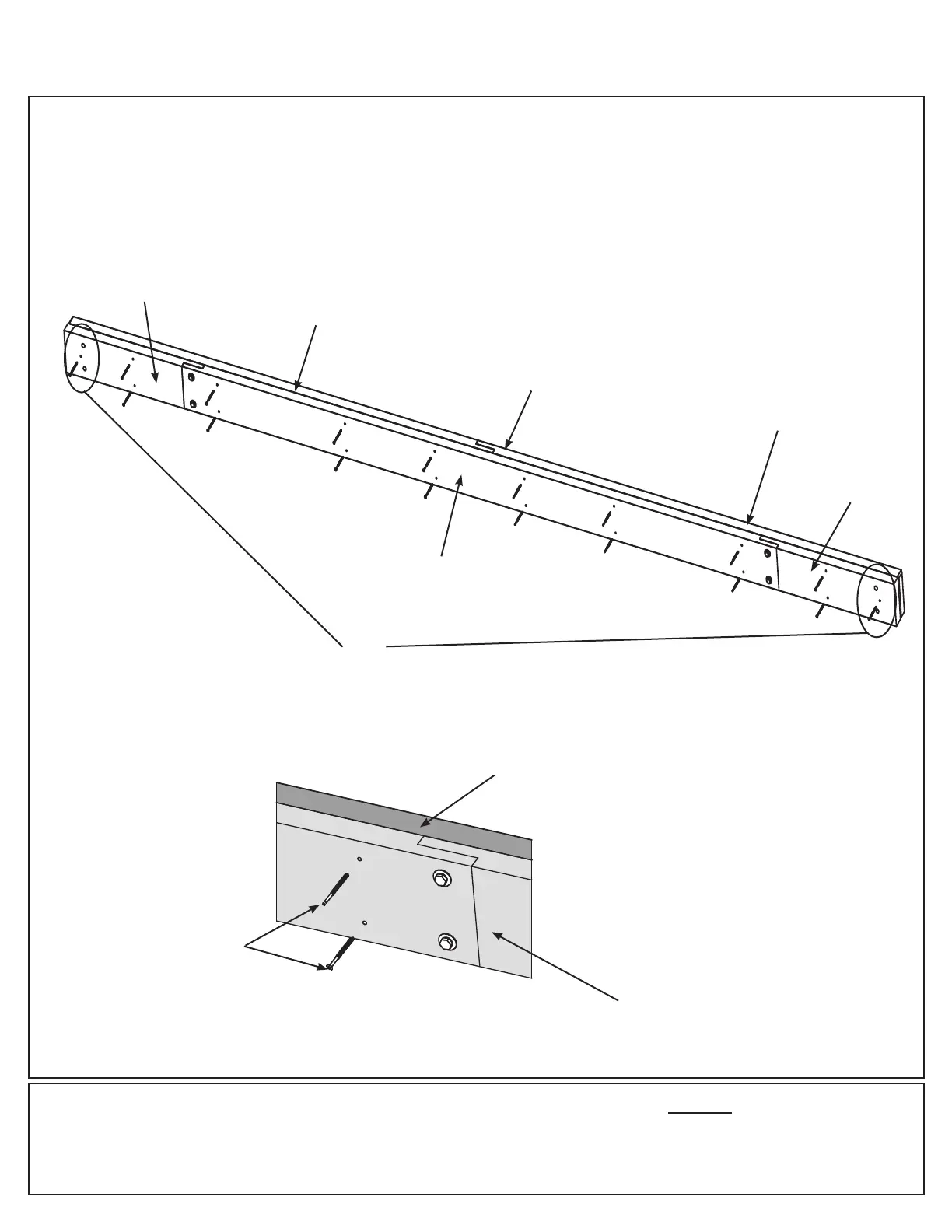

D: Place one Beam Short Assembly tight to one Short Beam End Assembly. Match the bolt holes in each (1043)
Beam Short End with the bolt holes in each (1044) Beam Short. Attach with 18 #8 x 2-1/2” Wood Screws. (F3.3
and F3.4)
E: Repeat Step D one more time to make two Short Beam Assemblies.
Short Beam
End Assembly
Beam Short
Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
Match
bolt
holes
Step 3: Short Beam Assembly
Part 2
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(1044)
Beam Short
(1043) Beam
Short End
(1044)
Beam Short
(1043) Beam
Short End
