31 support@yardistrystructures.com
Step 10: Large Roof Rafter Assembly
Part 4
2 x (433) Strap Brace

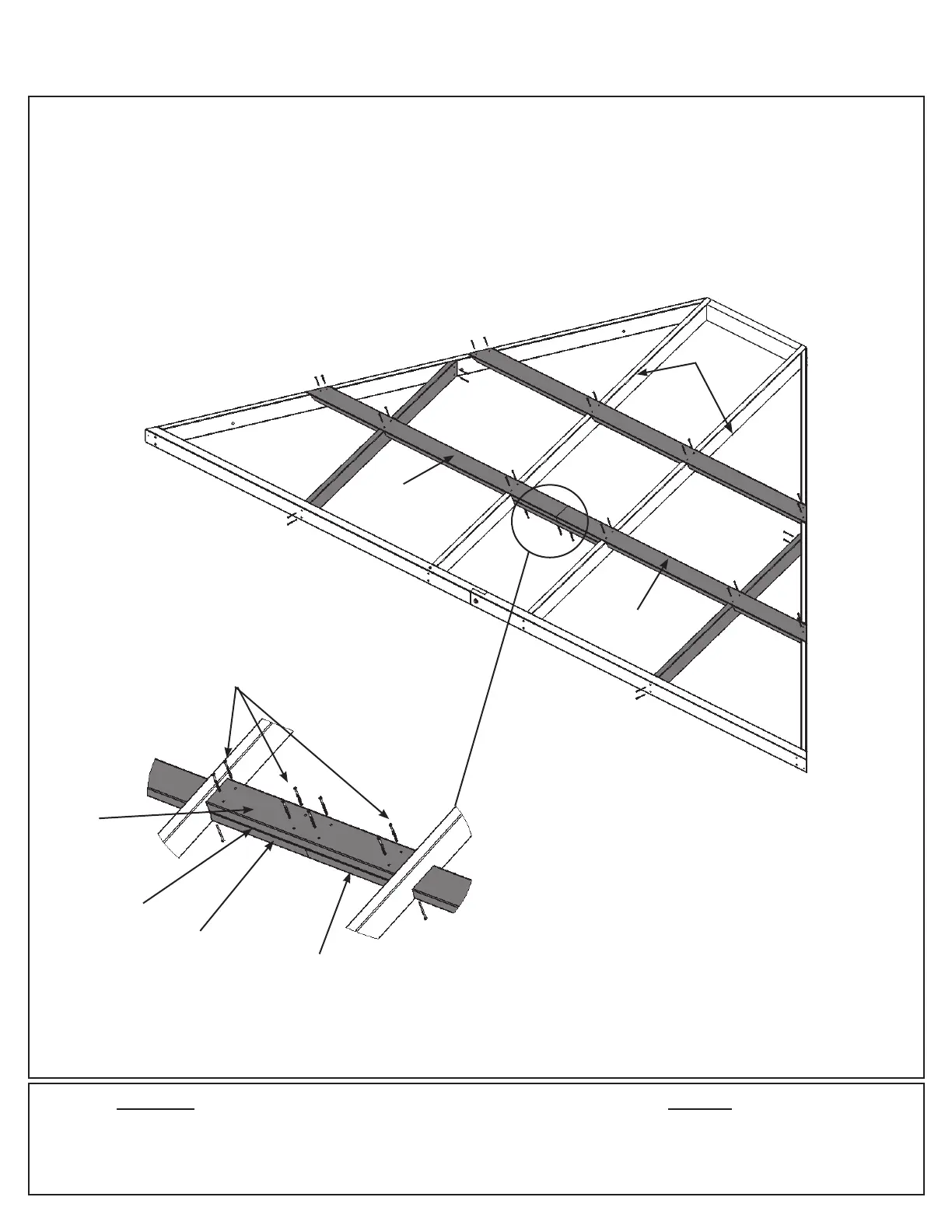

J: Turn Large Roof Rafter Assembly over then attach one (433) Strap Brace to (431) Strap Left - Large Roof
and (432) Strap Right - Large Roof with eight #8 x 2-1/4” Wood Screws. Edges are ush. (F10.8 and F10.9)
K: Complete Steps F - J for both Large Roof Rafter Assemblies.
HardwareWood Parts
16 x #8 x 2-1/4” Wood Screw
Front View
Back View
F10.8
F10.9
Flush
#8 x 2-1/4” Wood
Screws x 8
(431) Strap Left
- Large Roof
(440)
Rafter
(432) Strap Right
- Large Roof
(431) Strap Left
- Large Roof
(432) Strap Right
- Large Roof
(433) Strap
Brace
