49 support@yardistrystructures.com

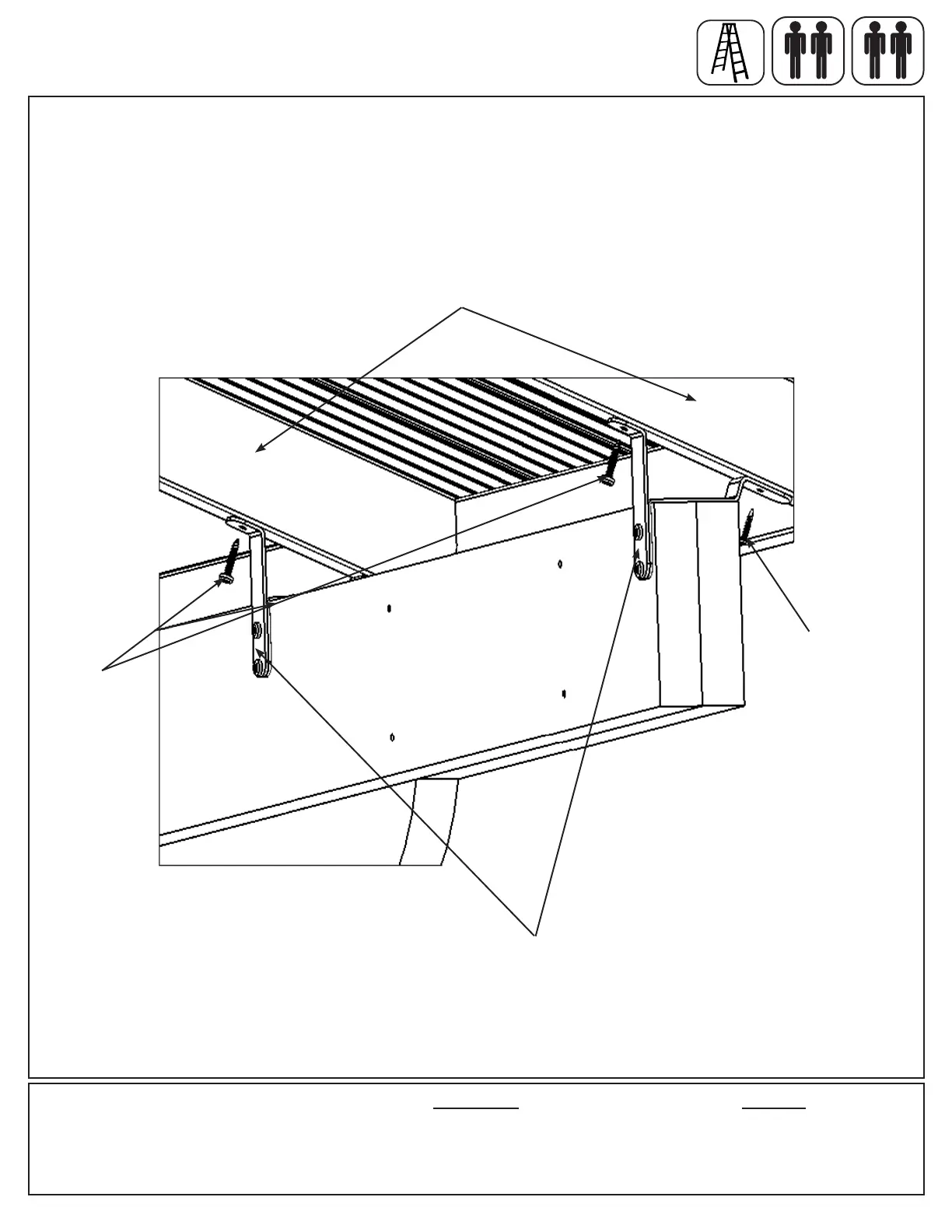

C: On the Small Roof Rafter Assembly just installed, centred on the bottom of (442) Rafter Short Right, (441)
Rafter Short Left and (440) Rafter attach one Roof to Beam Bracket per board with one #8 x 1” Pan Screw in the
bottom hole and one #12 x 1-1/2” Pan Screw in the top hole per bracket. (F19.5)
x 3
F19.5
Roof to
Beam
Bracket
#12 x 1-1/2”
Pan Screw
(x3)
Attach to Rafter Short Right,
Rafter Short Left and Rafters
#8 x 1”
Pan Screw
(x3)
Hardware
3 x #8 x 1” Pan Screw
3 x #12 x 1-1/2” Pan Screw
Step 19: Attach Final Roof Panel
Part 3
3 x Roof to Beam Bracket
Components
